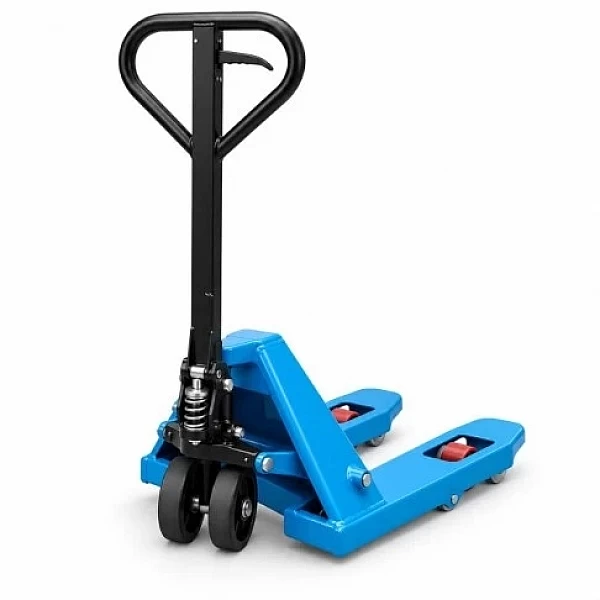

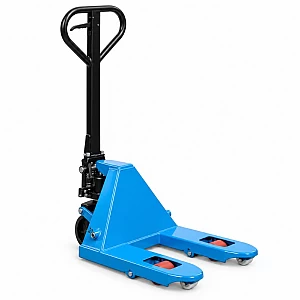

HanseLifter DB700 2-metric-ton Manual Pallet Truck

HanseLifter DB700 2-metric-ton Manual Pallet Truck

Country of origin: Germany; warranty period: 24 months

The HanseLifter DB700 is a professional, compact manual pallet jack designed for the daily lifting and transport of pallets in warehouses, retail locations, manufacturing facilities, logistics centers, and loading zones. Thanks to its shorter, 700 mm-long forks, the pallet jack is ideal for working in narrow aisles and confined spaces where standard-sized pallet jacks are impractical to use. Despite its compact design, its 2,000 kg lifting capacity allows for the reliable transport of heavy and small-sized loads. A sturdy steel frame, an ergonomic control handle, and durable polyurethane wheels ensure smooth, comfortable, and efficient operation even under heavy use.

Technical Specifications:

• Lifting capacity: 2,000 kg
• Drive type: manual
• Load center distance: 350 mm
• Load height: 420 mm
• Wheelbase: 750 mm
• Fork length: 700 mm
• Fork dimensions: 50 × 160 × 700 mm
• Outer fork width: 520 mm
• Maximum fork lift height: 190 mm
• Minimum fork height: 75 mm
• Fork lift stroke: 115 mm
• Frame length without forks: 375 mm
• Front wheel size: 160 × 50 mm
• Rear wheel size: 80 × 70 mm
• Number of wheels, front/rear: 2 / 2
• Front track width: 110 mm
• Rear track width: 385 mm
• Ground clearance at the center of the wheelbase: 25 mm
• Turning radius: 965 mm
• Number of lever movements to raise the forks to maximum height: approx. 15
• Lowering speed with/without load: 90 / 20 mm/s
• Caster material: polyurethane (PU)
• Fork casters: single
• Control: manual hydraulic

The HanseLifter DB700 2-metric-ton is the right choice for companies that need a reliable, compact pallet truck designed for intensive daily use. Shorter forks, high lifting capacity, a small turning radius, and durable polyurethane wheels allow for efficient transport of loads even in confined spaces. Its sturdy construction, reliable hydraulic system, and user-friendly controls ensure smooth, efficient, and long-lasting operation in warehouses, retail locations, and logistics centers.
