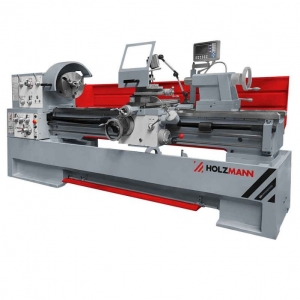

Metal lathe Holzmann ED2000IND105

Metal Lathe Holzmann ED2000IND105

Country of origin: Austria, warranty period – 24 months

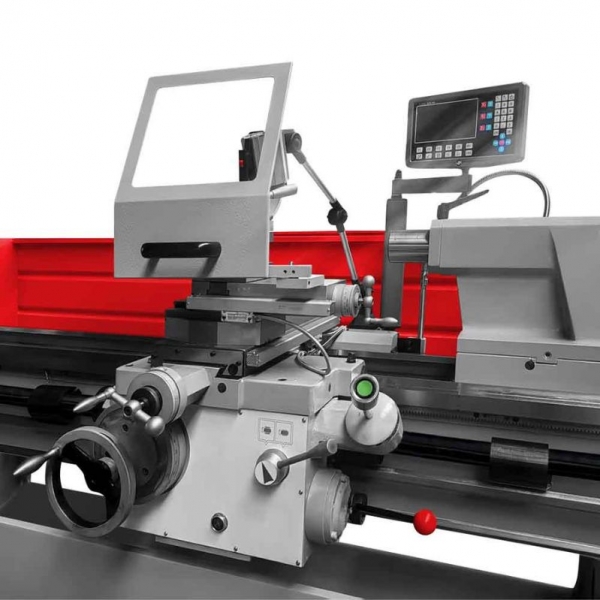

Industrial-design engine lathe with 2000 mm distance between centers and a 105 mm spindle bore, intended for precise and reliable work in manufacturing, service shops, and educational institutions. The one-piece cast iron machine base construction dampens vibrations and ensures high accuracy, while the 3-axis digital readout (DRO), coolant system, rapid traverse, and electromagnetic foot brake provide extra productivity and safety in daily use.

Functions:

• Massive one-piece cast iron construction for high accuracy and vibration damping
• Wide-profile, induction-hardened and precision-ground prismatic guideways
• Clear control panel for convenient, intuitive operation
• Removable gap bridge for machining larger diameters
• Four-position automatic longitudinal feed stop
• All guideways adjustable via V-ways
• Spindle mount CAMLOCK D8 (DIN 55029)
• Tailstock offset for taper turning
• Hardened and ground gears and shafts running in an oil bath
• Large 105 mm spindle bore for long bar stock
• Electromagnetic foot brake for safe stopping and reduced downtime
• Wide range of metric and imperial thread pitches
• Halogen work lamp and coolant system included as standard
• 3-axis DRO for precise positioning
• Rapid traverse drive (300 W) for faster repositioning
• Extensive standard accessories for operation from day one

Technical specifications:

• Distance between centers: 2000 mm
• Center height: 280 mm
• Max swing over bed: 560 mm
• Max swing over cross slide: 355 mm
• Max swing in gap: 785 mm
• Spindle speeds: 25–1600 rpm (12 steps)
• Spindle bore: 105 mm
• Spindle taper: MT7
• Tailstock taper: MT5
• Longitudinal feed: 0.059–1.646 mm/rev (35)
• Cross feed: 0.02–0.573 mm/rev (35)
• Carriage travel: 2000 mm
• Cross slide travel: 316 mm
• Compound slide travel: 130 mm
• Tailstock quill travel: 180 mm
• Metric threads: 0.2–14 mm (47)
• Imperial threads: 2–112 TPI (60)
• Max tool shank size: 25 × 25 mm
• Sound power level (LWA): 83 dB(A)
• Motors: main 7.5 kW (S1), pump ~90 W, rapid traverse 300 W
• Power supply: 400 V / 50 Hz
• Overall dimensions (L × W × H): 3340 × 1150 × 1460 mm
• Net weight: 2720 kg
• Gross weight: 3100 kg
• Packaging dimensions (W × L × H): 1150 × 3420 × 1810 mm
• Safety equipment: electromagnetic foot brake, splash guard
• Mounting/standards: CAMLOCK D8, DIN 55029

Operating fluids:

• Headstock oil 12 l
• Gearbox housing oil ~1 l
• Feed gear oil 4.5 l
• Coolant up to 33 l (e.g., HOLZMANN KSM5)

Scope of delivery:

• Coolant system
• Work lamp
• 3-jaw chuck 315 mm
• 4-jaw chuck 320 mm
• Faceplate 450 mm
• Reduction sleeve
• Change gears
• Follow rest
• Steady rest
• Four-way tool post, 2 dead centers, splash guard
• 3-axis digital position display

These lathes are built for long-term accuracy and productivity: the stable cast iron base, large spindle bore, and wide range of threads and feeds enable confident machining of both large and complex parts.
