- Metal Lathe with 3-Axis Digital Readout (DRO) ED1500KDIG

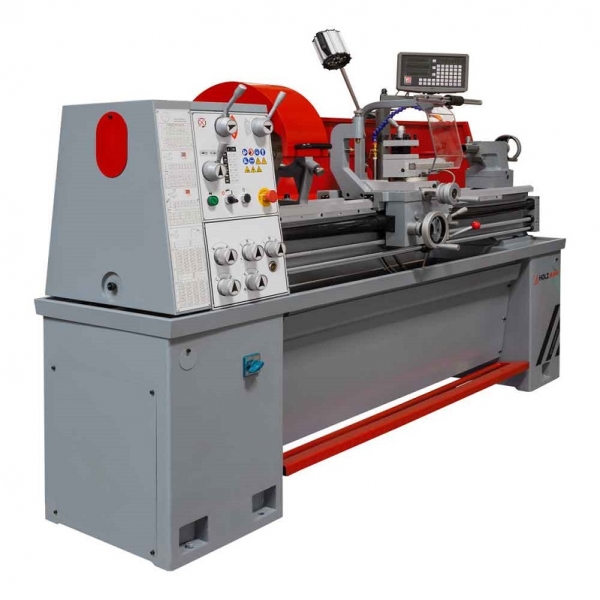

Metal Lathe with 3-Axis Digital Readout (DRO) ED1500KDIG
Metal Lathe with 3-Axis Digital Readout (DRO) ED1500KDIG
- SKU: BD70154
- SKU:: ED1500KDIG_400V
11,900.00 €
Send Message
Inquiry for the Vilnius region
Description

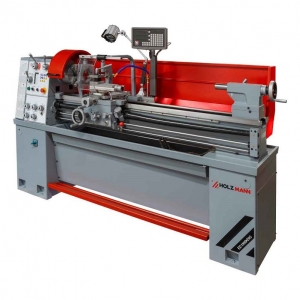

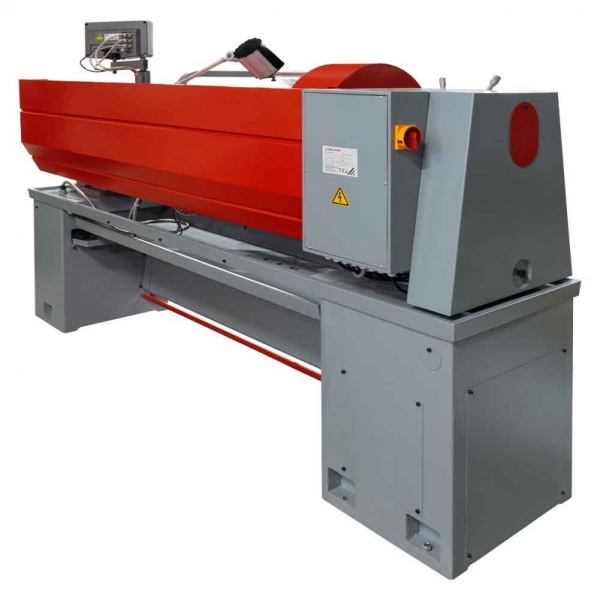

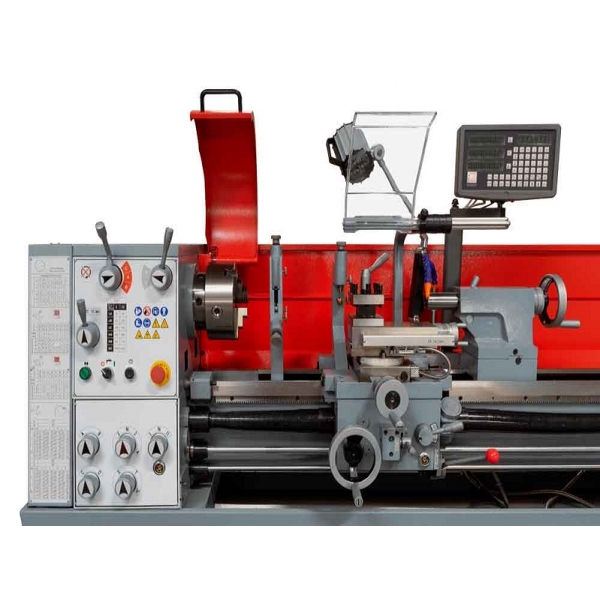

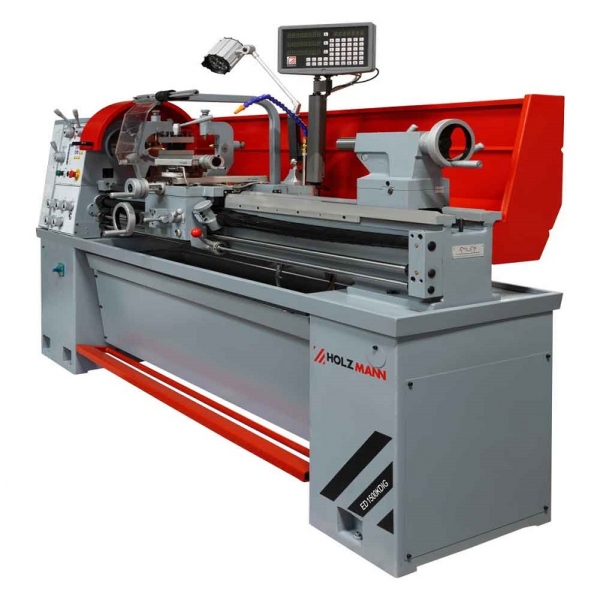

Metal Lathe with 3-Axis Digital Readout (DRO) ED1500KDIG
Country of Origin: Austria, warranty period - 24 months
The metal lathe with a 3-axis digital readout (DRO) is an advanced tool designed for precise and efficient metal machining. This machine is ideal for workshops, repair and production tasks, as well as educational institutions. A large spindle bore and adjustable tailstock ensure versatility, while a robust cast iron construction and hardened guides provide durability and accuracy.
Features:

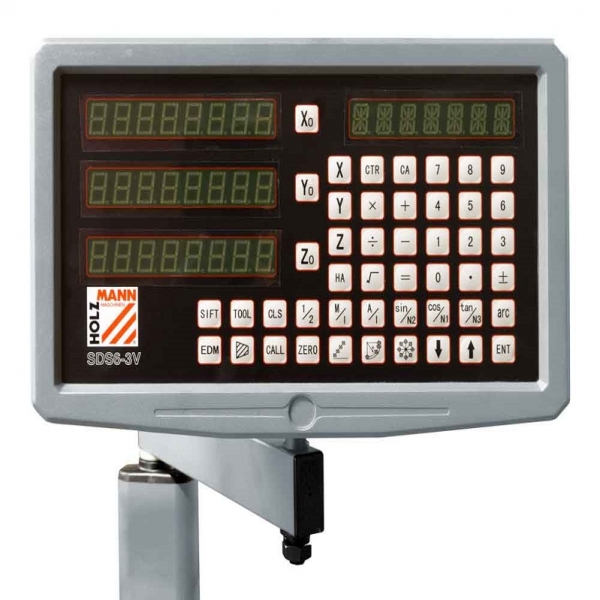

- 3-axis digital readout for easy operation.
- Electromagnetic foot brake for enhanced safety.
- Induction-hardened and precision-ground prismatic guides.

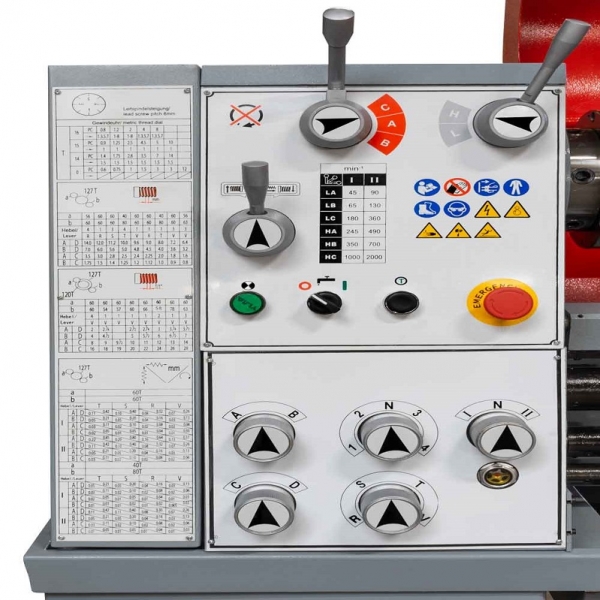

- Wide threading range with interchangeable gears.

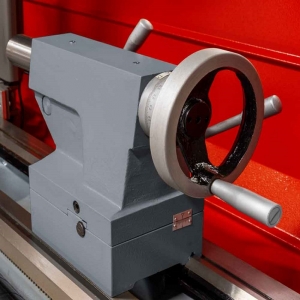

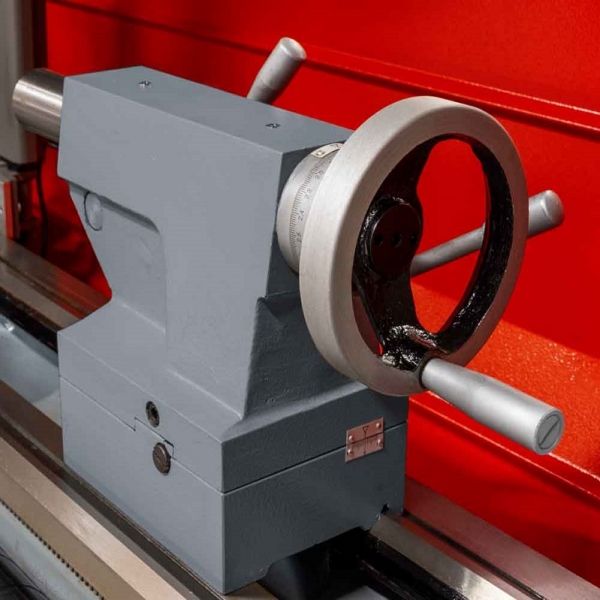

- Adjustable tailstock for taper turning.
- Sturdy cast iron construction for vibration damping and precision.
- Includes various accessories to ensure versatility in operations.
Technical Specifications:
Motor Data:
- Motor Power S1: 2000 W.
- Voltage: 400 V / 50 Hz.
Dimensions:
- Overall Dimensions (mm): 2570 x 780 x 1800.
- Bed Width (mm): 220.
- Bed Height (mm): 270.
- Machining Parameters:
- Distance Between Centers (mm): 1500.
- Center Height (mm): 200.
- Maximum Swing Over Bed (mm): 400.
- Maximum Swing Over Cross Slide (mm): 250.
- Spindle Speed (rpm): 45-2000 (12).
- Spindle Bore (mm): 56.
- Spindle Taper: MK6 / MT6.
- Tailstock Taper: MK4 / MT4.
Slide Parameters:
- Carriage Travel (mm): 1175.
- Cross Slide Travel (mm): 180.
- Compound Slide Travel (mm): 110.
- Tailstock Sleeve Travel (mm): 110.
Threading:
- Metric Threads (mm/rev): 0.8–14 (36).
- Inch Threads: 2–28 TPI (36).
- Maximum Tool Holder Cross-Section (mm): 30 x 20.
Noise Level:
- Sound Pressure Level: 78 dB(A).
Weight:
- Net Weight: 880 kg.
- Gross Weight: 980 kg.
Packaging:
- Packaging Width (mm): 760.
- Packaging Length (mm): 2470.
- Packaging Height (mm): 1600.
