Metal turning lathe with Siemens 808D control and hydraulic clamping Holzmann

Metal Turning Lathe with Siemens 808D Control and Hydraulic Clamping Holzmann

Country of origin: Austria, warranty period – 24 months

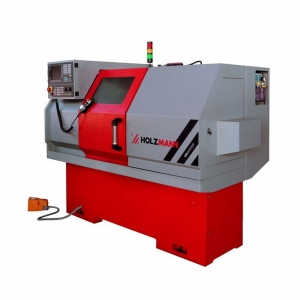

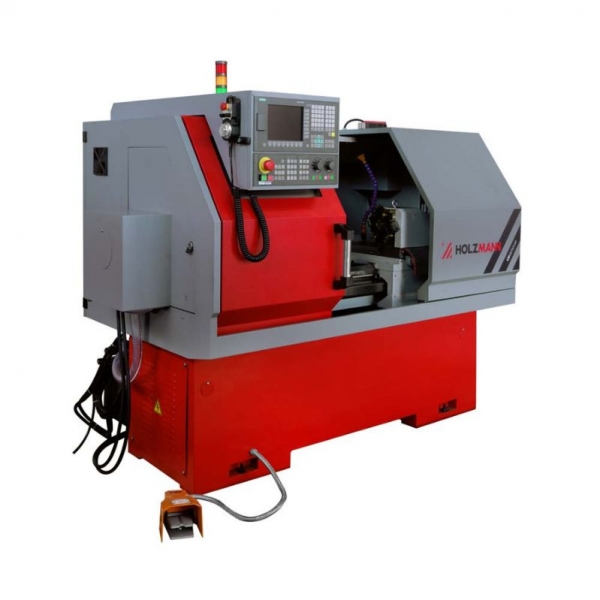

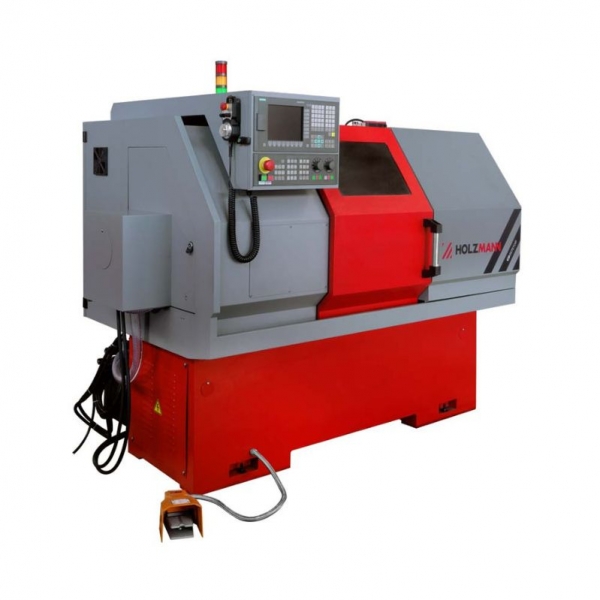

A high-end CNC turning lathe equipped with the Siemens 808D Advanced control system – this is a precise and reliable machine designed for metal turning in both small and medium-scale production. The machine offers high precision, power, and user comfort. Integrated systems for cooling, central lubrication, and hydraulic clamping ensure smooth, efficient, and long-lasting operation. It is suitable for various turning operations with workpieces up to Ø 360 mm in diameter.

Features:

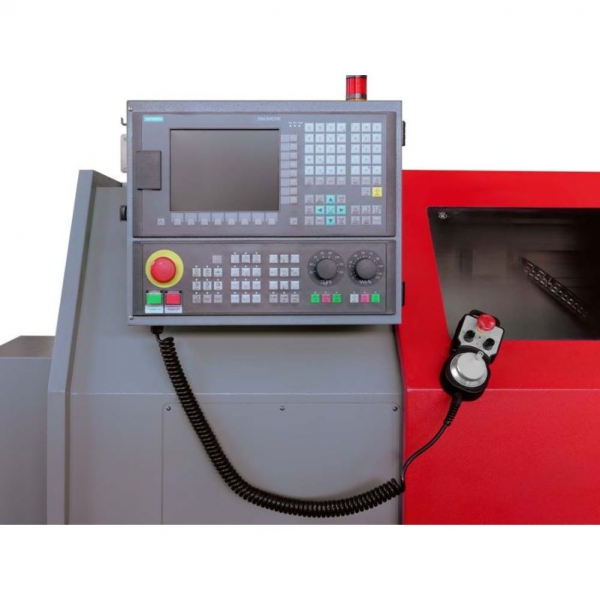

• Siemens 808D Advanced control system – intuitive and precise CNC control
• Powerful 3.7 kW spindle motor with precision bearings – high torque and operational stability
• Large coolant system: 30-liter tank with a 210 W pump
• Central lubrication system: 2-liter tank with a 100 W pump

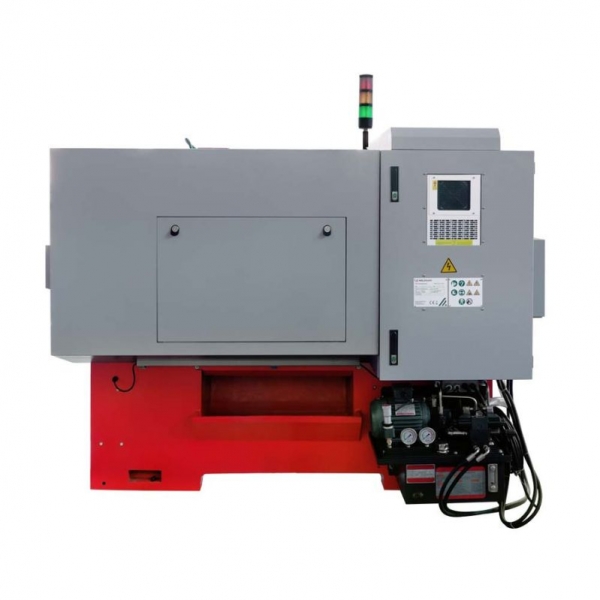

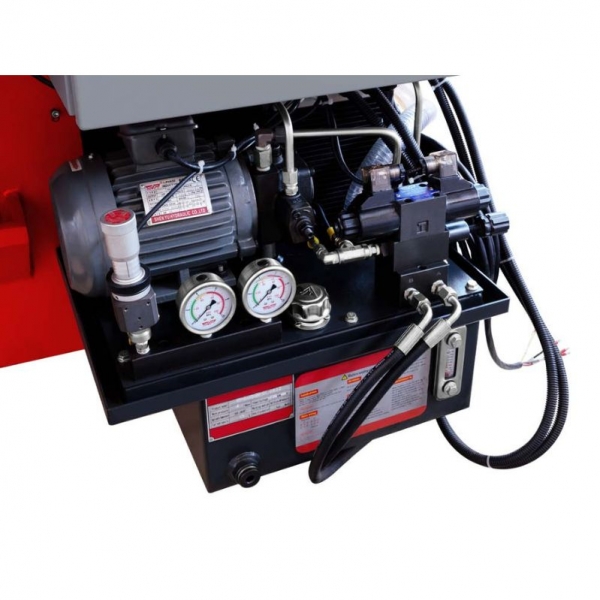

• Hydraulic 3-jaw chuck and tailstock – 45-liter hydraulic oil tank
• 3-jaw lathe chuck Ø 200 mm
• High rapid traverse speed up to 7 m/min (Z-axis)

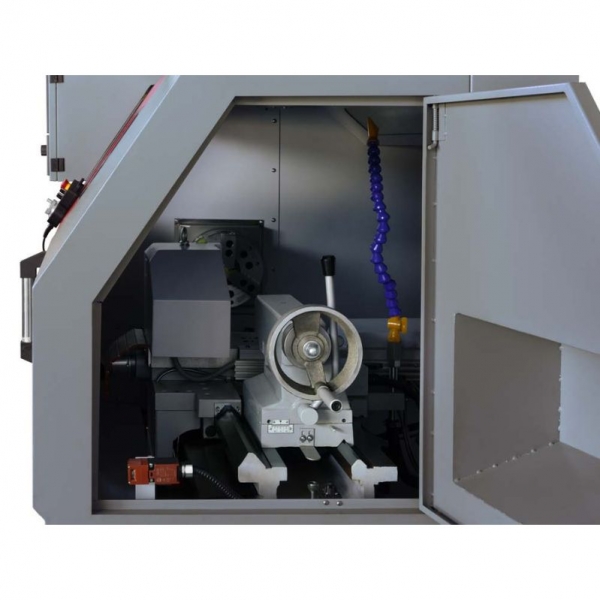

• Hydraulic tailstock with MK4 / MT4 taper

Technical Specifications:

• Dimensions and Power:
• Overall dimensions: 2200 x 1400 x 1600 mm
• Power supply voltage: 400 V / 3-phase / 50 Hz
• Sound pressure level: 85 dB(A)
• Gross weight: 1400 kg
• Net weight: 1200 kg
• Packaging dimensions (W x L x H): 1450 x 2280 x 1920 mm
• Machining Capabilities:
• Distance between centers: 750 mm
• Center height: 180 mm
• Max. turning diameter over bed: Ø 360 mm
• Max. turning diameter over cross slide: Ø 160 mm
• Spindle speed range: 150–2500 rpm
• Spindle bore: Ø 60 mm (working diameter Ø 48 mm)
• Spindle taper: MK6 / MT6
• Tailstock taper: MK4 / MT4
• Carriage travel (Z-axis): 600 mm
• Cross slide travel (X-axis): 170 mm
• Tailstock quill travel: 100 mm
• Max. tool holder cross-section: 16 x 16 mm
