MIG MAG synergic welding machine 500A

MIG MAG synergic welding machine 500A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

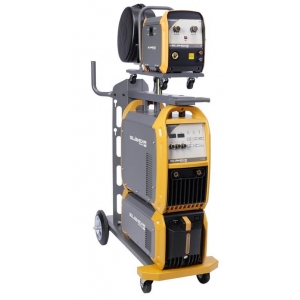

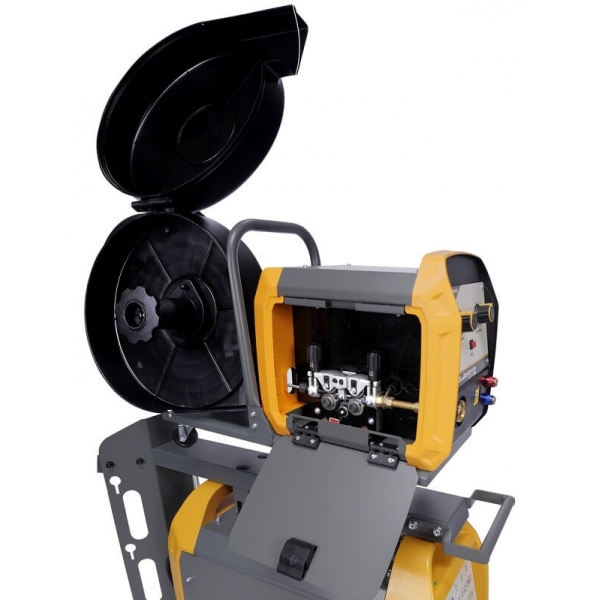

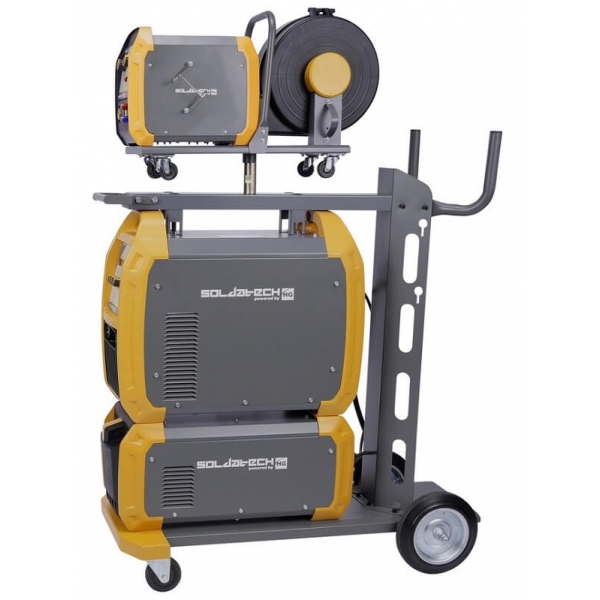

This HG MIG/MAG welder can be set up in both synergistic and manual settings and comes standard with a robust trolley that easily holds a 50L cylinder. This synergic machine makes it easy to perform a variety of welding processes, including MIG welding and electrode welding. Advanced IGBT inverter technology ensures that the ML500YHG operates with higher power and a very high duty cycle. The ML500YHG also comes standard with a powerful water cooler, which together with the built-in fan prevents overheating and ensures high-quality welding performance for a long time. The mobile wire feeder also features a control panel that allows easy adjustment of welding voltage and current, among other things. The power source is also equipped with pre-programmed synergistic programs for welding various materials. Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (pulse free).

Standard equipment:

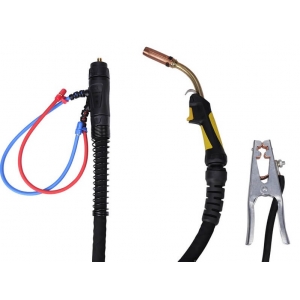

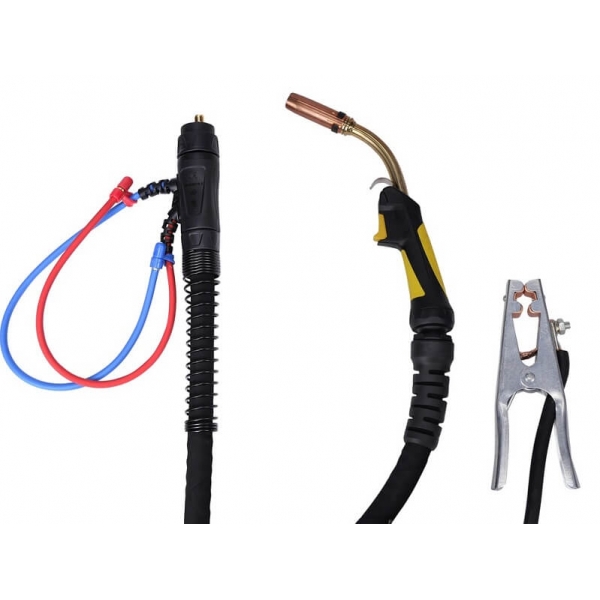

• Soldatech MLT501M4 Water Cooled MIG Torch
• Welding earth terminal with 3 m 50 mm² cable
• European Dinse connectors 13 mm
• Gas line with quick connection 12 m

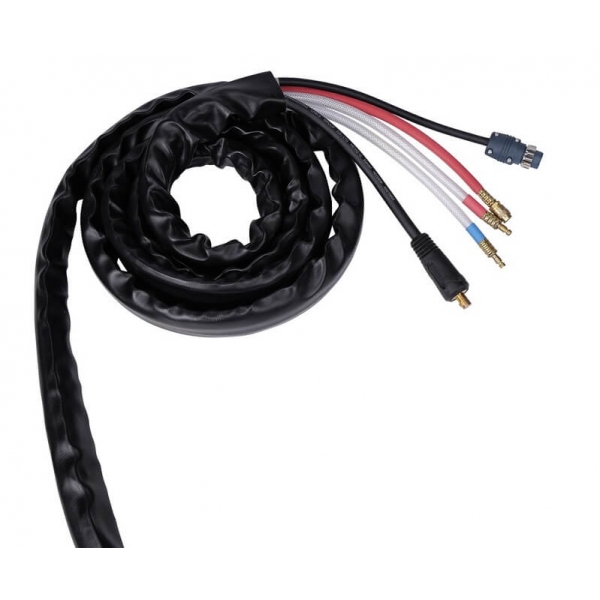

• Intermediate connecting fiber 5 m
• 5-pin 32A plug with 3 m 4x4 mm² cable
• 4x wire feed roll: 2x 0.8 + 1.0 and 2x 1.2 V + 1.6 V

Technical specifications:

• Voltage = 400V - 3 phases
• Frequency = 50/60 Hz
• Circuit breaker = 32 A B-char
• Input power = 27.5 kVA
• No load voltage = 73V
• Duty cycle (at 20°C ambient temperature) = 100% - 500 A
• Duty cycle (at 40°C ambient temperature) = 60% - 500 A
• Welding current range MIG/MAG = 40 - 500 A
• Welding current range MMA = 40 - 490 A
• Weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6 mm
• Volume of the cooling unit = 6 L
• Protection class = IP21S
• Dimensions = 1133 x 498 x 1508 mm
• Weight = 112 kg
