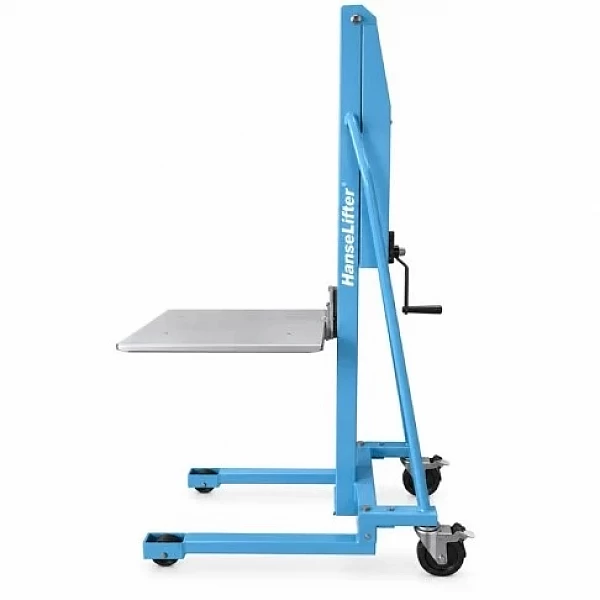

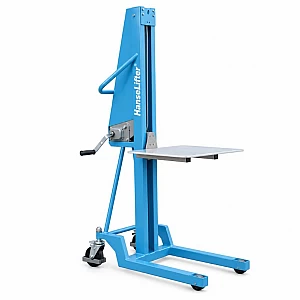

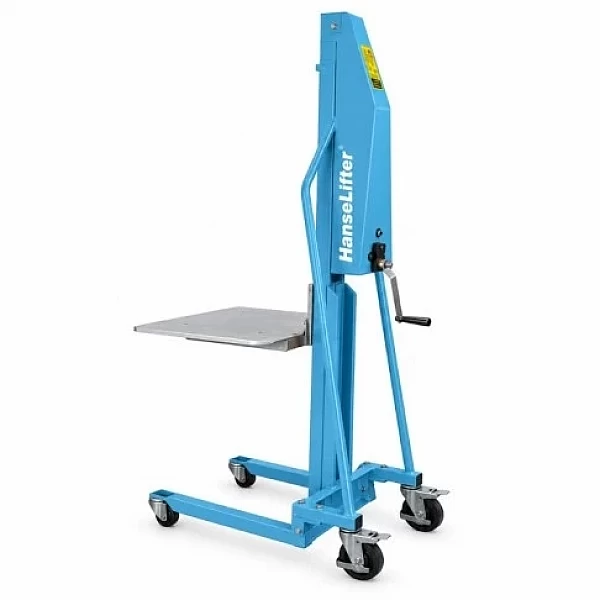

HanseLifter MES100-15 100 kg Mini Lift

Country of origin: Germany; warranty period: 24 months

The HanseLifter MES100-15 is a professional, compact, manual mini lift with a platform designed for the convenient lifting, transport, and positioning of small loads in warehouses, workshops, retail locations, laboratories, offices, and manufacturing facilities. The mechanical lifting mechanism with a manual rotary hoist handle allows for precise adjustment of the platform height from 130 to 1,500 mm, allowing loads to be raised to a comfortable working height without additional physical effort. A 100 kg lifting capacity and a 470 × 600 mm PVC platform ensure versatile use for transporting boxes, tools, equipment, and various parts. The compact design, low weight, and durable polyurethane casters allow for easy maneuvering in narrow aisles and confined workspaces. Manual mechanical operation requires no electricity or battery charging, so the lift is always ready for use.

Technical Specifications:

Lifting capacity: 100 kg
Drive type: manual
Lifting mechanism: mechanical hand hoist
Lifting control: rotary handle
Distance to load center: 230 mm
Wheelbase: 670 mm
Lifting height range: 130–1,500 mm
Maximum lifting height: 1,500 mm
Minimum platform height: 130 mm
Platform stroke: 1,370 mm
Platform length: 470 mm
Platform width: 600 mm
Platform material: PVC
Lifting mast height in the lowered position: 1,830 mm
Lifting arm height when raised: 1,830 mm
Front wheel size: 125 × 32 mm
Rear wheel size: 75 × 32 mm
Number of wheels, front/rear: 2 / 2
Front track width: 415 mm
Rear track width: 415 mm
Turning radius: 780 mm
Wheel material: polyurethane (PU)
Braking system: mechanical parking brake
Control: manual mechanical

The HanseLifter MES100-15 100 kg is the ideal choice for businesses that need a compact, reliable, and ergonomically designed mini lift. A wide range of lifting heights, convenient mechanical operation, an easy-to-clean PVC platform, and a maneuverable design allow for more efficient cargo lifting, order picking, and transport operations. Its sturdy construction, durable polyurethane casters, and simple operation ensure comfortable, efficient, and long-lasting use in warehousing, retail, manufacturing, and other work environments.

Manual Lifting and Transport of Cargo with an Integrated Platform
A lifting capacity of 100 kg allows for the lifting and transport of various small loads
The lifting height range from 130 to 1,500 mm allows the platform position to be adjusted according to work requirements
The mechanical lifting mechanism with a manual crank handle ensures precise and smooth lifting of loads
Smooth platform lowering allows for controlled and safe positioning of loads
The mechanical lifting mechanism requires no electricity or battery charging
The 470 x 600 mm PVC platform is designed for transporting boxes, tools, parts, and other small loads
The PVC platform surface is easy to clean and suitable for use in rougher work environments
The low-profile design allows for easy access to workbenches, shelves, and other equipment with sufficient clearance
The compact design is suitable for use in narrow warehouse aisles and confined spaces
The small turning radius ensures easy maneuvering in tight work areas
The polyurethane casters feature quiet rolling, wear resistance, and are suitable for more delicate indoor floors
Swivel casters facilitate control of the lift truck and precise positioning at the workstation
The integrated mechanical parking brake helps prevent the lift from moving unintentionally during loading and unloading
The lightweight design (50 kg) makes it easy to transport the lift and use it in different work areas
The sturdy construction ensures stable lifting and transport of loads
The lift can be used as a mobile work platform for order picking, packing, and assembly tasks
Suitable for use in warehouses, laboratories, offices, retail locations, and workshops
The manual mechanical lifting mechanism does not require complex maintenance

Length: 820 mm
Width: 570 mm
Height: 1830 mm
Weight: 50 kg

HanseLifter MES100-15 Mini Lift x 1
PVC cargo platform x 1
Integrated mechanical lifting mechanism with rotary handle x 1
Integrated parking brake x 1
