HanseLifter MES200-15 200 kg Mini Lift

Based on 0 reviews. - Write a review

SKU: BD71663
SKU:: GE0082066

909.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

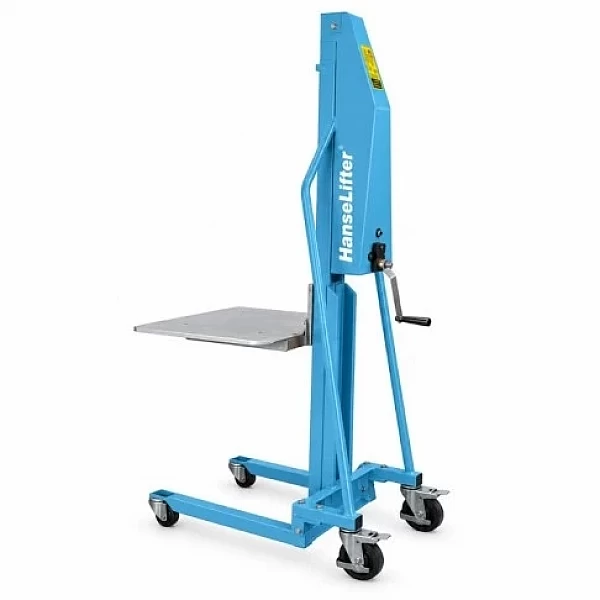

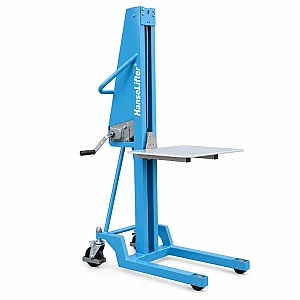

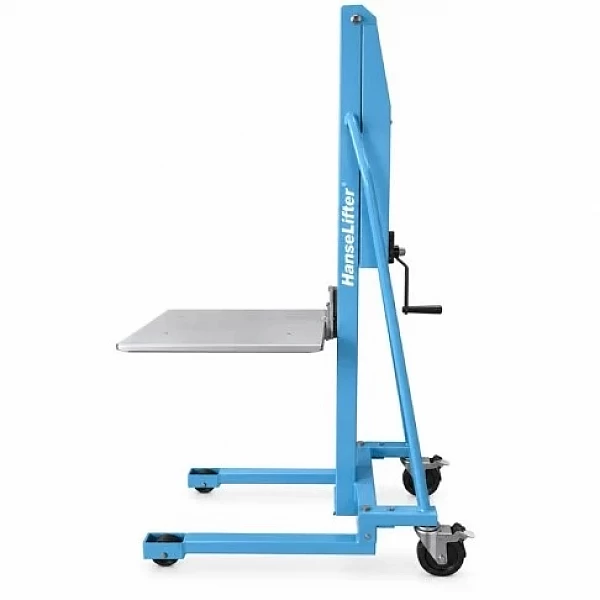

HanseLifter MES200-15 200 kg Mini Lift

Country of origin: Germany; warranty period: 24 months

The HanseLifter MES200-15 is a professional, compact, manual mini lift with a platform designed for the convenient lifting, transport, and positioning of loads in warehouses, workshops, retail locations, laboratories, offices, and manufacturing facilities. The mechanical lifting mechanism with a manual rotary hoist handle allows for precise adjustment of the platform height from 130 to 1,500 mm, enabling loads to be raised to a convenient working height without the use of electricity. A 200 kg lifting capacity and a 470 × 600 mm PVC platform ensure versatile use for transporting boxes, tools, equipment, parts, and other medium-weight loads. Its compact design, light weight, and durable polyurethane casters allow for easy maneuvering in narrow aisles and confined workspaces. Manual mechanical operation eliminates the need for battery charging or hydraulic system maintenance, ensuring the lift is always ready for daily use.

Technical Specifications:

Lifting capacity: 200 kg
Drive type: manual
Lifting mechanism: mechanical hand hoist
Lifting control: rotary handle
Distance to load center: 230 mm
Wheelbase: 670 mm
Lifting height range: 130–1,500 mm
Maximum lifting height: 1,500 mm
Minimum platform height: 130 mm
Platform stroke: 1,370 mm
Platform length: 470 mm
Platform width: 600 mm
Platform material: PVC
Lifting mast height in the lowered position: 1,830 mm
Lifting arm height when raised: 1,830 mm
Front wheel size: 125 × 32 mm
Rear wheel size: 75 × 32 mm
Number of wheels, front/rear: 2 / 2
Front track width: 405 mm
Rear track width: 405 mm
Turning radius: 780 mm
Wheel material: polyurethane (PU)
Braking system: mechanical parking brake
Control: manual mechanical

The HanseLifter MES200-15 200 kg is the ideal choice for businesses that need a compact, reliable, and heavy-duty manual mini-lift. With a 200 kg lifting capacity, a wide range of lifting heights, convenient mechanical operation, and an easy-to-clean PVC platform, it enables more efficient cargo lifting, order picking, and transport operations. The sturdy construction, durable polyurethane casters, and compact dimensions ensure easy maneuverability and long-lasting use in warehousing, retail, manufacturing, and other work environments.

Manual Lifting and Transport of Cargo with an Integrated Platform
A lifting capacity of 200 kg allows for the lifting and transport of various warehouse, retail, and industrial loads
The lifting height range from 130 to 1,500 mm allows the platform position to be adjusted according to work requirements
The mechanical lifting mechanism with a manual crank handle ensures precise and smooth lifting of loads
Smooth platform lowering allows for controlled and safe positioning of loads
The mechanical lifting mechanism requires no electricity or battery charging
The 470 x 600 mm PVC platform is designed for transporting boxes, tools, parts, and other loads
The PVC platform surface is moisture-resistant, easy to clean, and suitable for use in harsher work environments
The low-profile chassis design allows for easy access to workbenches, shelves, and other equipment with sufficient clearance
The compact design is suitable for use in narrow warehouse aisles and confined spaces
The small turning radius ensures easy maneuvering in tight work areas
Polyurethane casters feature quiet rolling, wear resistance, and are suitable for more delicate indoor floors
Swivel casters facilitate control of the lift truck and precise positioning at the workstation
The integrated mechanical parking brake helps prevent the lift from moving unintentionally during loading and unloading
The lightweight design (60 kg) makes it easy to transport the lift and use it in different work areas
The sturdy construction ensures stable lifting and transport of loads
The lift can be used as a mobile lifting platform for order picking, packing, and assembly tasks
Suitable for use in warehouses, laboratories, offices, retail locations, and workshops
The manual mechanical lifting mechanism requires no complex maintenance
Not suitable for sliding the chassis under standard Euro pallets and standard mesh containers

Length: 820 mm
Width: 570 mm
Height: 1830 mm
Weight: 60 kg

HanseLifter MES200-15 Mini Lift x 1
PVC cargo platform x 1
Integrated mechanical lifting mechanism with rotary handle x 1
Integrated parking brake x 1
