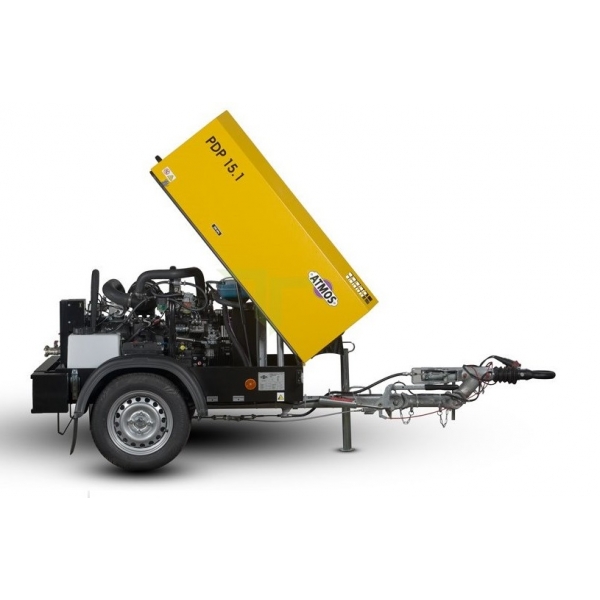

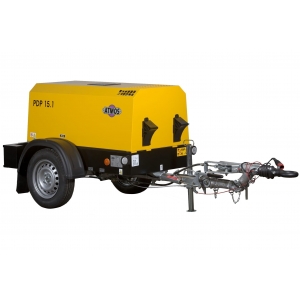

Mobile diesel air compressor ATMOS PDP20

Mobile diesel air compressor ATMOS PDP20

Manufacturer: Atmos, Czech Republic.

The small Atmos PDP 20 (7/10 bar) diesel compressor is useful for work where high productivity and efficiency are required, but at the same time it is available in non-standard areas such as construction sites. Designed to work with one or two powerful pneumatic tools or sandblasters.

The PDP 15 is equipped with monitoring systems: engine oil pressure, maximum drive motor and compressor temperature, intake filter clogging indicator, automatic pressure maintenance system under load. The upper housing opens for easy access to all compressor components and parts. The closed housing hermetically protects the engine from dust and precipitation.

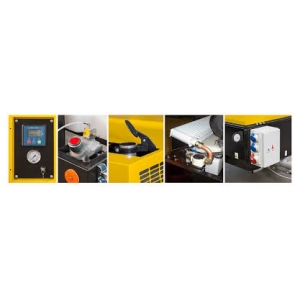

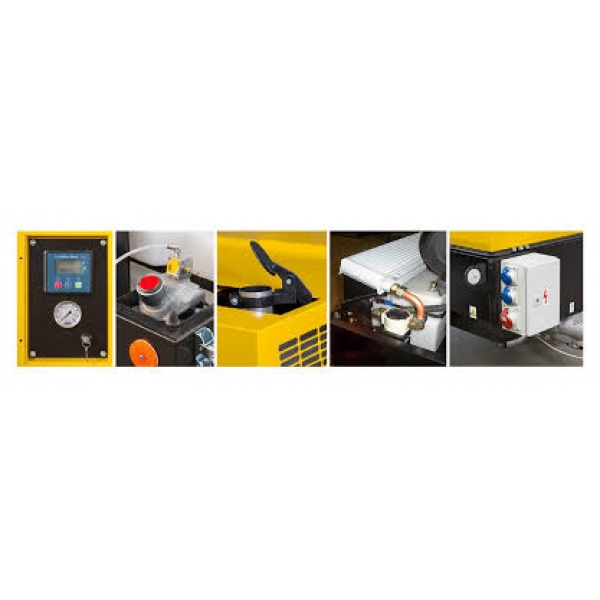

The control unit is equipped with a starter, manometer, control system status lights, compressor inlet valve control.

Advantages:

Compressors can come in a variety of chassis options: fixed without brakes, fixed with brakes, stationary brakes, adjustable brakes, with outriggers and more.

The autonomous control system regulates the engine speed according to the exhaust air

Maximum power optimization, low fuel consumption

Many different variations - according to everyone's needs

Technical data:

Engine: Perkins 403D-07

Engine speed: 3200 rpm

Engine power: 15.3 kW

Capacity: 2 m3 / min

Operating pressure: 7 bar / 102 psi

Fuel consumption: 4.0-1.8 kg / h

Fuel tank capacity: 21 l

Compressor weight: 500 kg

Number of cylinders: 2 pcs

Chassis: on request
