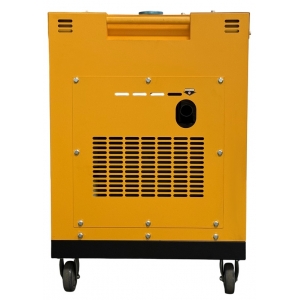

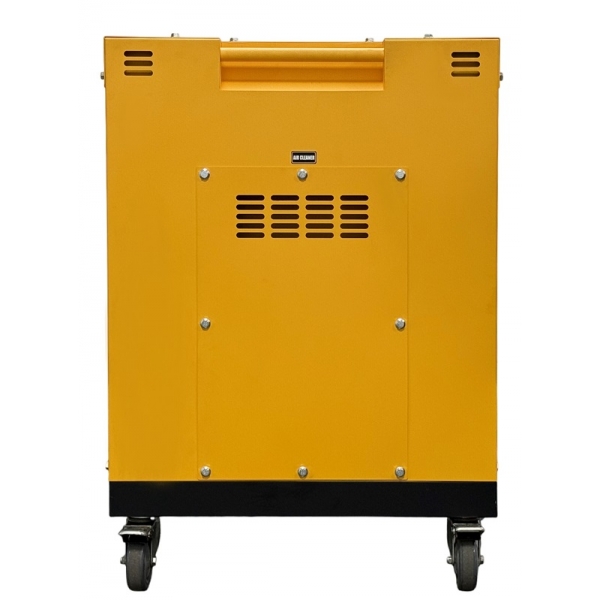

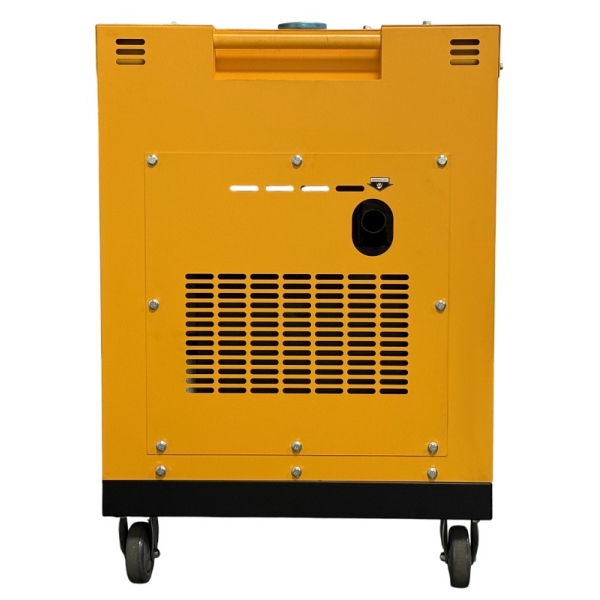

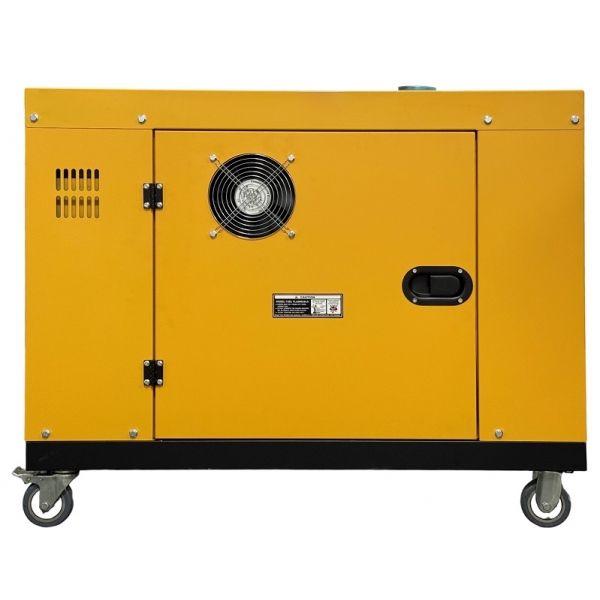

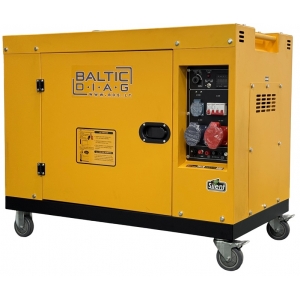

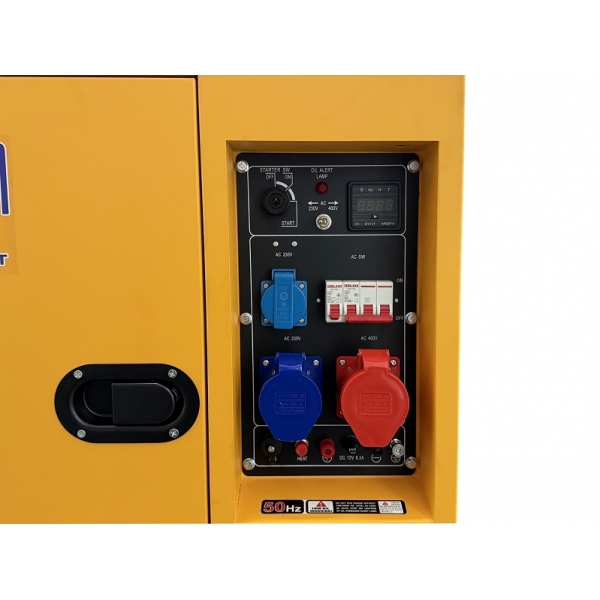

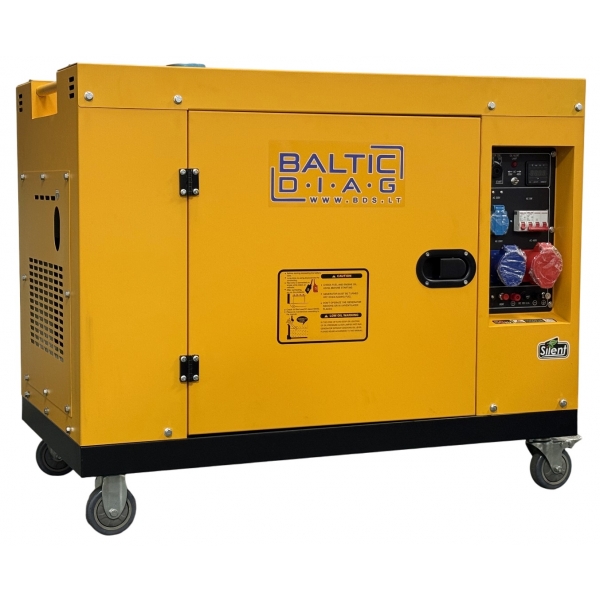

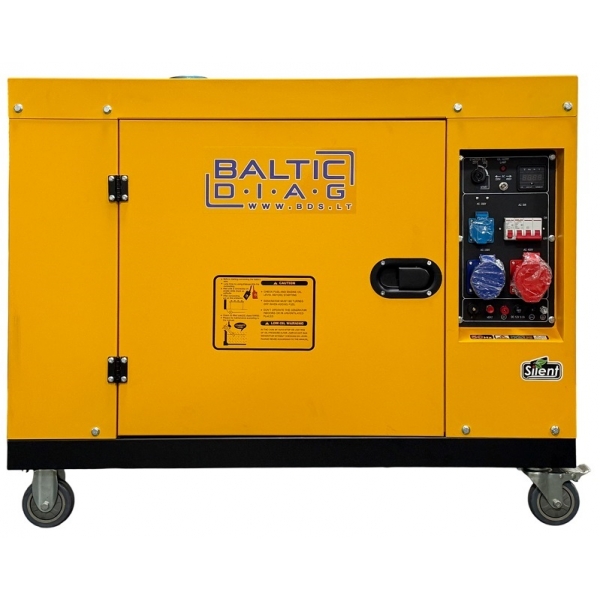

Mobile diesel generator BD12500SE, 9.5 kW

BD12500SE Portable Diesel Generator, 9.5 kW

Country of origin: China; warranty period: 24 months

The BD12500SE portable diesel generator is a powerful and economical source of electricity designed for both residential and professional use. With a continuous power output of 9.5 kW and a dual voltage option of 230 V / 400 V, this unit is ideal for use on construction sites, at events, or as a backup power source at home. Convenient controls, an electronic start-up system, integrated displays, and a heater make work easier even in challenging weather conditions.

Technical Specifications:

• Maximum power (standby): 10 kW / 12.5 kVA
• Rated power (prime): 9.5 kW / 11.9 kVA
• Voltage: 230 / 400 V
• Frequency: 50 Hz
• Number of phases: 3 phases (selectable)
• AVR system accuracy: ± 0.5%
• DC output: 12 V / 8.3 A
• Noise level (7 m): 70–73 dB
• Cooling system: air-cooled
• Number of cylinders: 1
• Cycle: 4-stroke
• Rotational speed: 3,000 rpm
• Engine model: 1103F
• Displacement: 734 cm³
• Bore and stroke: 103 x 88 mm
• Fuel consumption (100%): 2.66 L/hr
• Fuel consumption (75%): 1.988 L/h
• Fuel consumption (50%): 1.33 L/h
• Fuel tank capacity: 30 L
• Operating time: 9.7 hours
• Oil capacity: 1.95 L
• Oil type: 10W/30 SAE
• Operating temperature: –15 °C to +40 °C
• Battery capacity: 45 Ah
• Output connectors: 2
• Protection class: IP23
• Circuit breakers: 1-phase – 50 A, 3-phase – 16 A
• Package dimensions: 1115 x 650 x 930 mm
• Weight: 228 kg
