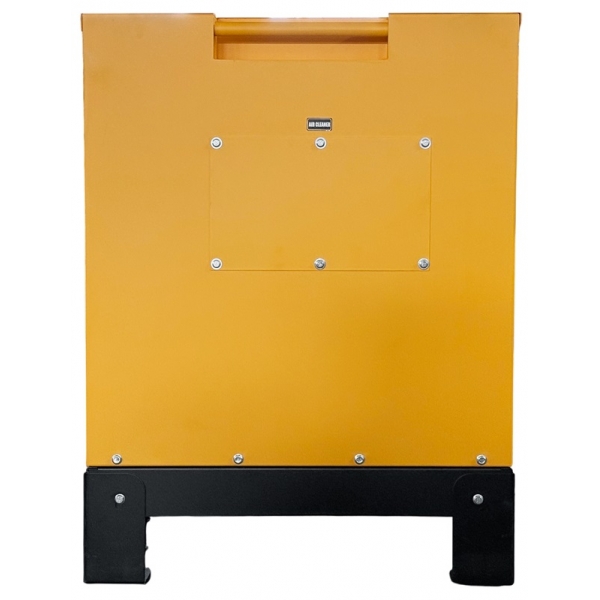

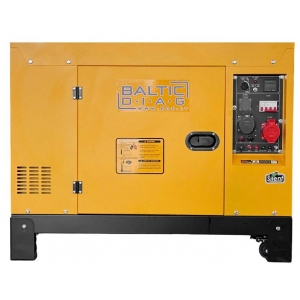

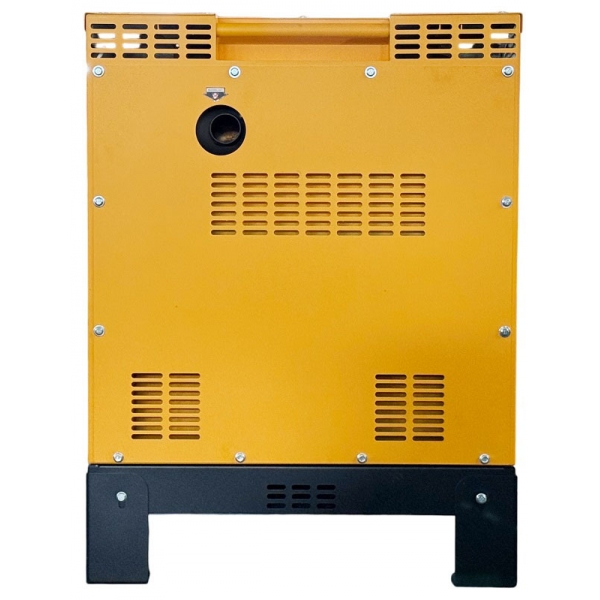

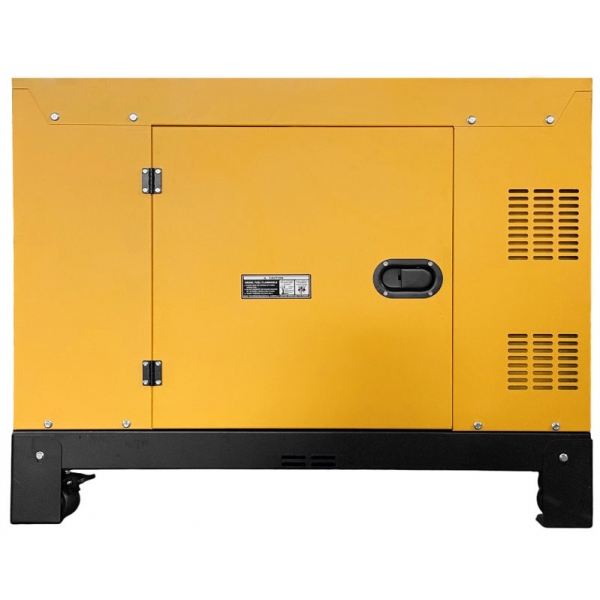

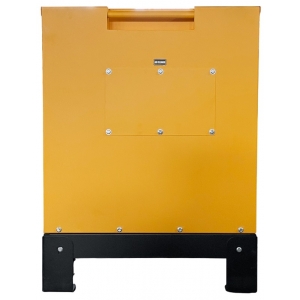

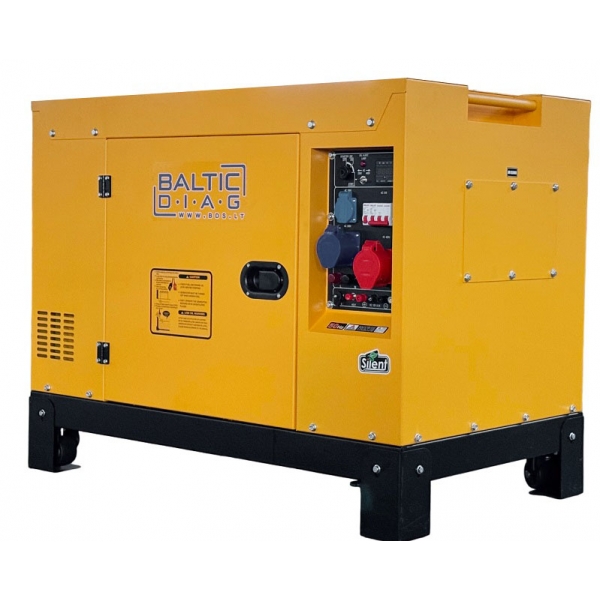

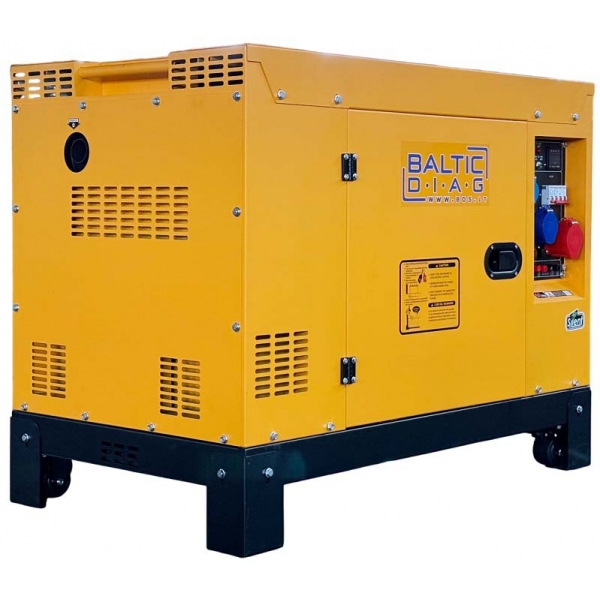

Mobile diesel generator BD22000SEA, 15 kW

BD22000SEA Portable Diesel Generator, 15 kW

Country of origin: China; warranty period: 24 months

The BD22000SEA portable diesel generator is a powerful, reliable, and economical source of electricity designed for both residential and professional use. With a continuous power output of 15 kW and the option to select either 230 V or 400 V voltage, this generator is ideal for use on construction sites, at events, or as a backup power source at home. An electronic start system, digital display, heater, and high-quality wheels ensure convenient use even in challenging conditions.

Technical Specifications:

• Maximum power (standby): 16 kW / 20 kVA
• Continuous power (prime): 15 kW / 18.8 kVA
• Voltage: 230 / 400 V
• Frequency: 50 Hz
• Number of phases: 3 phases (selectable)
• AVR voltage regulation accuracy: ± 0.5%
• DC output: 12 V / 8.3 A
• Noise level (7 m): 71–75 dB
• Cooling system: air-cooled
• Number of cylinders: 2
• Cycle: 4-stroke
• RPM: 3,000
• Engine model: 2V95F
• Displacement: 1,247 cm³
• Piston bore and stroke: 95 x 88 mm
• Fuel consumption (100%): 3.9 L/h
• Fuel consumption (75%): 2.925 L/h
• Fuel consumption (50%): 1.95 L/h
• Fuel tank capacity: 30 L
• Operating time: 8 hours
• Oil capacity: 3.8 L
• Oil grade: 10W/30 SAE
• Operating temperature: –15 °C to +40 °C
• Battery capacity: 45 Ah

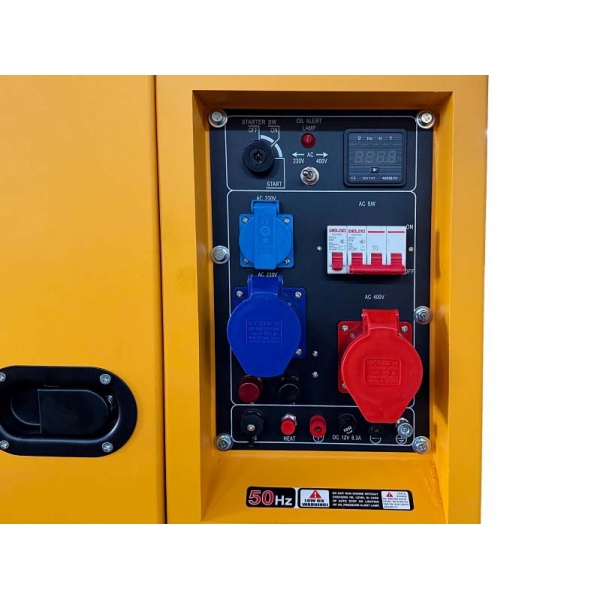

• Output power plugs: 2
• Protection class: IP23
• Circuit breakers: 1-phase – 63 A, 3-phase – 32 A
• Package dimensions: 1175 x 710 x 920 mm
• Weight: 320 kg

Technical specifications:

• Model: BD22000SEA
• Power: 15,000 W
• Current in single-phase mode (230 V): 65.2 A
• Current in three-phase mode (400 V): 21.7 A
