Mobile Gantry Crane 1T Wide and Tall MW Tools

Country of origin: China, warranty period – 24 months

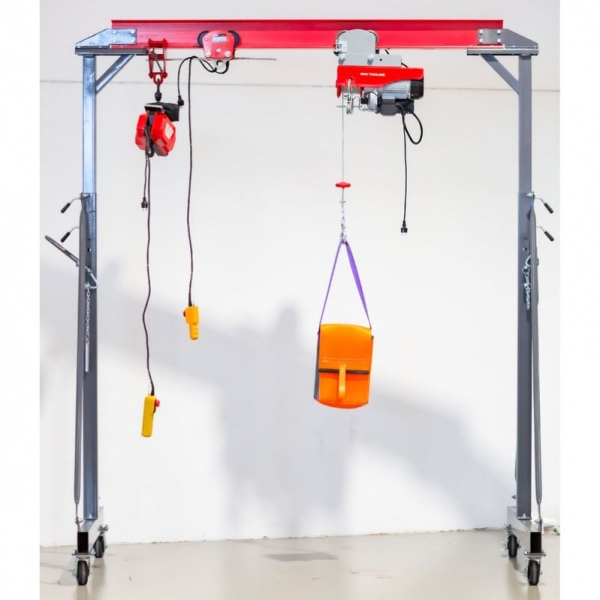

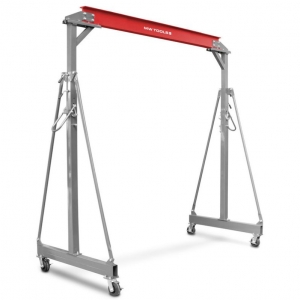

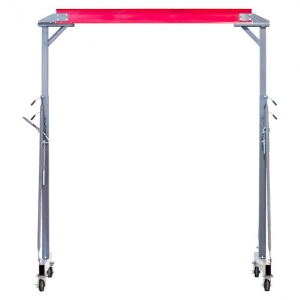

The wide and tall mobile gantry crane is designed for work with trucks, trailers, vans, tractors, and semi-trailers where there is no permanent overhead crane infrastructure. A robust, reinforced structure with cross stiffeners reduces deformation, while swivel casters with brakes ensure stability, safety, and easy repositioning. The height is adjustable without load using a set of levers and safety bolts, allowing the unit to quickly adapt to different work situations.

Features:

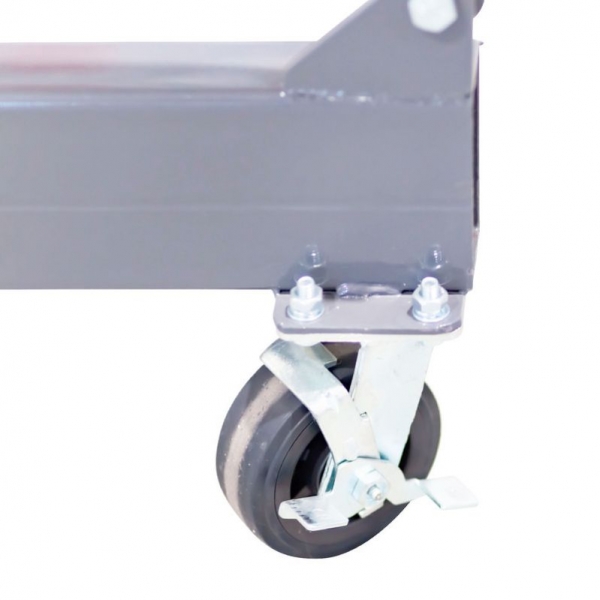

• Swivel casters with brakes – easy repositioning and reliable locking
• High and wide configuration – convenient for lifting loads from various vehicles (trailers, vans, trucks)

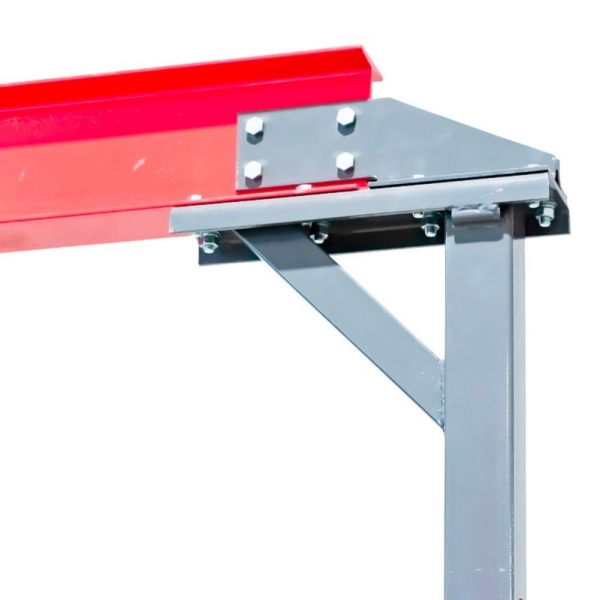

• Reinforced top beam and wheel beams with cross stiffeners – reduced deformation and greater rigidity

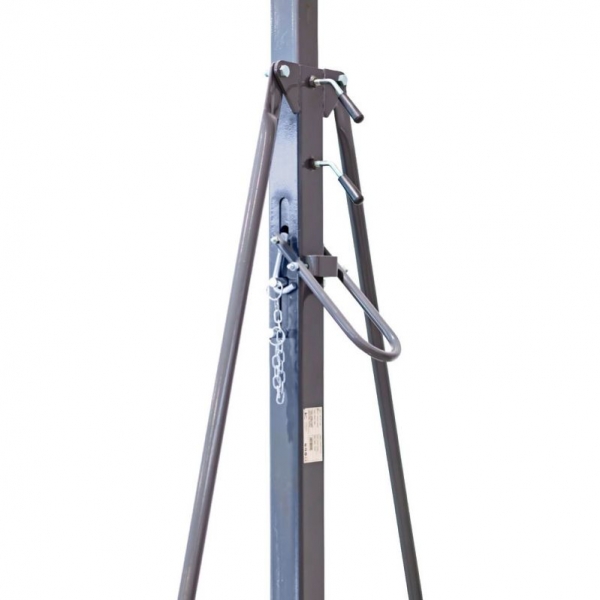

• Height adjustment without load using levers and safety bolts
• Compact, stable, and easy-to-transport design
• Suitable for use with electric chain hoists and beam trolleys

Technical specifications:

• Lifting capacity: 1 ton
• Adjustable frame height: 2740–4200 mm (without load)
• Adjustable free internal height: 2580–4000 mm
• Clear internal width on the beam: 2955 mm
• Usable trolley travel length on the beam: 2405 mm
• Beam profile: 140 × 80 mm
• Casters: swivel, with brakes
• Weight: 156 kg

The MW Tools 1T mobile gantry crane (wide and tall) is a reliable unit for loading and assembly work in transport, logistics, and production environments, ensuring performance, safety, and ergonomics.
