Mobile gantry crane 1T with chain hoist and beam clamp MW Tools

Mobile Gantry Crane 1T with Chain Hoist and Beam Clamp MW Tools

Country of origin: China, warranty period – 24 months

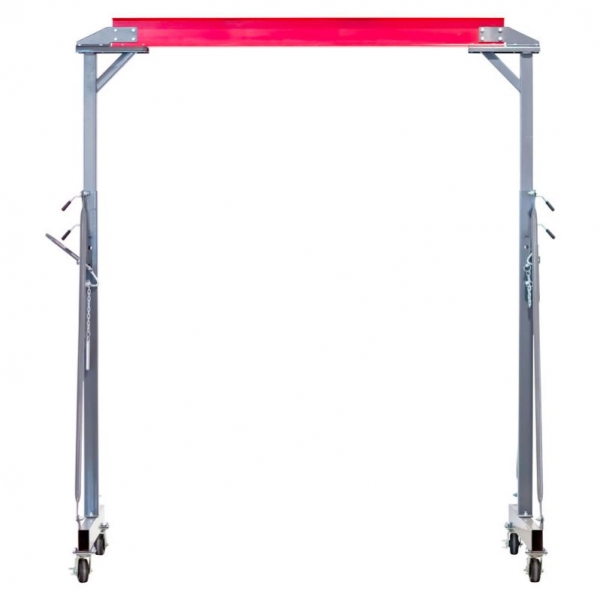

The set consists of a 1 t PTLK1 mobile gantry crane, a 1 t HNSJ1060 chain hoist, and a 2 t BKL2 beam clamp. It is a reliable solution for lifting, assembly, and installation tasks where there is no permanent overhead crane infrastructure. The reinforced crane structure with cross stiffeners ensures rigidity, while swivel casters with brakes allow the equipment to be moved safely and easily. The chain hoist with a load-pressure brake, safety hooks, and galvanized chains ensures safe operation, while the beam clamp attaches quickly low on the beam and saves headroom.

Features:

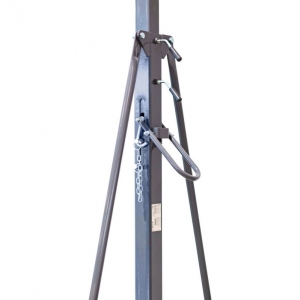

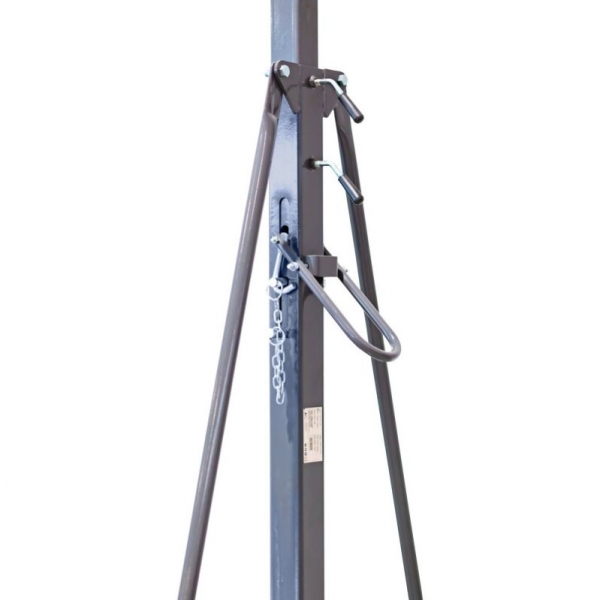

• Adjustable crane height 2,500–3,600 mm with levers and safety bolts

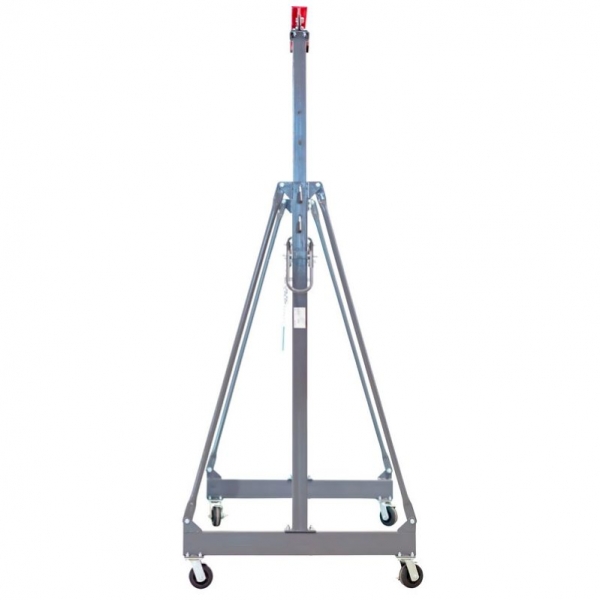

• Swivel casters with brakes – stable locking and mobility

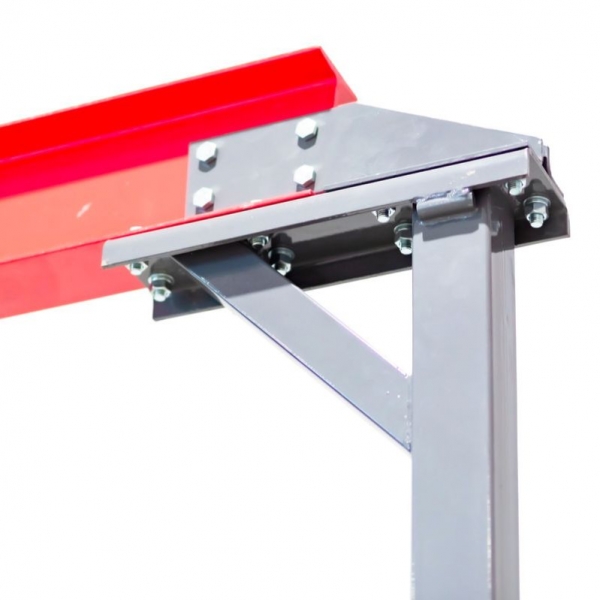

• Reinforced top beam and wheel beams with cross stiffeners
• Beam profile 74 × 120 mm

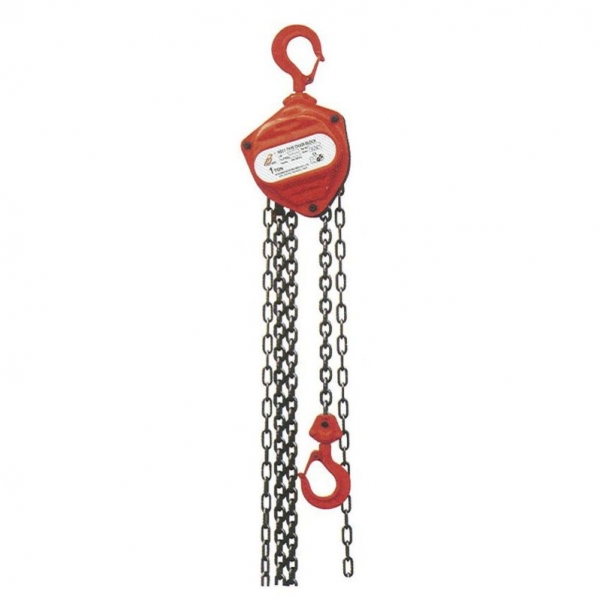

• Chain hoist with load-pressure brake – holds the load in any position
• Top and bottom hooks with safety latches, galvanized chains

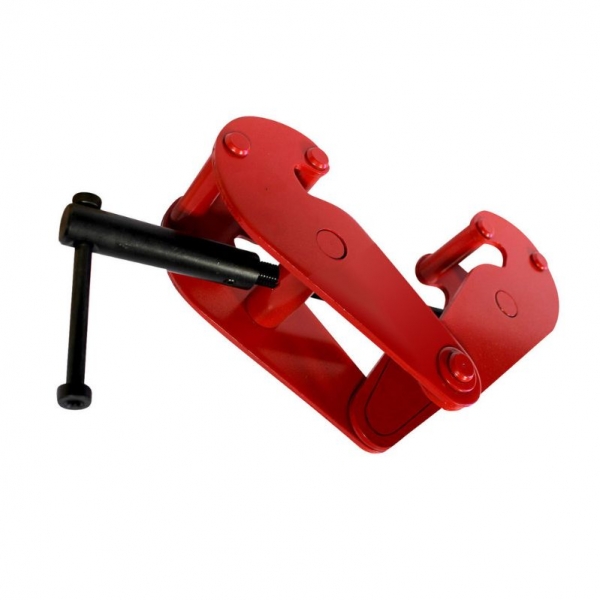

• 2 t beam clamp with a wide clamping range of 75–230 mm, adjustable with a spindle
• Suitable for IPE, INP, and HEA beams; low construction height with minimal headroom loss
• Welded eye for quick attachment, easy installation

Technical specifications:

• Rated lifting capacity (set): 1 t
• Chain length: 6 m
• Minimum lifting height (H min): 400 mm
• Required pull force at max load: 304 N
• Number of load chains: 1
• Chain link diameter: 6 mm
• Dimension A: 164 mm
• Dimension B: 124 mm
• Slot depth: 27 mm
• Dimension D: 182 mm
• Hand chain length: 12 m
• Beam clamp capacity: 2 t; clamping range: 75–230 mm; profiles: IPE/INP/HEA
• Dimensions (length × width × height): 2540 × 1100 × 2520 mm
• Set weight: 150.1 kg

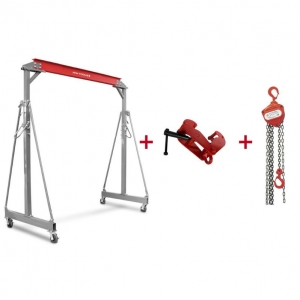

Set contents:

• PTLK1 crane 1 t
• HNSJ1060 chain hoist 1 t
• BKL2 beam clamp 2 t

The MW Tools mobile gantry crane, chain hoist, and beam clamp set provides everything needed for reliable and safe load lifting without permanent crane infrastructure—from mobility to practical safety solutions.
