Mobile power testing equipment DynoPro

DynoPro mobile power testing equipment

Country of origin: Poland, 24 months warranty period

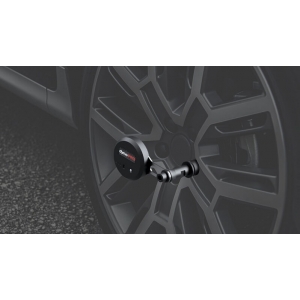

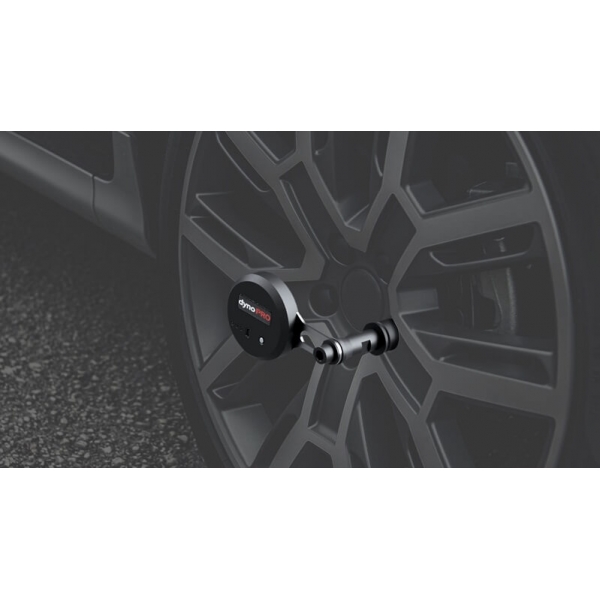

The DynoPro Mobile Power Checker is a professional road-type dynamometer for measuring vehicle power, torque, acceleration and other parameters in real driving conditions. The equipment is suitable for vehicles with different drive types and is designed for professional use in garages, mobile workshops, motorsport, diagnostics and engine performance analysis work. The compact kit, quick installation on the wheel and Bluetooth connectivity with Dyno and OBD2 probes allow measurements to be made quickly, accurately and conveniently without the need for a stationary power bench.

Technical specifications:

• Measurement purpose: power, torque, acceleration and additional vehicle parameters
• Measurement type: mobile road type dynamometer
• Communication with Dyno probe: Bluetooth
• Communication with OBD2 probe: Bluetooth
• Report formats: PDF, JPG, CSV
• Measurement standards: actual data, DIN70020, SAE J1349, EEC
• Measurement repeatability error: < ±1 %
• Software updates: free of charge
• Technical support: available
• Total weight of the set: 4,06 kg

Technical specifications of the Dyno probe:

• Wireless: Bluetooth
• Power: 3.7 V / 1000 mAh Li-ion battery
• Charging port: Mini USB
• Material: aluminium, steel
• Weather station: temperature range -40 °C to +105 °C, pressure range 500 hPa to 1100 hPa
• Declarations and standards: CE, RED 2014/53/EU, LVD, RoHS, EMC
• Weight: 180 g

OBD2 probe technical specifications:

• Wireless: Bluetooth
• Vehicle communication: CAN, LIN, Single Wire CAN (SW-CAN)
• Power supply: 12 V DC from vehicle
• Material: ABS plastic
• Weight: 50 g

Technical specifications of the tablet:

• Display: 10.1" IPS, 1920 x 1200 WUXGA
• Processor: MediaTek Helio G85, 2 x Cortex-A75 2.0 GHz + 6 x Cortex-A55 1.8 GHz
• Operating system: Android 14 / 15
• Memory: 4 GB RAM, 64 GB ROM
• Navigation: GPS, A-GPS, BeiDou, Galileo, GLONASS
• Connectivity: Wi-Fi 5 (802.11a/b/g/n/ac), Bluetooth 5.3
• Rear camera: 8 MP, autofocus
• Front camera: 5 MP, autofocus
• Battery: 3.7 V / 5100 mAh
• Charging port: USB-C
• Weight: 425 g

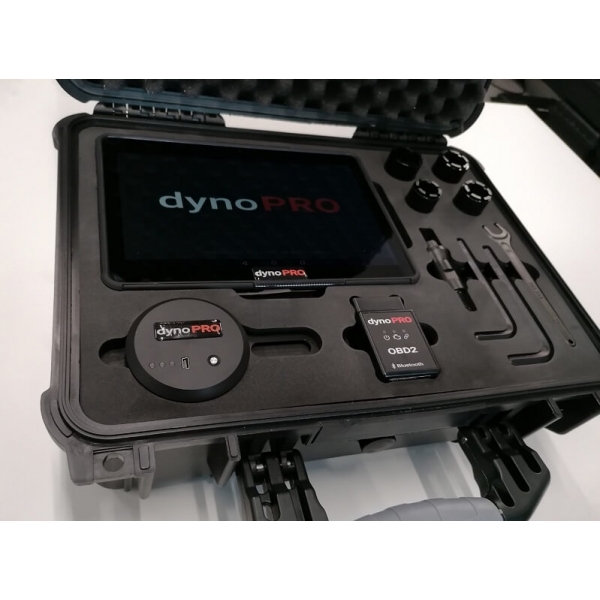

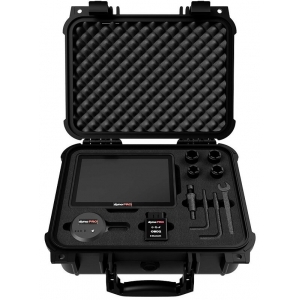

Suitcase:

• External dimensions: 406 x 330 x 174 mm
• Material: ABS + polypropylene
• Weight: 2.5 kg

The DynoPro mobile power tester is a practical solution for technicians who need to measure the power and torque of a vehicle under real driving conditions, rather than on a stationary power bench. Quick installation, OBD2 data logging, accurate reports and a compact transport kit make the equipment easy to use in the workshop, in mobile diagnostic or motorsport applications.
