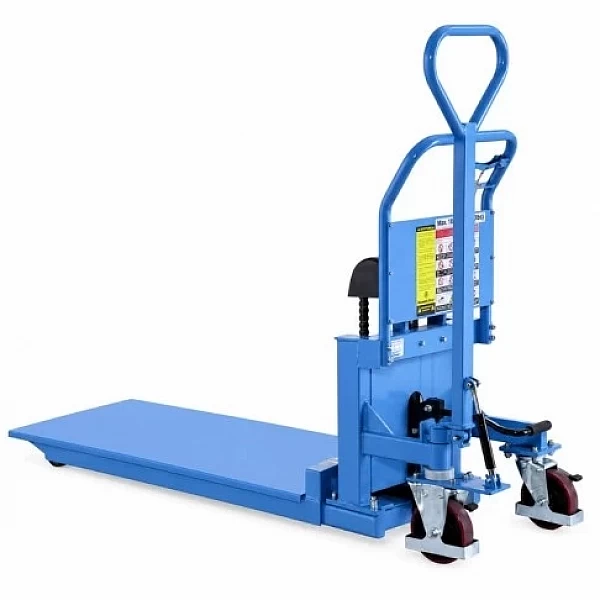

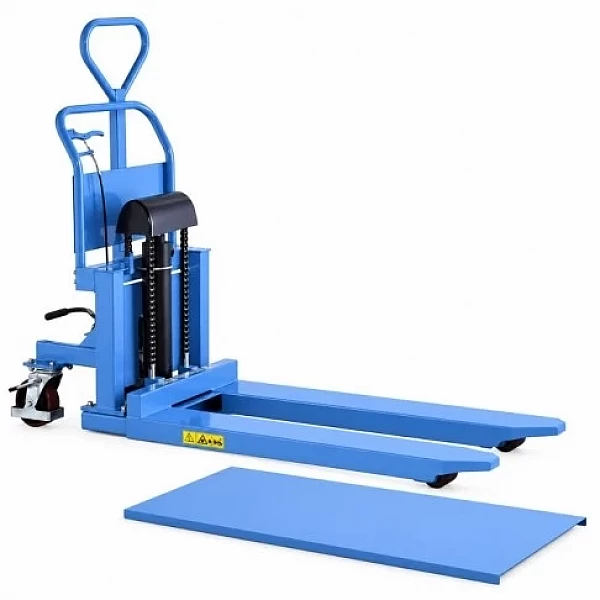

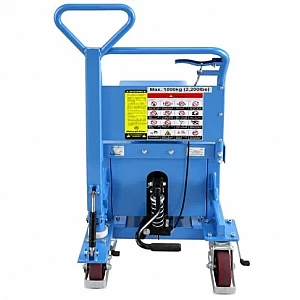

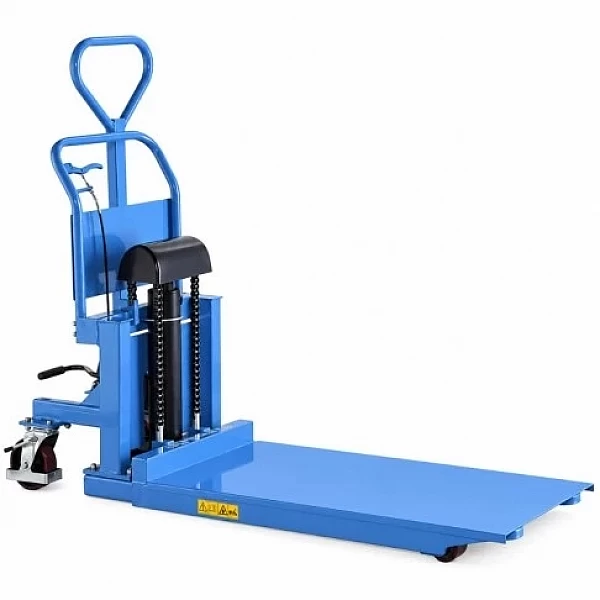

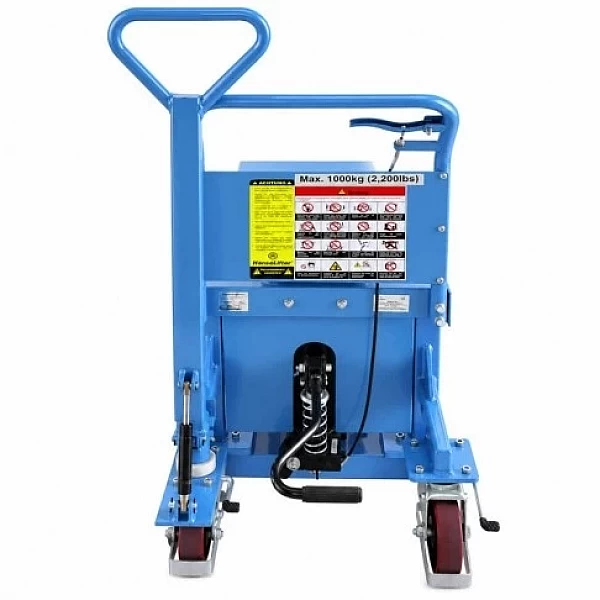

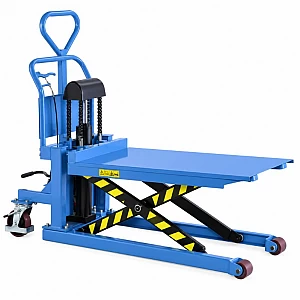

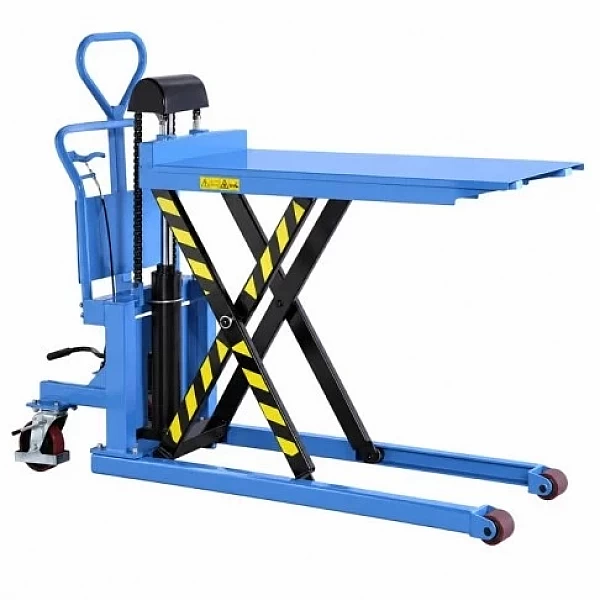

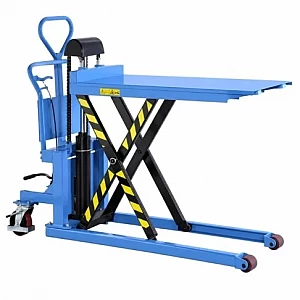

HanseLifter GPL 1-metric-ton Mobile Scissor Lift with Platform

HanseLifter GPL 1-metric-ton Mobile Scissor Lift with Platform

Country of origin: Germany; warranty period: 24 months

HanseLifter GPL – a professional mobile scissor lift with a platform, designed for convenient lifting of loads, transportation, and working at an ergonomic height in warehouses, production facilities, workshops, assembly lines, and logistics centers. The integrated loading platform allows for the convenient transport of boxes, tools, various parts, and other cargo, while the 1,000 kg lifting capacity ensures versatile application for everyday loading tasks. A unique advantage of this model is the ability to maneuver freely even when the platform is fully raised to a height of 830 mm. The foot-operated hydraulic lifting mechanism, the side-mounted control handle, and the durable polyurethane casters ensure smooth, comfortable, and efficient operation even during intensive use.

Technical Specifications:

• Lifting capacity: 1,000 kg
• Drive type: manual
• Lifting mechanism: hydraulic scissor lift
• Lifting control: foot pedal
• Distance to load center: 560 mm
• Wheelbase: 1280 mm
• Platform length: 1,110 mm
• Platform width: 538 mm
• Fork length: 1,110 mm
• Fork dimensions: 60 × 160 × 1,110 mm
• Outer fork width: 525 mm
• Maximum platform lifting height: 830 mm
• Minimum platform height: 90 mm
• Platform lifting stroke: 740 mm
• Control handle height in operating position: 1050–1300 mm
• Frame length without forks: 510 mm
• Front wheel size: 150 × 40 mm
• Rear wheel size: 70 × 70 mm
• Number of wheels, front/rear: 2 / 2
• Front track width: 430 mm
• Rear track width: 400 mm
• Ground clearance at the center of the wheelbase: 25 mm
• Turning radius: 1365 mm
• Number of foot pedal strokes to maximum height: approx. 35
• Lowering speed with/without load: adjustable
• Caster material: polyurethane (PU)
• Brake type: mechanical parking brake
• Control: manual hydraulic

The HanseLifter GPL 1-metric-ton is the right choice for companies that need a reliable, mobile, and ergonomically designed scissor lift with a platform. High lifting capacity, the ability to maneuver while the platform is raised, a convenient foot-operated lifting mechanism, and an integrated parking brake allow for more efficient organization of loading, assembly, and manufacturing processes. The sturdy steel construction, durable polyurethane casters, and simple controls ensure smooth, comfortable, and long-lasting use in everyday work conditions.
