Mobile spray booth 1400 MW Tools

Mobile spray booth 1400 MW Tools

Country of origin: China, warranty period – 24 months

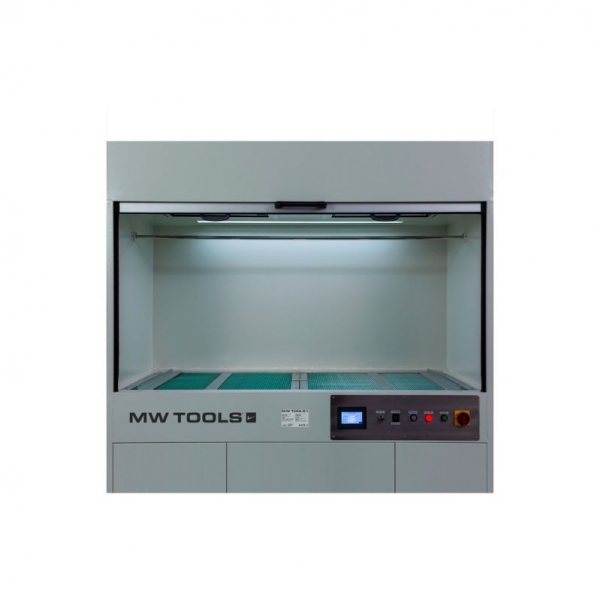

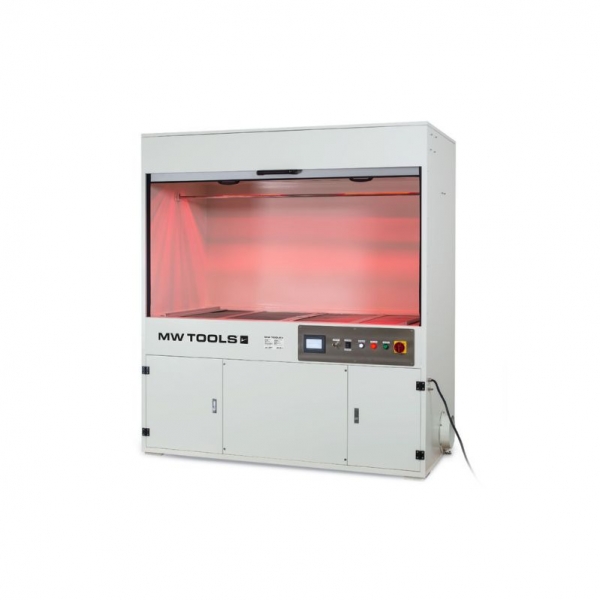

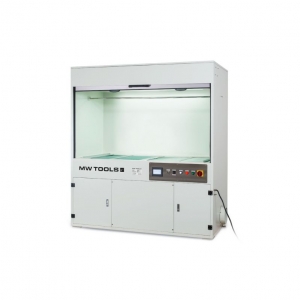

A mobile spray booth with an integrated extraction system and paint dryer, intended for dust-free spraying and drying of small and portable parts. The table suction system draws paint mist and vapors directly downward into the filters, while the closable front aluminum curtain and integrated infrared lamps ensure dust-resistant drying and high-quality results. The robust steel cabin, bright LED lighting, and mobile base allow safe operation across various workshop areas.

Functions:

• Large internal dimensions of 1.65 × 0.9 × 0.85 m in an enclosed steel cabin

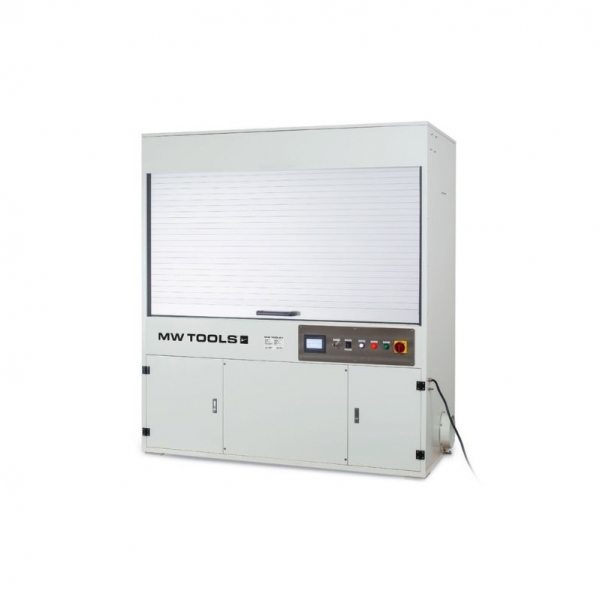

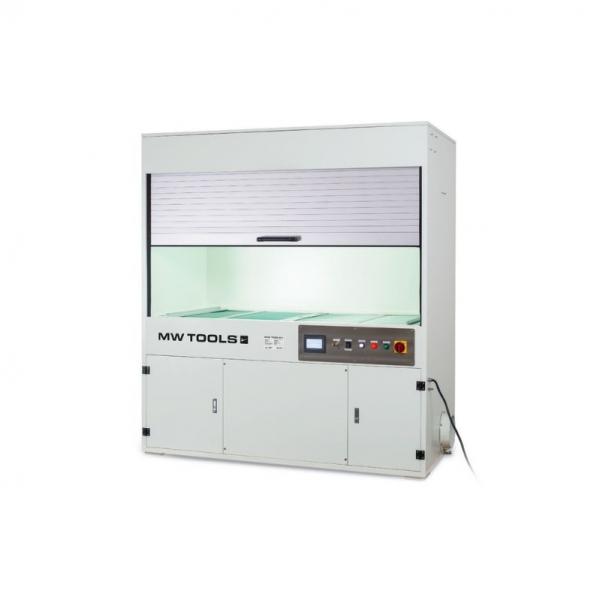

• Closable front aluminum curtain for dust-resistant drying
• Powerful 1.5 kW extraction motor with high airflow

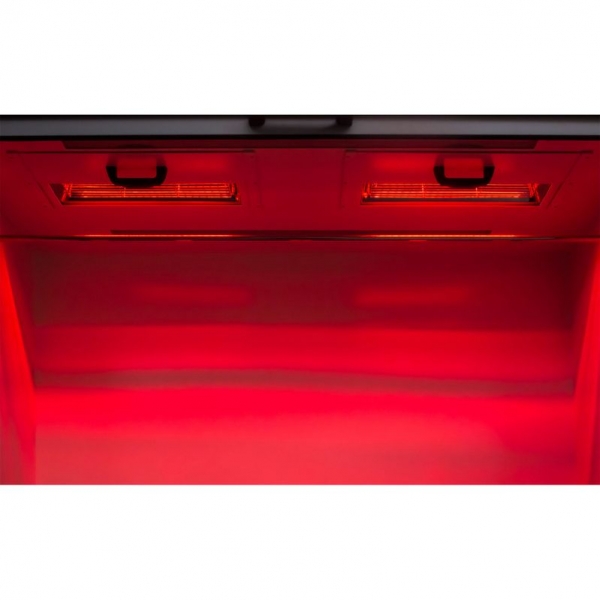

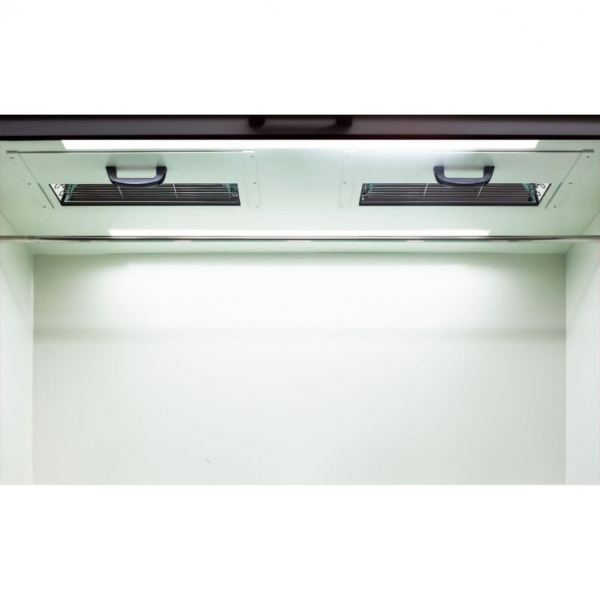

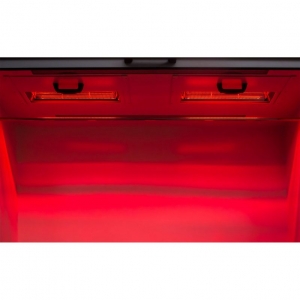

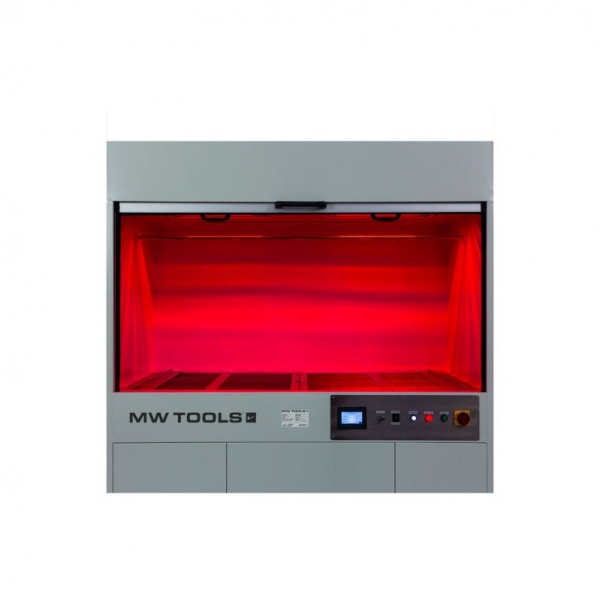

• 2 × 1000 W shortwave infrared lamps for paint drying

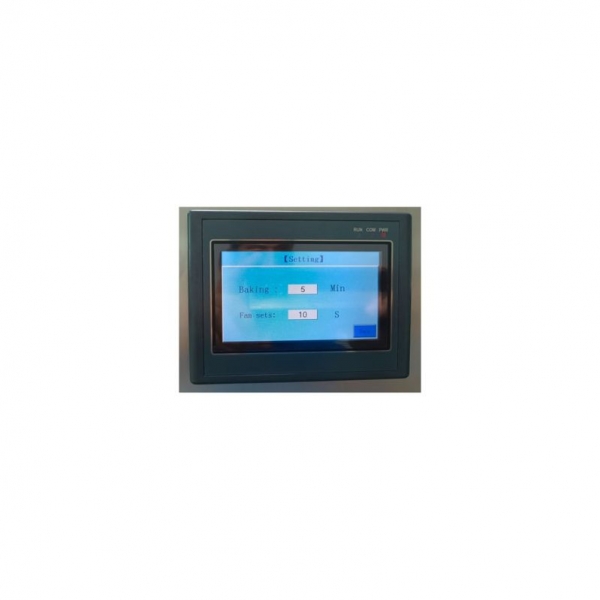

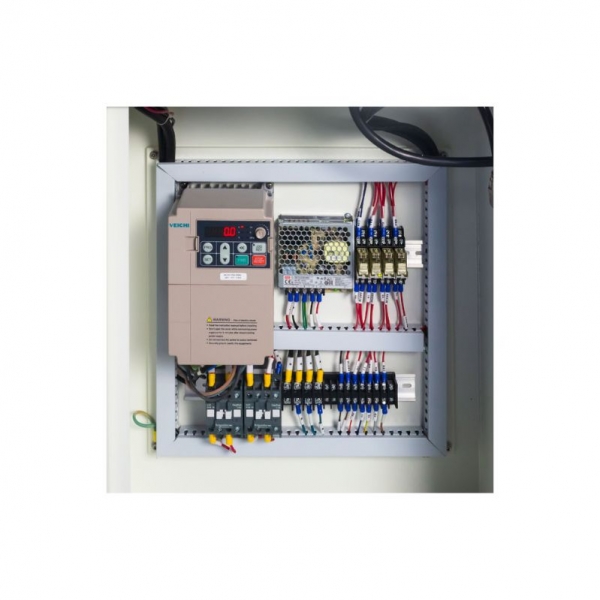

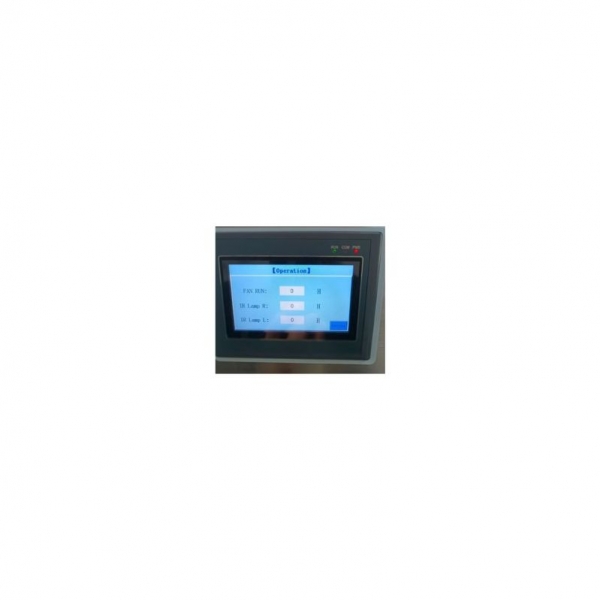

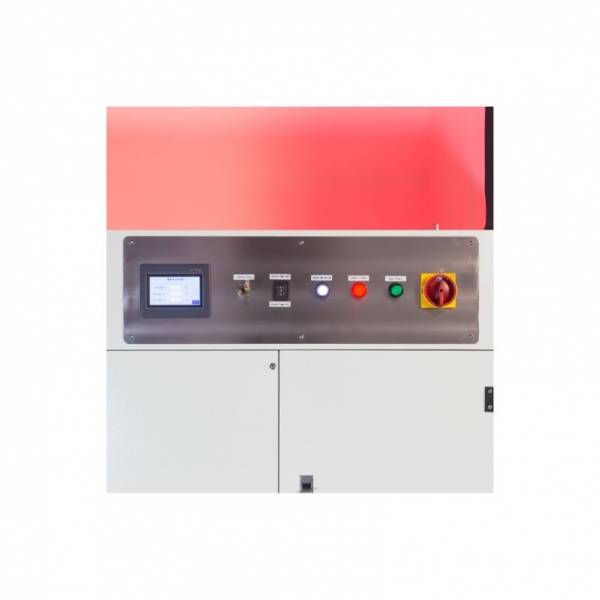

• PLC-controlled drying mode for optimal temperatures
• Front connection point for a spray gun; working pressure 4–6.2 bar

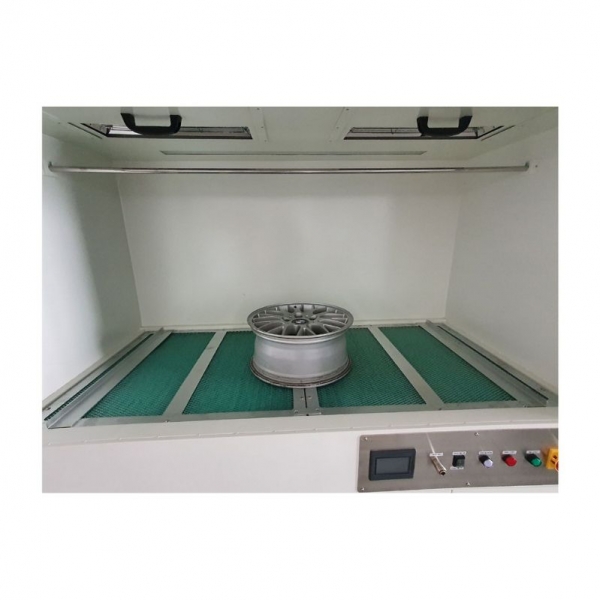

• Wheel support for convenient securing of parts
• Mobile cabin on 4 swivel casters
• Two-layer filtration: coarse (fiberglass) and paper filters
• Purified air discharged through a connectable exhaust hose

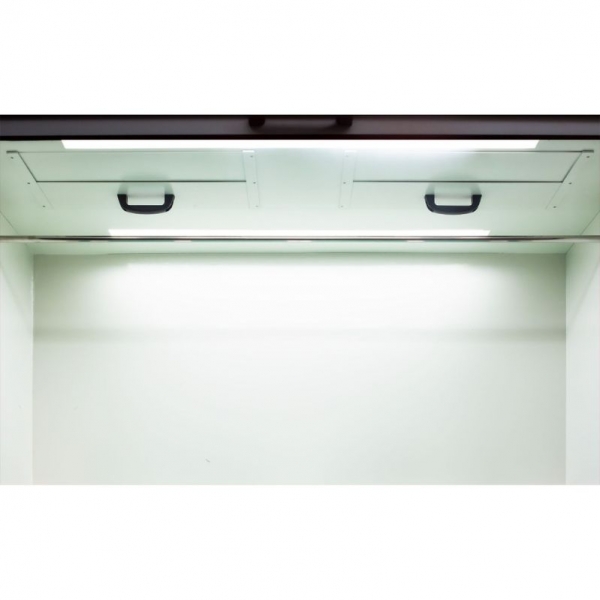

• Bright LED lighting in a spark-proof housing
• Suitable for environments where an ATEX zone does not apply

Technical specifications:

• Supply voltage: 230 V
• Extraction motor power: 1.5 kW
• Internal dimensions (L × W × H): 1650 × 900 × 850 mm
• Airflow: 2800 m³/h
• Lighting: LED 98 W, about 800 lx
• Filters: 2 (on the exhaust side)
• External dimensions (L × W × H): 1770 × 900 × 1940 mm
• Weight: 200 kg
• Infrared heaters: 2 × 1000 W (525 mm), shortwave
• Exhaust: connection nozzle Ø200 mm (exhaust hose not included)

Included:

• 1 set of filters: coarse (fiberglass) and paper
• 2 × 1000 W IR lamps (525 mm)
• Blow gun

The Mobile Spray Booth 1400 MW Tools is a reliable and efficient solution for a clean and safe painting area without complex ventilation systems. Choose a combination of quality, efficiency, and durability—purchase this booth and improve your workshop’s working conditions and result quality.
