Mobile spray booth 3600 MW Tools

Mobile spray booth 3600 MW Tools

Country of origin: China, warranty period – 24 months

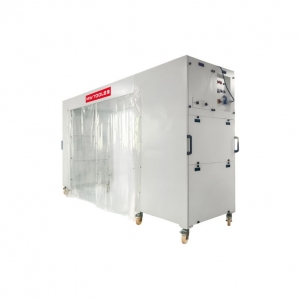

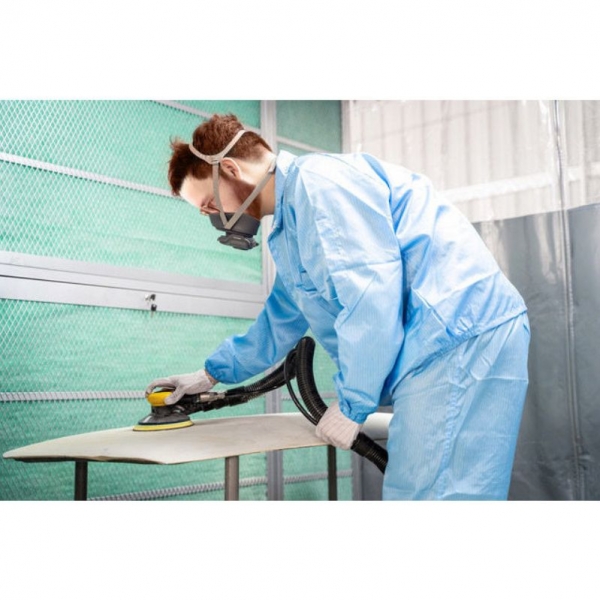

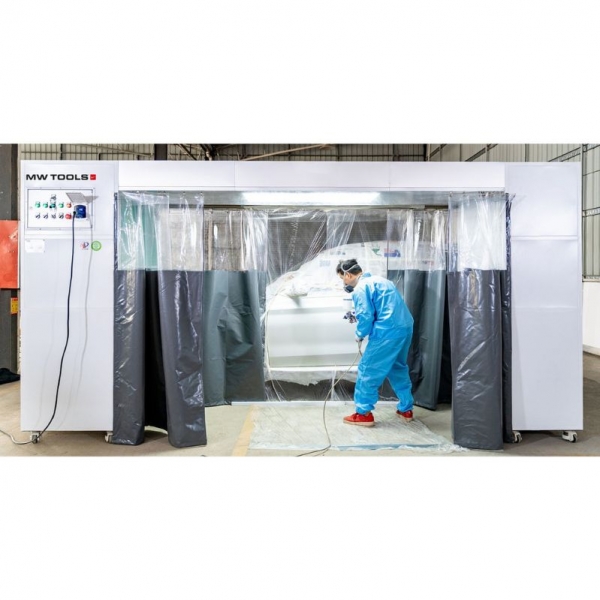

A compact and mobile spray booth designed for fast, local body repair work on site without moving the vehicle to a fixed booth. It is a logistically convenient solution that saves time and costs. In the enclosed space you can sand, spray, bond, and dry, while the recirculating air system with multilayer filtration ensures a clean and healthy working environment. Large inlet/outlet surfaces and a powerful motor maintain a steady airflow, and LED lighting provides uniform visibility across the entire work area.

Functions:

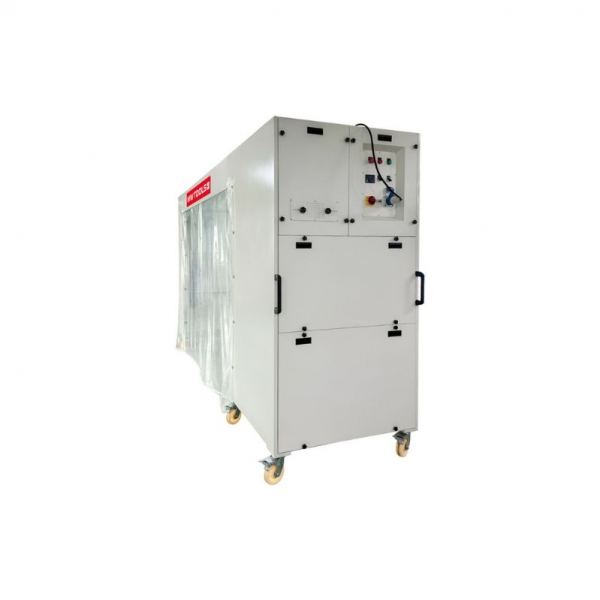

• Mobility on casters—the booth can be used in the middle of the workshop or next to the vehicle, even without external extraction

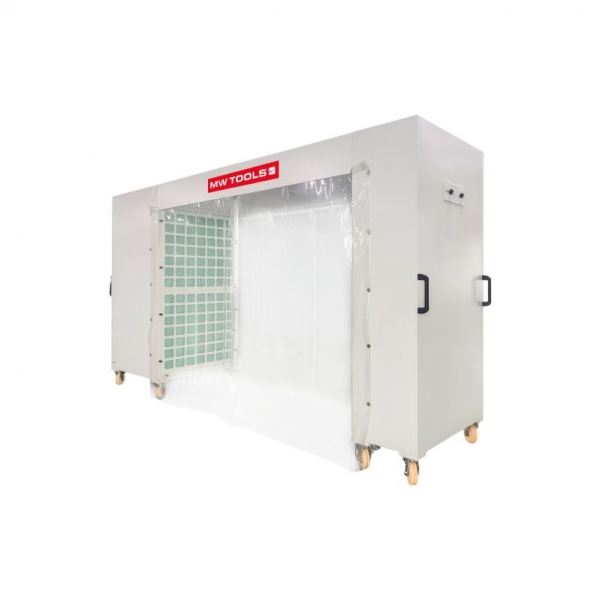

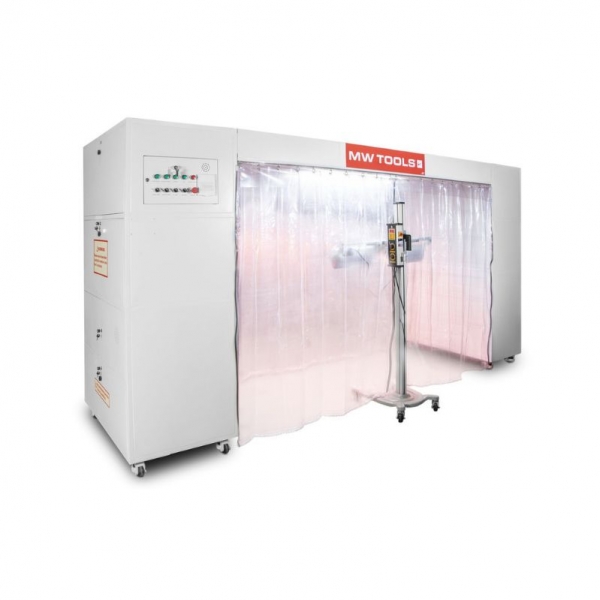

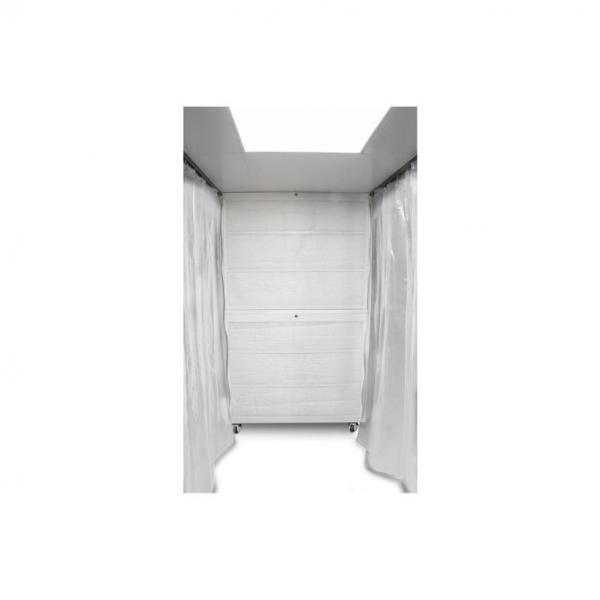

• Two sets of transparent PVC curtains on both long sides—parts or vehicles can be fully or partially positioned inside and isolated from the surroundings
• Work can be carried out entirely inside the booth, or the booth can be positioned against the vehicle with the repair area masked off with protective tape

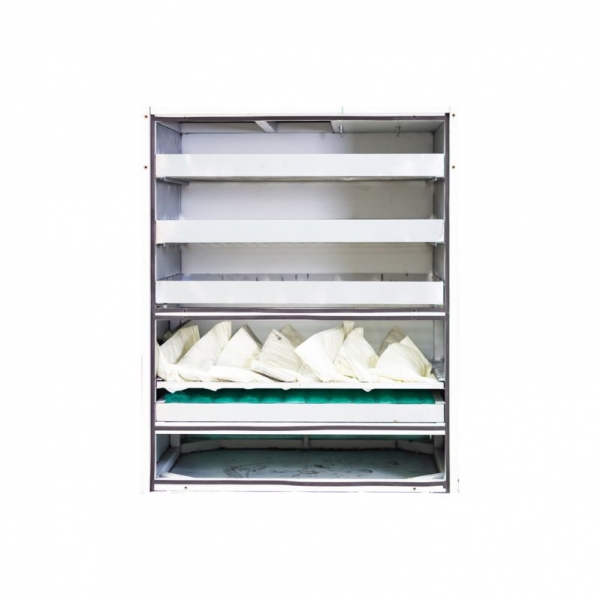

• Seven-layer efficient air filtration; purified air is returned to the booth (recirculation)

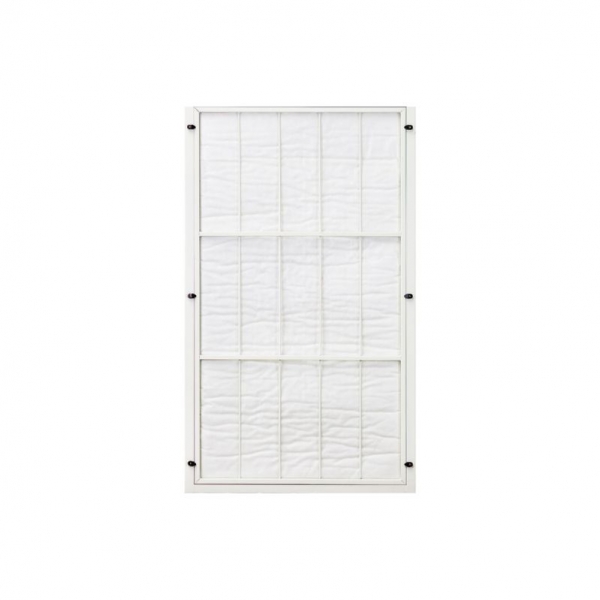

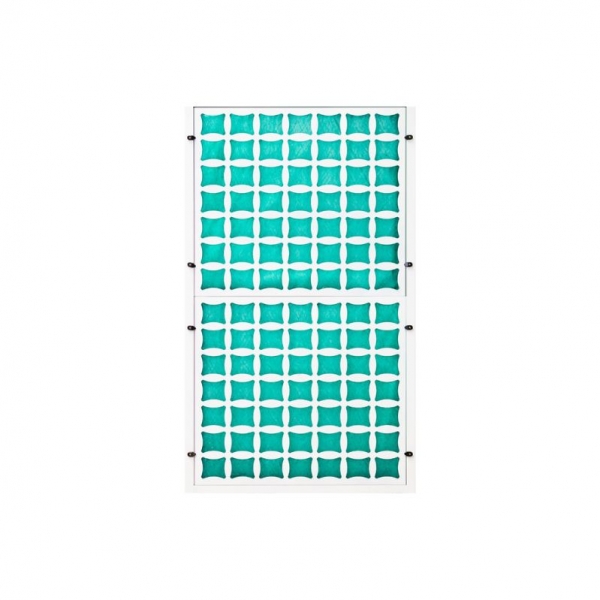

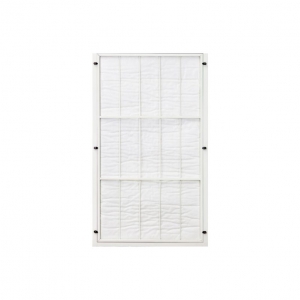

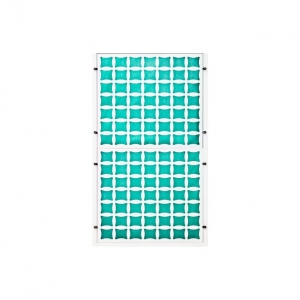

• Filters used: fiberglass primary filter and pre-filter, medium-efficiency filter, bag filter, and 3-layer honeycomb activated carbon filter (against dust, chemical vapors, and odors)
• Large inlet/outlet areas and a powerful motor ensure a constant airflow of 4100–7370 m³/h
• Bright, evenly distributed LED lighting (about 800 lx) for uniform illumination
• Frame coated with epoxy paint for durability and longevity

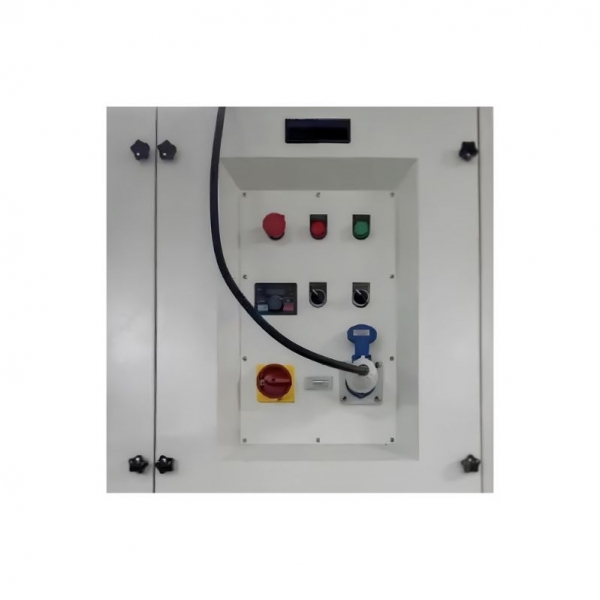

• Power supply 1 × 230 V—fits any workshop outlet (supplied with a blue industrial plug)
• Delivered on 3 pallets; simple and quick assembly by two people
• Suitable for environments where an ATEX zone does not apply

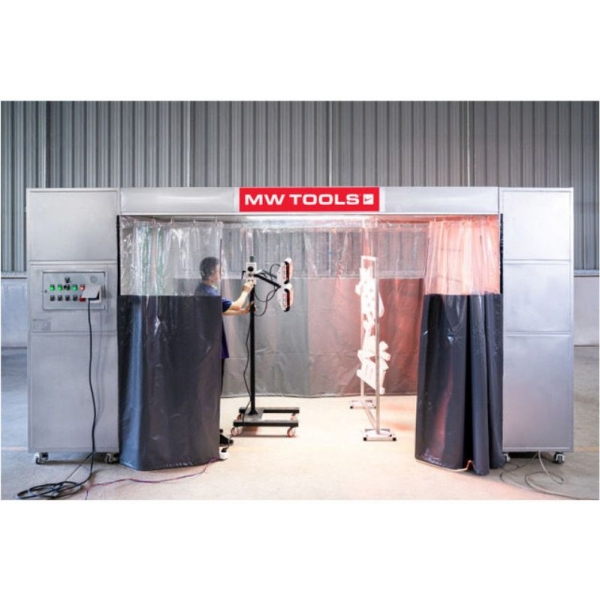

• Option to place a mobile paint dryer inside after spraying (optional) for a complete cycle

Technical specifications:

• Supply voltage: 230 V
• Motor power: 2.2 kW
• Internal dimensions (L × W × H): 2500 × 1100 × 2000 mm
• Airflow: 4100–7370 m³/h
• Lighting: LED, about 800 lx (98 W)
• Filters: 2 (inlet) + 5 (outlet), 7 layers in total
• External dimensions (L × W × H): 4060 × 1100 × 2250 mm
• Weight: 300 kg

The Mobile Spray Booth 3600 is a reliable, efficient, and economical solution for small repair jobs without the need for an expensive fixed booth. Choose a combination of quality, efficiency, and durability—purchase this booth and improve your workshop’s productivity, process control, and result quality.
