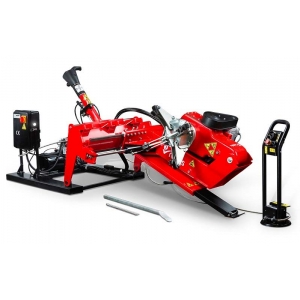

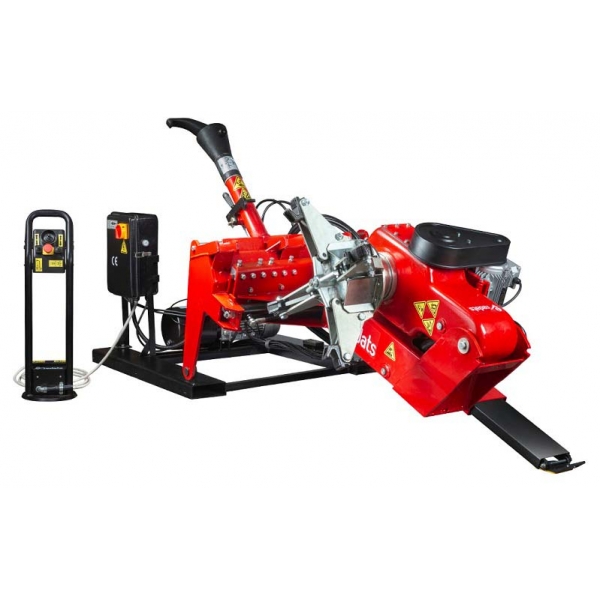

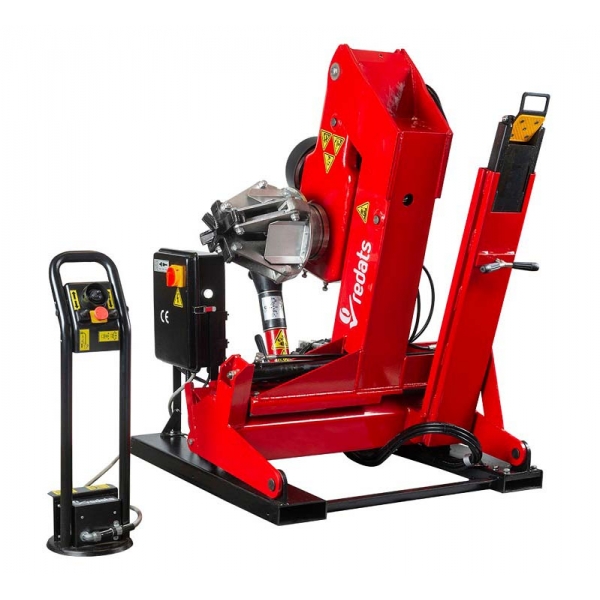

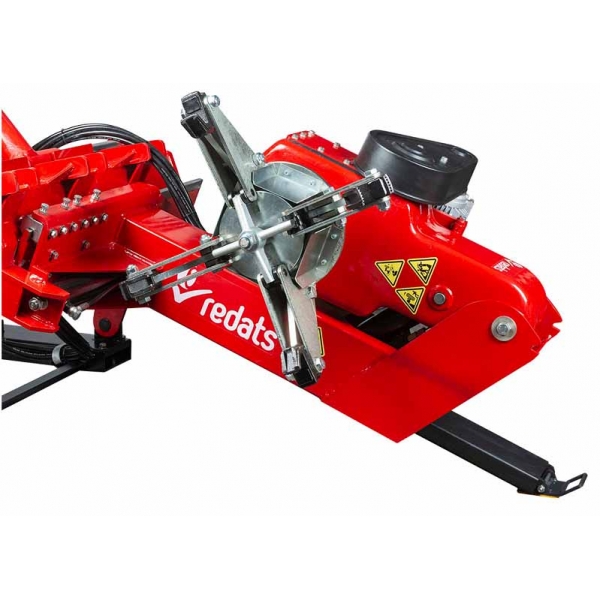

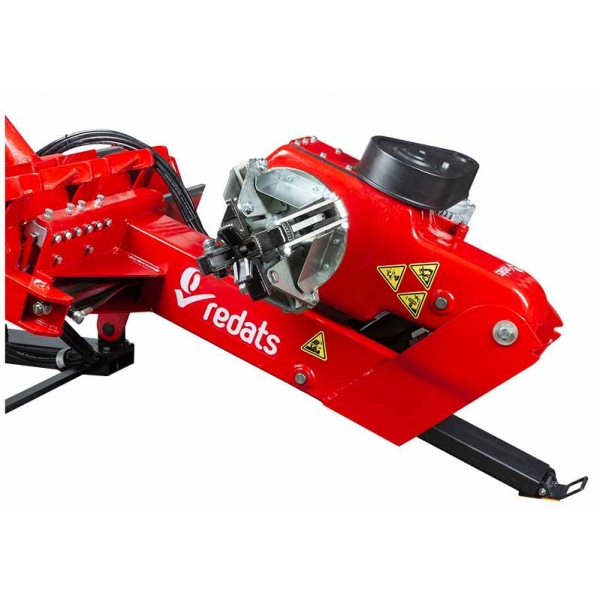

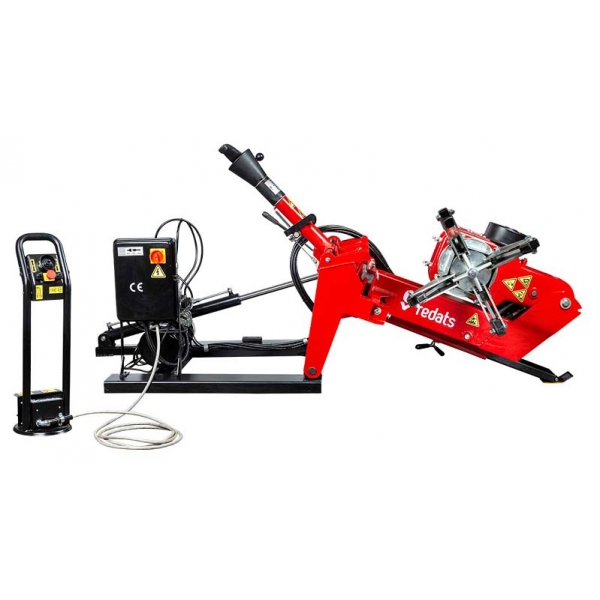

Mobile truck tire mounting machine REDATS MTM-26

Mobile truck tire mounting machine REDATS MTM-26

Country of origin: Poland, warranty period – 24 months

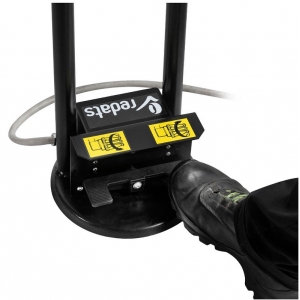

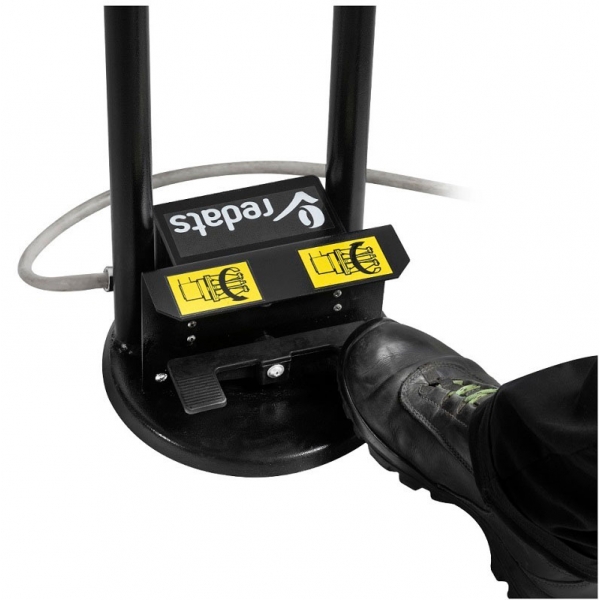

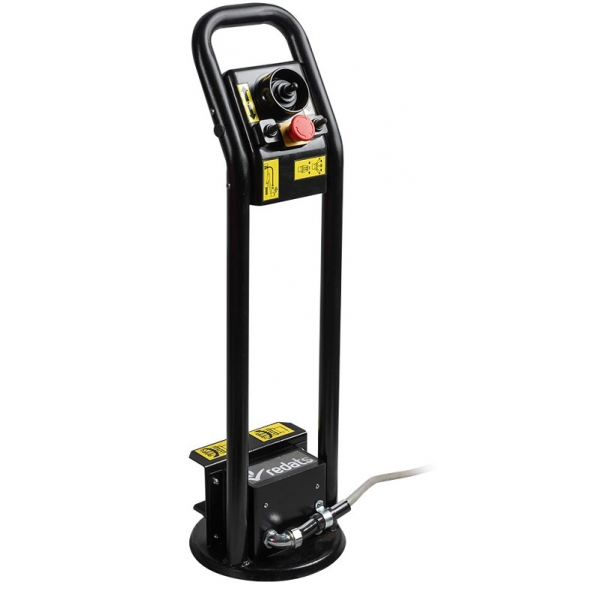

This Redats MTM-26 Mobile Tire Mounter is designed specifically for customers who work with a variety of truck, industrial and agricultural tires up to 26". The machine has been designed to provide exactly the same level of efficiency as a stationary tire mounting machine. Also, they are very easy to use, control is carried out using a remote control, which provides additional comfort and convenience. With the help of the Redats MTM-26 machine, you will have the opportunity to expand the range of already offered services or create a completely new range of offered services.

Features:

• Perfect for a mobile tire service
• For companies with large fleets of trucks/construction machinery
• Provide services on the road
• Ability to work with many truck wheels, from 13" to 26"
• Ability to work with tires weighing up to half a ton
• The machine can be installed in a special purpose minibus

Technical data:

• Operating principle: automatic
• Application: for agricultural, industrial machinery and truck tires
• Inner Rim Lock: 13-26"
• Hydraulic pump power: 1.58 kW / 400 V / 50 Hz
• Electric motor power: 1.5 kW / 400 V / 50 Hz
• Maximum wheel width: 600 mm
• Maximum wheel diameter: 1300 mm
• Maximum wheel weight: 500kg
• Noise level: <70 dB
• Weight: 600 kg
• Dimensions: 1430 x 1150 x 980 mm

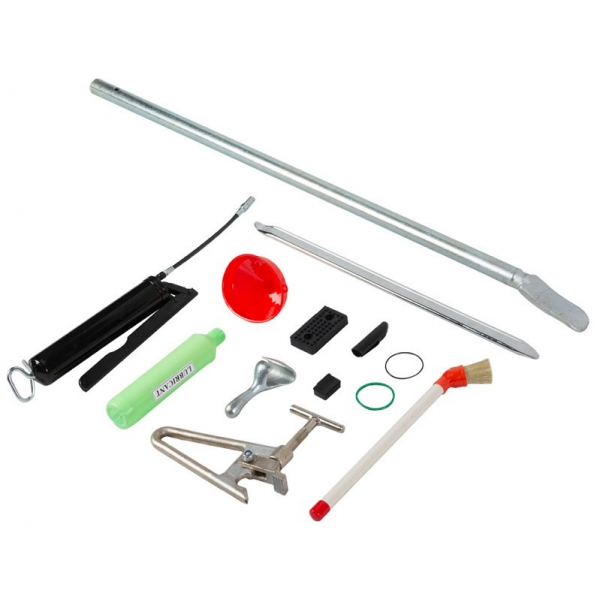

Complete set:

• Mobile truck tire mounting machine Redats MTM-26
• Lever for tire pressure, small
• Lever for tire pressure, large
• Lubricating paste
• Auxiliary arm (assistant arm)

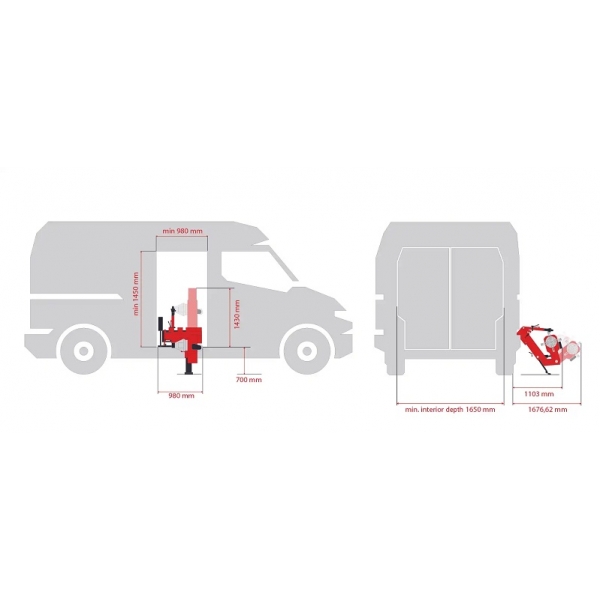

Installation site requirements:

• Minimum door height: 1450 mm
• Minimum door width: 980 mm
• Minimum depth: 1650 mm
• Maximum door height: 700mm

Recommendations for an electric generator:

• Generated voltage: 380 / 400 / 415 V
• DC voltage generated: 12 V
• Frequency: 50 / 60 Hz
• Starting method: electric
• Output power: 10 kW
