Multi-spindle drilling machine Holzmann BBSM50AUTO_400V

Multi-spindle drilling machine Holzmann BBSM50AUTO_400V

Country of origin: Austria, warranty period - 24 months

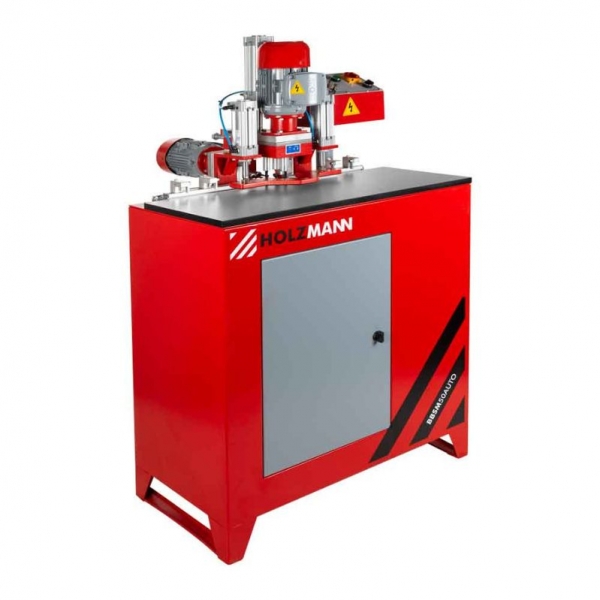

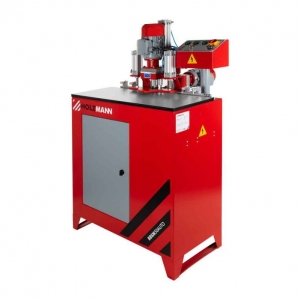

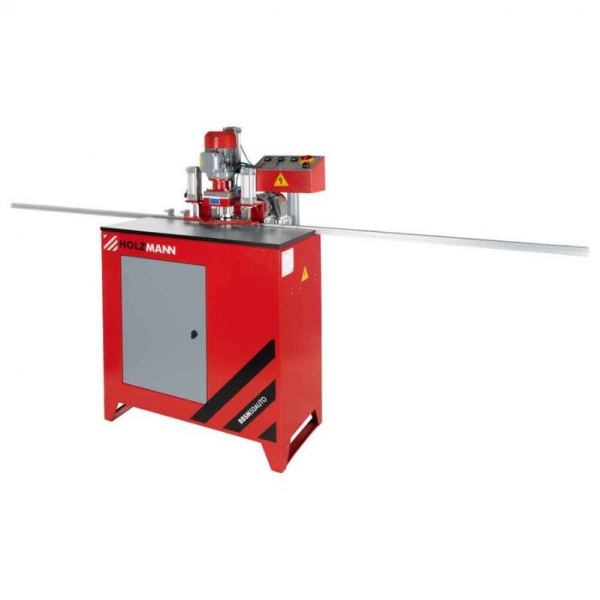

The HOLZMANN BBSM50AUTO is an automatic drilling machine designed for precise and fast dowel and eccentric clamp connections in furniture panel assembly. The machine performs drilling operations in two separate steps: first, the side and bottom holes are drilled in one workpiece, followed by connector holes in the second workpiece. Its three-motor system ensures efficient operation, and the included drill bits allow immediate production startup.

Functions:

• Automatic dowel drilling machine for furniture panel connections

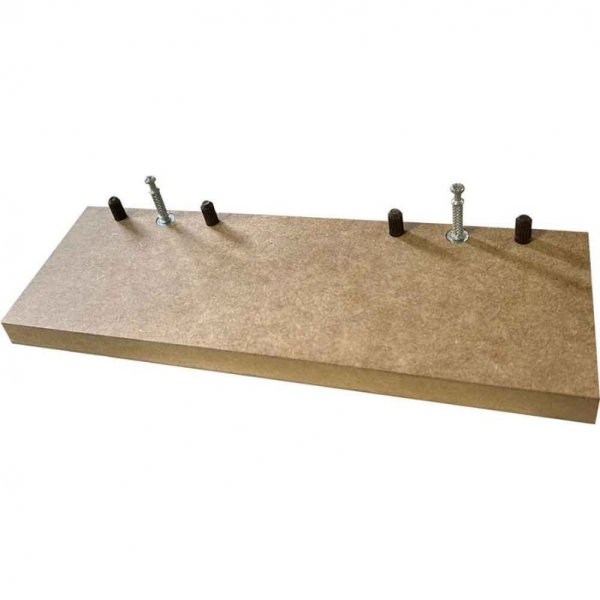

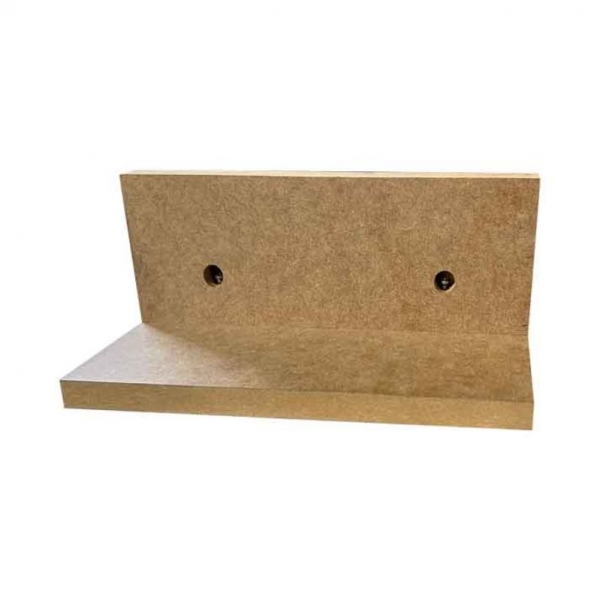

• Capable of drilling side and eccentric holes in one workpiece and connector holes in another – two separate work steps
• 3 motors: upper (550 W), lower (250 W), and horizontal (550 W)
• Maximum drilling depth: 60 mm (upper holes), 25 mm (bottom hole), 40 mm (side holes)
• Includes base frame with door
• Required compressed air supply: 0.6–0.8 MPa
• Included: machine with all necessary drill bits

Technical specifications:

• Voltage: 400 V / 50 Hz
• Table dimensions: 800 x 320 mm
• Overall dimensions: 800 x 800 x 1410 mm
• Maximum workpiece thickness: 50 mm
• Sound pressure level: 85 dB(A)
• Net weight: 107.5 kg
• Gross weight: 146 kg
• Packaging dimensions (W x L x H): 900 x 900 x 1550 mm
