New

HanseLifter PH0809 800 kg Pallet Jack

Lifting height – 920 mm

Based on 0 reviews. - Write a review

SKU: BD71659
SKU:: GE0023866

1,649.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

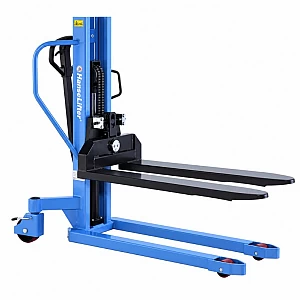

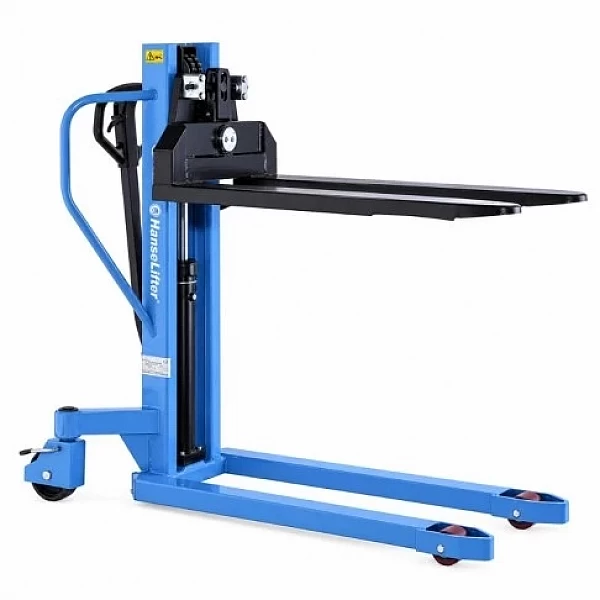

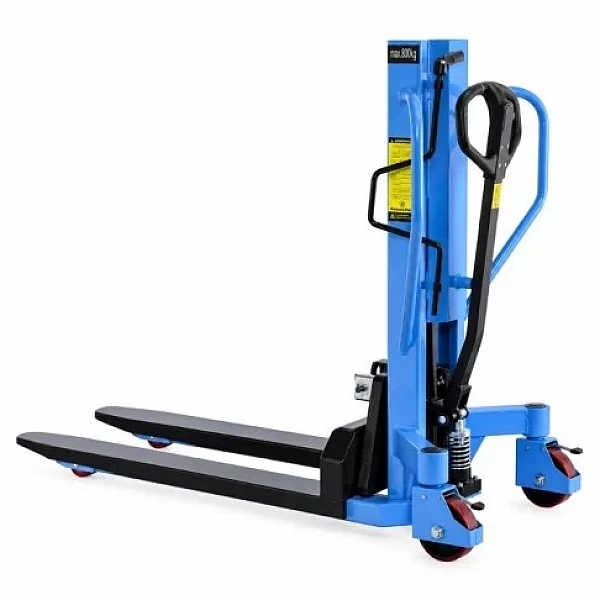

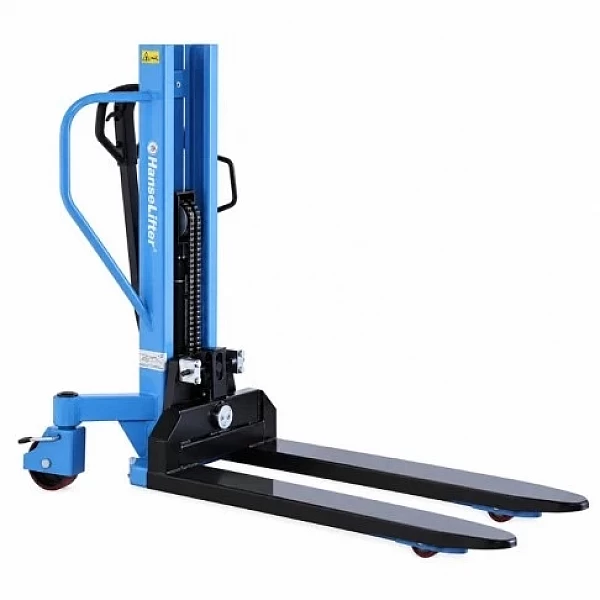

Pallet Jack, 800 kg HanseLifter PH0809

Country of origin: Germany, warranty period – 24 months

The HanseLifter PH0809 is a professional manual pallet jack designed for convenient lifting, transporting, and positioning of loads in warehouses, manufacturing facilities, retail locations, logistics centers, and parcel distribution centers. Its compact design and low overall height of 1,320 mm allow for convenient use in confined spaces and rooms with low ceilings. A lifting capacity of 800 kg and a maximum fork lift height of 900 mm make it possible to efficiently lift pallets, shipping containers, and other loads to a convenient working height. The manual hydraulic lifting mechanism, ergonomic control handle, and durable polyurethane casters ensure smooth, precise, and comfortable operation. Integrated parking brakes on both steering wheels help maintain the lift’s stability during loading and unloading.

Technical Specifications:

Lifting capacity: 800 kg
Drive type: manual
Lifting mechanism: hydraulic
Lifting control: manual control lever
Distance to load center: 575 mm
Wheelbase: 1250 mm
Fork length: 1,150 mm
Fork dimensions: 50 × 150 × 1,150 mm
Outer fork width: 540 mm
Maximum fork lift height: 900 mm
Minimum fork height: 88 mm
Fork lift stroke: 812 mm
Free lift height: 812 mm
Mast height in lowered position: 1320 mm
Mast height in raised position: 1,320 mm
Clearance height: 1,320 mm
Frame length without forks: 490 mm
Front wheel size: 150 × 50 mm
Rear wheel size: 80 × 70 mm
Number of wheels, front/rear: 2 / 2
Front track width: 610 mm
Rear track width: 390 mm
Ground clearance at the center of the wheelbase: 30 mm
Turning radius: 1340 mm
Wheel material: polyurethane (PU)
Braking system: parking brakes on both steering casters
Fork tilt function: none
Control: manual hydraulic

The HanseLifter PH0809 800 kg is the right choice for companies that need a reliable, compact pallet jack designed for intensive daily use. Its low overall height, free-lift function, convenient manual operation, and integrated parking brakes allow for efficient loading, transport, and order-picking tasks even in confined spaces. The sturdy construction, durable polyurethane casters, and simple hydraulic mechanism ensure smooth, convenient, and long-lasting use in warehousing, manufacturing, and logistics.

Features

Manual Pallet Lifting and Transport
An 800 kg lifting capacity allows for the lifting and transport of various warehouse and industrial loads
A maximum fork lift height of 900 mm allows for convenient loading, unloading, and order picking
The compact design is suited for use in narrow warehouse aisles and confined spaces
The low overall height of 1,320 mm allows the lift to be used in rooms with lower ceilings
The free-lift function allows forks to be raised without increasing the lift truck’s overall height
The manual hydraulic mechanism ensures smooth and reliable lifting of loads
Lifting via the control handle allows for convenient adjustment of the forks’ height
The lever integrated into the control handle allows for precise control of load lowering
Smooth lowering helps position more delicate loads more safely and precisely
The design without a fork tilt function ensures simple and reliable operation
Integrated parking brakes on both steering casters help prevent the lift from moving unintentionally
A sturdy steel frame ensures structural stability and durability
Polyurethane casters feature quiet rolling, wear resistance, and are suitable for delicate indoor floors
The compact chassis and small turning radius facilitate maneuvering in tight workspaces
The standard 1,150 mm fork length is suitable for transporting Euro pallets and pallets of other standards
The lift truck is suitable for use on production lines, in parcel distribution centers, warehouses, and workshops
The manual hydraulic mechanism does not require electricity or battery charging
