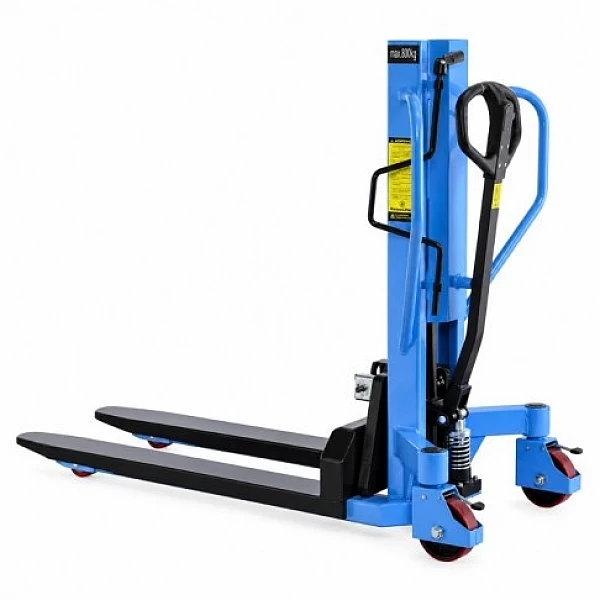

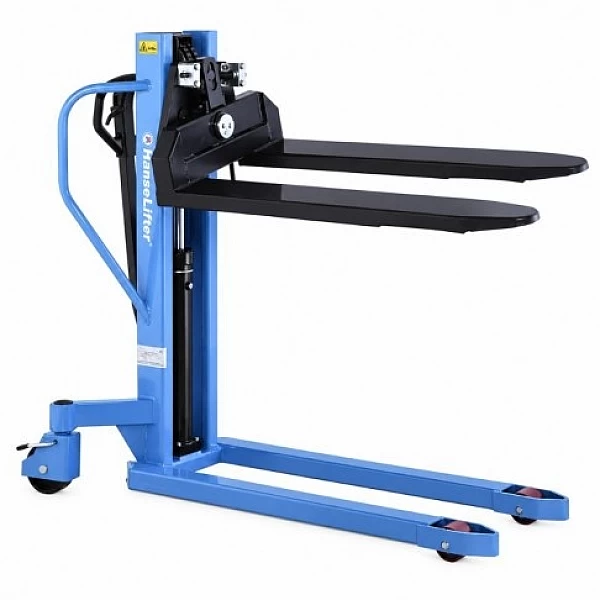

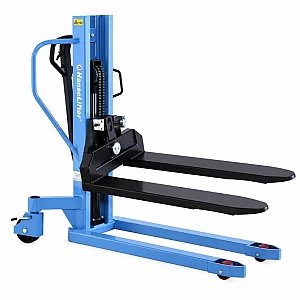

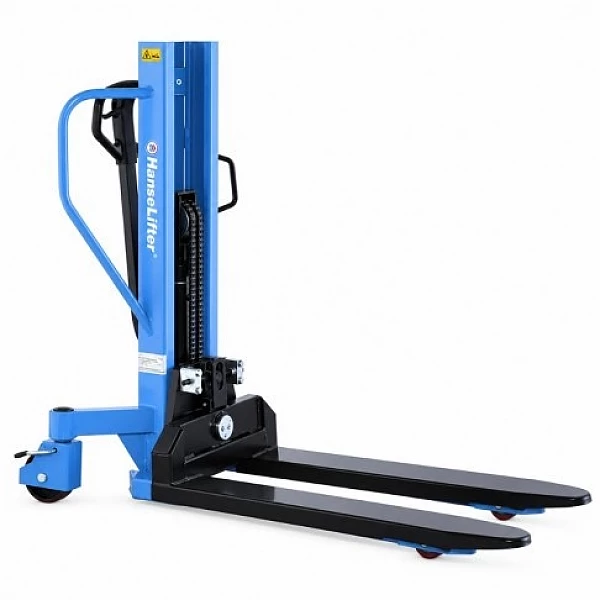

Pallet Jack with Tilt Function, 800 kg HanseLifter PHK0809

Pallet Jack with Tilt Function, 800 kg HanseLifter PHK0809

Country of origin: Germany, warranty period – 24 months

The HanseLifter PHK0809 is a professional manual pallet jack with a tilt function, designed for convenient lifting, transporting, and positioning of loads in warehouses, production facilities, workshops, logistics centers, and parcel distribution centers. A unique advantage of this model is the ability to tilt the forks up to a 20° angle, making it easier to reach and remove goods from shipping crates, metal containers, and other cargo containers. With a lifting capacity of 800 kg and a maximum fork lift height of 900 mm, it conveniently lifts loads to an ergonomic working height, reducing the physical strain on employees. The compact design, manual hydraulic mechanism, and durable polyurethane wheels ensure smooth and reliable operation. Integrated parking brakes on both steering casters help maintain the lift truck’s stability during loading, unloading, and order picking.

Technical Specifications:

• Lifting capacity: 800 kg
• Drive type: manual
• Lifting mechanism: hydraulic
• Lifting control: manual control lever
• Fork tilt function: yes
• Maximum fork tilt angle: 20°
• Distance to load center: 575 mm
• Wheelbase: 1250 mm
• Fork length: 1,150 mm
• Fork dimensions: 50 × 150 × 1,150 mm
• Outer fork width: 540 mm
• Lifting range: 88–920 mm
• Fork lift stroke: 812 mm
• Lifting arm height in the lowered position: 1,320 mm
• Lifting mast height when raised: 1320 mm
• Clearance height: 1320 mm
• Frame length without forks: 490 mm
• Front wheel size: 150 × 50 mm
• Rear wheel size: 80 × 70 mm
• Number of wheels, front/rear: 2 / 2
• Front track width: 610 mm
• Rear track width: 390 mm
• Ground clearance at the center of the wheelbase: 30 mm
• Turning radius: 1340 mm
• Wheel material: polyurethane (PU)
• Braking system: parking brakes on both steering casters
• Control: manual hydraulic

The HanseLifter PHK0809 800 kg is the right choice for companies that need a reliable, ergonomic pallet jack with a tilt function, designed for intensive daily use. The ability to tilt the forks up to a 20° angle, high lifting capacity, and adjustable lifting height allow for more efficient order picking, assembly, and transport operations, reducing the physical strain on employees. Its compact design, durable polyurethane wheels, integrated parking brakes, and simple hydraulic controls ensure smooth, comfortable, and long-lasting operation in warehousing, manufacturing, and logistics.
