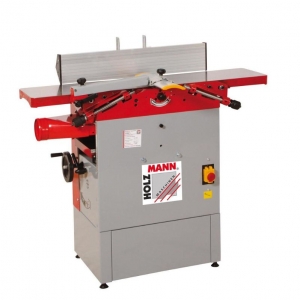

Planer-thicknesser Holzmann HOB260NL

Planer-thicknesser Holzmann HOB260NL

Country of origin: Austria, warranty period - 24 months

Note: Available in 400V or 230V versions

The Holzmann HOB260NL planer-thicknesser is a machine designed for professional use, featuring a solid base, cast iron table, and a three-knife cutter block. The machine ensures excellent stability, user-friendly operation, and the ability to efficiently process workpieces up to 185 mm thick. The integrated dust extraction port ensures a clean working environment, while the table construction allows easy switching between planing and thicknessing modes.

Functions:

• Robust metal cabinet ensures stable operation
• Adjustable aluminum fence (720 x 135 mm), angle 90°–45°

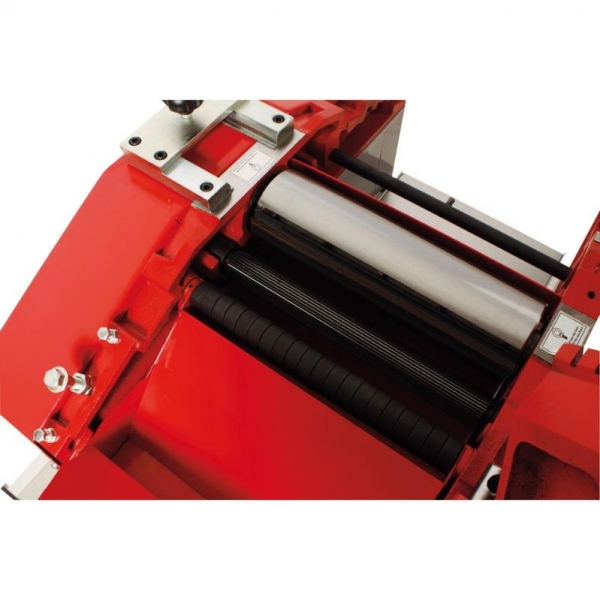

• Three-knife cutter block for effective wood processing
• Side-folding table allows convenient thicknessing
• Option to disable feed mechanism during planing
• Dust extraction port ensures a clean workspace

Technical specifications:

• Maximum cutting depth: 3 mm
• Planing table dimensions: 1090 x 250 mm
• Thicknessing table dimensions: 600 x 185 mm
• Thicknessing table height: 855 mm
• Maximum workpiece height: 185 mm
• Planing fence dimensions: 720 x 135 mm
• Fence tilt: 90°–45°
• Cutter block diameter: 75 mm
• Cutter block speed: 4000 rpm
• Number of knives: 3
• Feed speed: 8 m/min
• Motor power (S6): 2100 W
• Motor power (S1): 1500 W
• Voltage: 400 V
• Dust extraction port diameter: 100 mm
• Overall dimensions: 1100 x 420 mm
• Net weight: 150 kg
• Gross weight: 160 kg
• Packaging dimensions (L x W x H): 1130 x 500 x 740 mm
