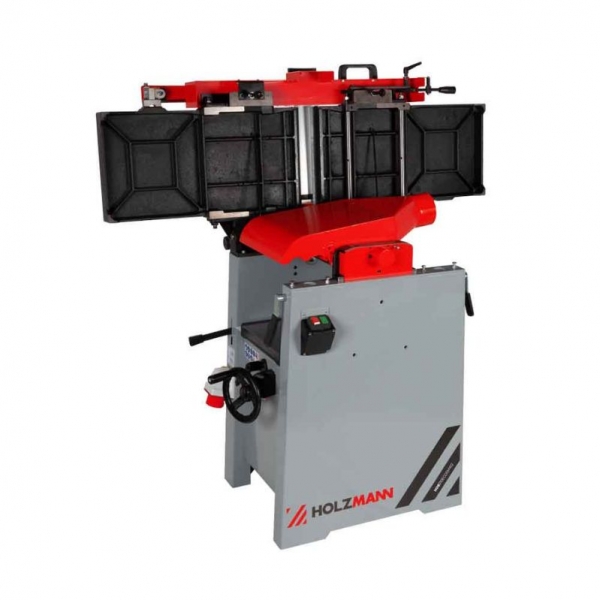

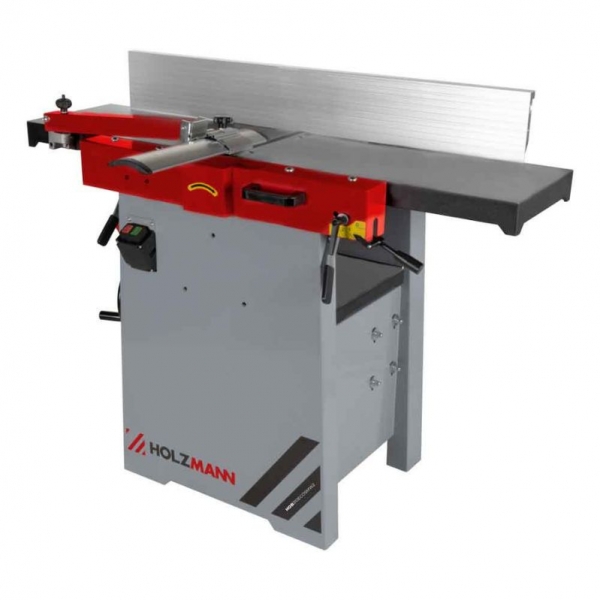

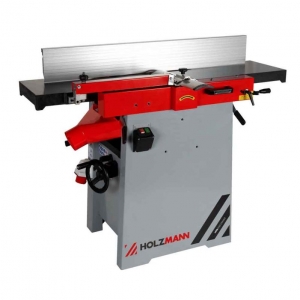

Planer-thicknesser Holzmann HOB310ECOSMW2

Planer-thicknesser Holzmann HOB310ECOSMW2

Country of origin: Austria, warranty period - 24 months

Note: Available in 400V or 230V versions

The Holzmann HOB310ECOSMW2 planer-thicknesser is professional woodworking equipment featuring a spiral cutter head and 310 mm planing width. The easy switching between planing and thicknessing modes makes it convenient for use in both small and large workshops. Precise height adjustment, high-quality table construction, and a powerful motor ensure efficient and smooth operation. The machine can also be equipped with a mortising unit.

Functions:

• Smooth central height adjustment of the thicknessing table with scale

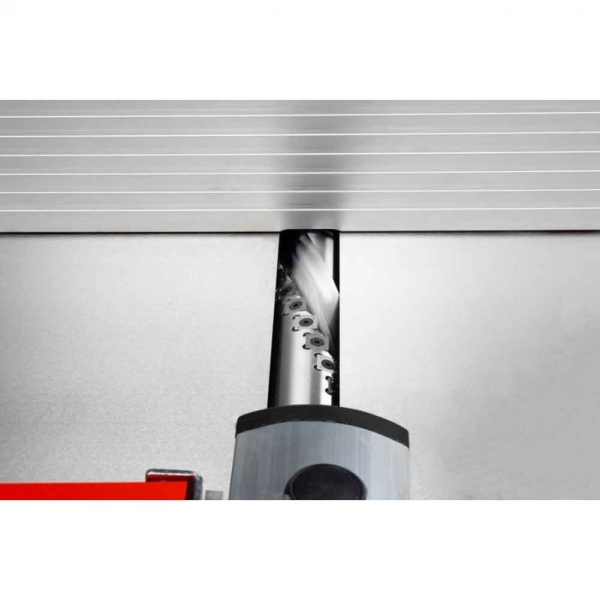

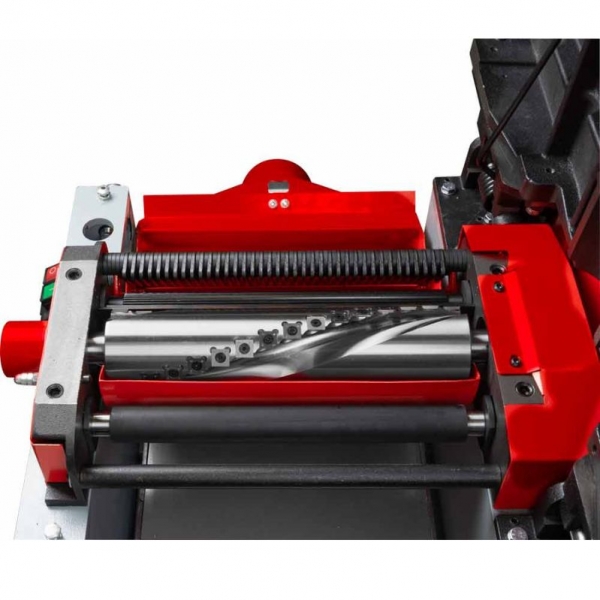

• Precisely mounted spiral cutter head
• Spiral infeed roller
• Tiltable planing fence (0°–45°)
• Easy switching between working modes – the planing table can be folded up

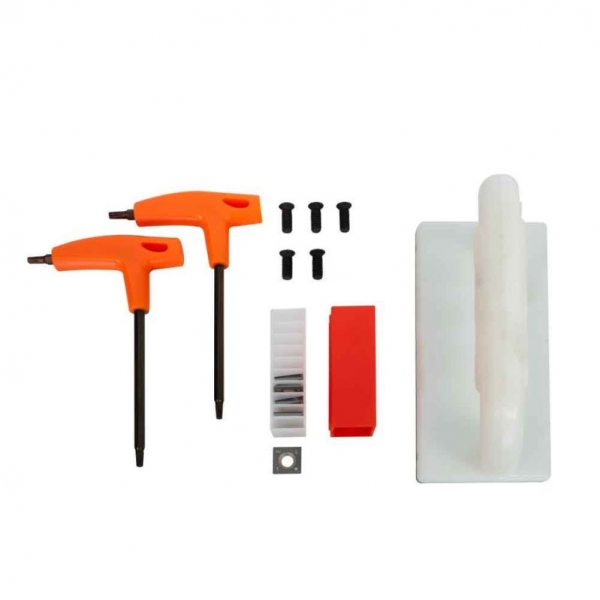

• Included: planing fence, 30 pre-installed cutter inserts (15 x 15 x 2.5 mm, 30°), 5 spare inserts, mounting tool, push block
• Optional accessories: mortising unit HOB310ECOLL, magnetic setting jig, lubricant, dust extraction system

Technical specifications:

• Planing table dimensions: 1285 x 310 mm
• Thicknessing table dimensions: 545 x 308 mm
• Thicknessing table height: 852 mm
• Maximum thicknessing cutting depth: 3 mm
• Maximum planing cutting depth: 4 mm
• Maximum workpiece height: 225 mm
• Planing fence dimensions: 1100 x 150 mm
• Fence tilt: 0°–45°
• Cutter block diameter: Ø70 mm
• Cutter block speed: 5500 rpm
• Feed speed: 5.5 m/min
• Motor power (S1): 2200 W
• Voltage: 400 V / 50 Hz
• Dust extraction port diameter: Ø100 mm
• Overall dimensions: 1285 x 750 x 1000 mm
• Sound power level: 103 dB(A)
• Sound pressure level: 89.5 dB(A)
• Net weight: 179.50 kg
• Gross weight: 206 kg
• Packaging dimensions: 1320 x 565 x 960 mm (L x W x H)
