Planer-thicknesser Holzmann HOB410PROSMW4_400V

Planer-thicknesser Holzmann HOB410PROSMW4_400V

Country of origin: Austria, warranty period - 24 months

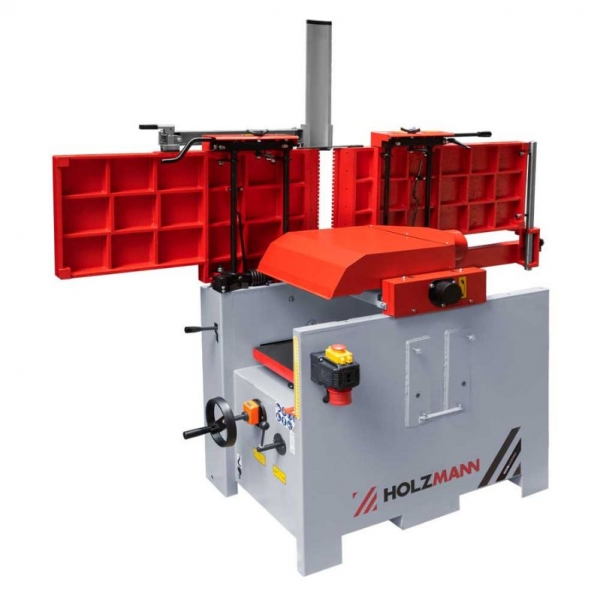

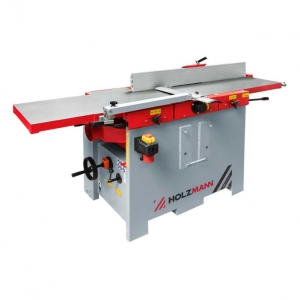

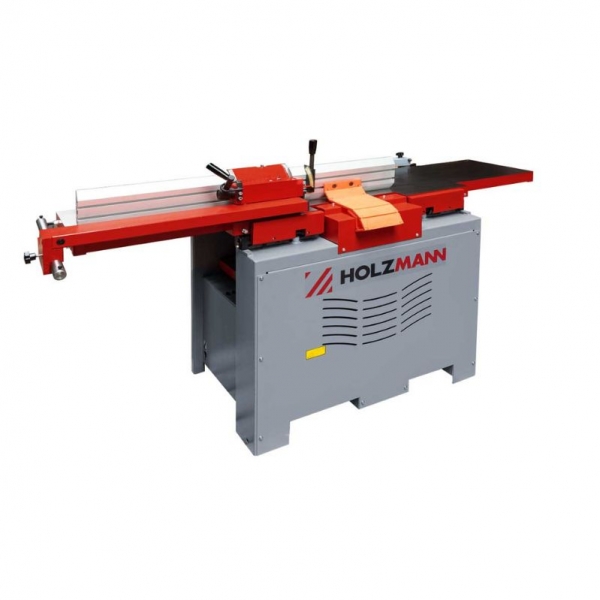

The Holzmann HOB410PROSMW4 planer-thicknesser is high-quality industrial equipment designed for professional woodworking. The machine is equipped with a spiral cutter block featuring 68 inserts, two adjustable feed rollers, and a tiltable heavy-duty fence. The cast iron tables with ground surfaces ensure durability and precision, while the powerful motor allows efficient processing of even thick workpieces.

Functions:

• High-quality industrial-grade equipment
• Tables tilt backwards – do not obstruct in thicknessing mode
• Cast iron tables with ground surface
• Heavy-duty professional fence – tiltable from 90° to 45°
• Two adjustable feed rollers for thicknessing
• Spiral-toothed infeed roller facilitates easy feeding of the workpiece

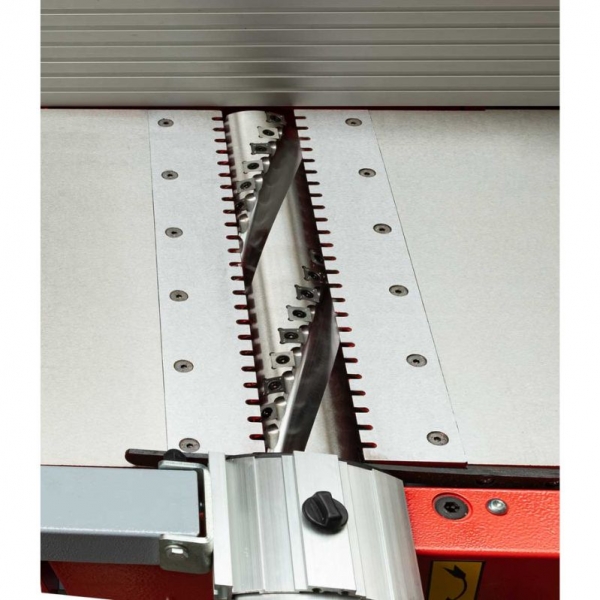

• Precisely mounted spiral cutter block with 68 inserts (4 grooves, 17 inserts each)

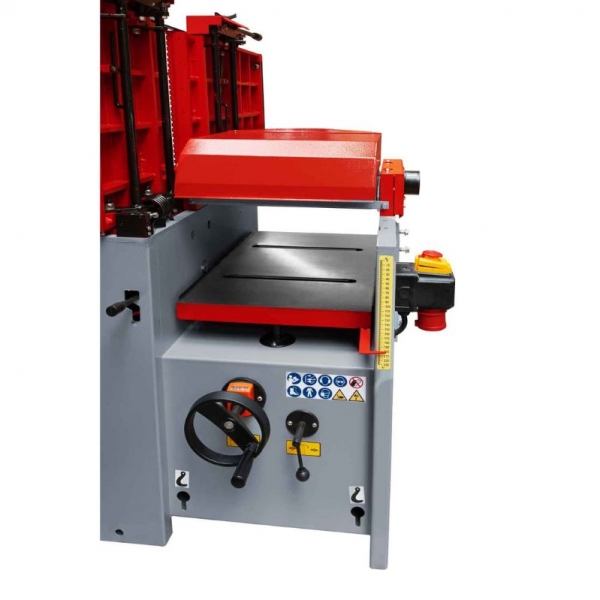

• Thicknessing table with additional lateral support
• Stable side-mounted fence with guide
• Included: pre-installed cutter inserts (15 x 15 x 2.5 mm, 30°), professional fence, counter block

Technical specifications:

• Planing table dimensions: 1800 x 410 mm
• Thicknessing table dimensions: 700 x 410 mm
• Thicknessing table height: 870 mm
• Maximum thicknessing cutting depth: 5 mm
• Maximum planing cutting depth: 4 mm
• Maximum workpiece height: 230 mm
• Planing fence dimensions: 1100 x 155 mm
• Fence tilt: 90°–45°
• Cutter block diameter: 98 mm
• Cutter block speed: 4700 rpm
• Feed speed: 7 m/min
• Motor power (S6): 5500 W
• Voltage: 400 V / 50 Hz
• Dust extraction port diameter: Ø120 mm
• Overall dimensions: 1800 x 470 x 1000 mm
• Sound power level: 108 dB(A)
• Sound pressure level: 79 dB(A)
• Net weight: 420 kg
• Gross weight: 495 kg
• Packaging dimensions: 2000 x 845 x 1100 mm (L x W x H)
