Plasma cutting machine 70A

Plasma cutting machine 70A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

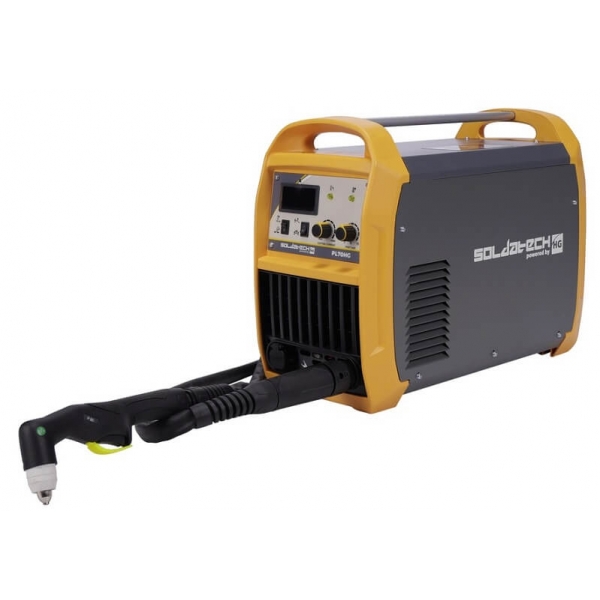

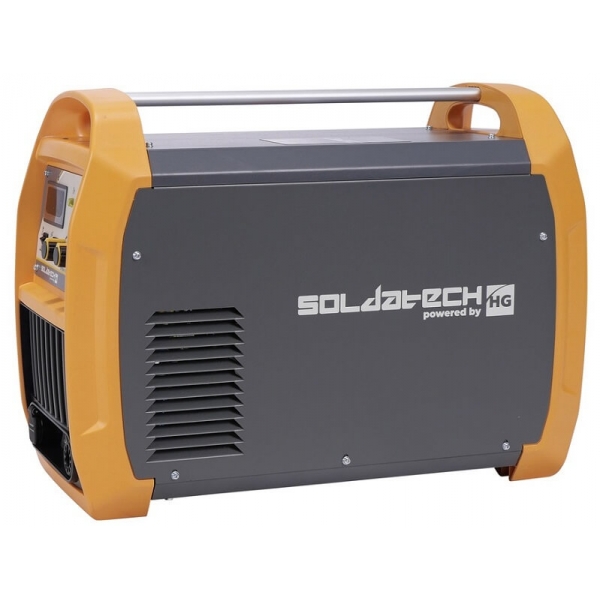

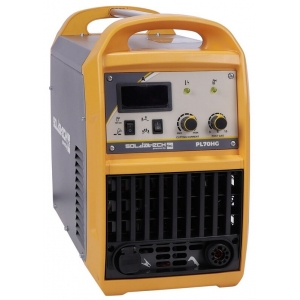

The PL70HG is a compact, powerful and easy-to-use plasma cutter with Pilot ARC ignition. As a result, combined with HF ignition, this cutter ignites very easily and can smoothly cut rusted, coated or textured material up to 25mm.The PL70HG has a convenient control panel and can even be adjusted during cutting to achieve the best cutting result. The advanced IGBT inverter technology not only ensures that the PL70HG works for a long time with higher power, but it is also lightweight and portable. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time. Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Standard equipment:

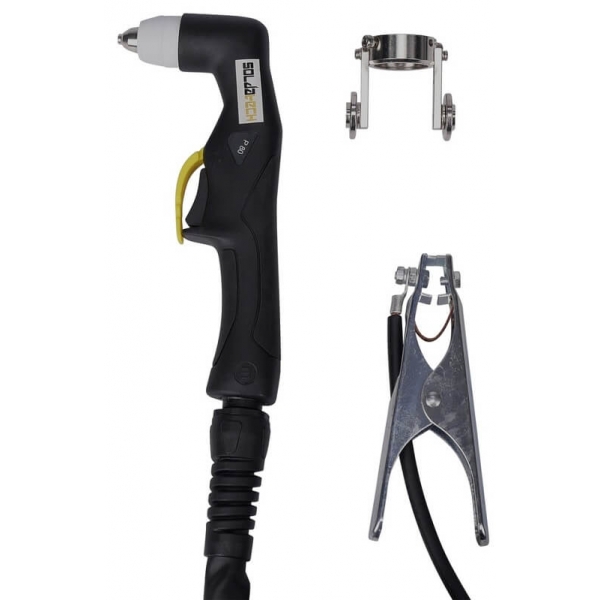

• Soldatech PL80M5 plasma torch with 5m cable
• working terminal with 2m 16mm² cable
• 4m gas pipeline with hose clamps
• 5-pin 32A plug with 2.5 m 4x2.5 mm² cable
• Standard 9mm Dinse cable connectors

Technical specifications:

• Voltage = 400V – 3 phases
• Frequency = 50/60 Hz
• Fuse protection = 20A B-char
• Input power = 9.4 kVA
• Duty cycle (at 20°C ambient temperature) = 100% - 70 A
• Duty cycle (at 40°C ambient temperature) = 60% - 70 A
• Welding current range = 25 - 70 A
• Max. no-load voltage = 330 V
• Recommended cutting thickness = 17 mm
• Max. cutting thickness = 25 mm
• Average air/gas consumption = 220 L/min
• Protection class = IP21S
• Dimensions = 550 x 245 x 405 mm
• Weight = 23.5 kg
