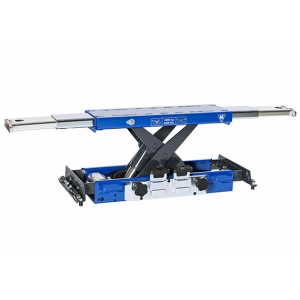

Pneumatic-hydraulic axle lift SD20PHL

AC-Hydraulic, Denmark; warranty 3 years for hydraulics and 10 years for frame parts

Pneumatic-hydraulic axle jack designed for passenger cars and vans Convenient for use with low-clearance vehicles ensuring fast and efficient operation

Features

• Fast and efficient lifting with a silent pump
• Low 180 mm minimum height suitable for low-clearance vehicles
• Flexible support beam extendable up to 1610 mm
• Height-adjustable support arm system suitable for lifts and pits
• Two-hand lowering operation with emergency release automatic safety locking device and overload valve
• Supplied with 3 extension sets (10/40/85 mm) and a rubber pad for vehicle body protection

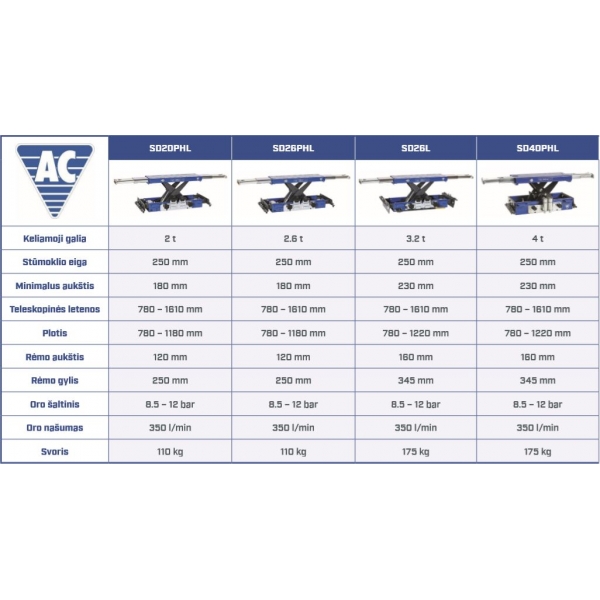

Specifications

• Lifting capacity 2 tons
• Lifting stroke 250 mm
• Minimum height 180 mm
• Support beam length 780 - 1610 mm
• Jack width 780 - 1180 mm
• Structure height 120 mm
• Structure depth 250 mm
• Required compressed air pressure 8.5 - 12 bar
• Required compressed air flow 350 L/min
• Weight 110 kg

Additional equipment

• HSD Pneumatic connection kit
• FSD1 Extensions for height increase 130 mm (2 units required)
• FSD2 Rubber support 40 mm (2 units required)
• FSD3 Rubber support 80 mm (2 units required)
• FSD5 Saddle with thread (106 - 240 mm) (2 units required)
• FSD6 Adjustable saddle for height increase (32 - 92 mm) (2 units required)
• FSD7 Extension for height increase 60 mm (2 units required)
• GS1 Rubber pad for FSD6 (2 units required)
• GS2 Rubber pad for 10 mm height increase (2 units required)
