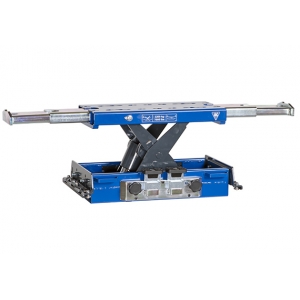

Pneumatic-hydraulic axle lift SD32PHL

AC-Hydraulic, Denmark; warranty 3 years for hydraulics and 10 years for frame parts

Pneumatic-hydraulic axle jack designed for passenger cars and vans Ideal for use with 5–6 ton capacity lifts

Features

• 3.2-ton lifting capacity ensures optimal usage
• Low minimum height of 230 mm
• Flexible support beam extendable up to 1610 mm
• Height-adjustable support arm system compatible with modern lifts and pits
• Two-hand lowering operation with emergency release automatic safety locking system and overload protection valve
• Supplied with 3 extension sets (10/40/85 mm) and a rubber pad for vehicle body protection

Specifications

• Lifting capacity 3.2 tons
• Lifting stroke 250 mm
• Minimum height 230 mm
• Support beam length 780 - 1610 mm
• Jack width 780 - 1220 mm
• Structure height 160 mm
• Structure depth 345 mm
• Required compressed air pressure 8.5 - 12 bar
• Required compressed air flow 350 L/min
• Weight 175 kg

Additional equipment

• HSD Pneumatic connection kit
• FSD1 Extensions for height increase 130 mm (2 units required)
• FSD2 Rubber support 40 mm (2 units required)
• FSD3 Rubber support 80 mm (2 units required)
• FSD6 Adjustable saddle for height increase (32 - 92 mm) (2 units required)
• FSD7 Height extension 60 mm (2 units required)
• GS1 Rubber pad for FSD6 (2 units required)
• GS2 Rubber pad for 10 mm height increase (2 units required)
