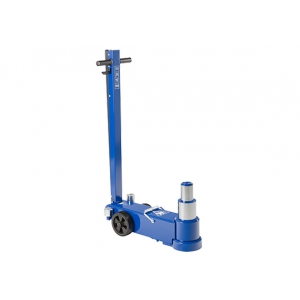

Pneumatic-hydraulic jack AC Hydraulic 50-2

Pneumatic-hydraulic jack AC Hydraulic 50-2

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Two-step pneumatic-hydraulic jack for heavy buses and trucks

Description:

• Minimum height of 220 mm
• Designed for heavy, heavy commercial use
• Solid chrome plated cylinder for durability
• Integrated safety relief valve
• Manual emergency control for optimum safety during lifting and lowering
• Supplied with two extensions (50/100 mm)
• Manufacturer: Denmark
• Warranty: 3 years

Technical parameters:

• Lifting capacity: 50/25 tonnes
• Minimum height: 220 mm
• Maximum height: 340/450 mm
• Body length: 810 mm
• Handle length: 1160 mm
• Width: 200 mm
• Width (with wheels): 315 mm
• Required compressed air pressure: 9 - 12 bar
• Required compressed air flow: 350 L / min
• Weight: 80 kg

Additional equipment:

• F250: extension, 250 mm
• FW: nozzle for bolting and so on.
• FW1: nozzle for lifting under various axles
