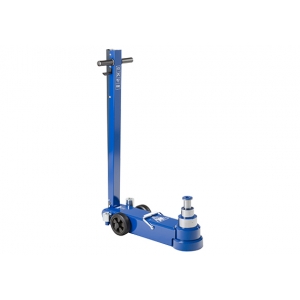

Pneumatic-hydraulic jack AC Hydraulic 50-3

Pneumatic-hydraulic jack AC Hydraulic 50-3

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Three-step pneumatic-hydraulic jack for low buses and other low-floor vehicles

Description:

• Minimum height of 150 mm combined with high carrying capacity
• Telescopic cylinders provide excellent maximum lift height along with low minimum height
• Designed for heavy, heavy commercial use
• Integrated safety relief valve
• Manual emergency control for optimum safety during lifting and lowering
• Supplied with two extensions (50/100 mm)
• Manufacturer: Denmark
• Warranty: 3 years

Technical parameters:

• Lifting capacity: 50/25/10 tonnes
• Minimum height: 150 mm
• Maximum height: 210/265/335 mm
• Body length: 810 mm
• Handle length: 1160 mm
• Width: 200 mm
• Width (with wheels): 310 mm
• Required compressed air pressure: 9 - 12 bar
• Required compressed air flow: 350 L / min
• Weight: 67 kg

Additional equipment:

• F250: extension, 250 mm
• FW: nozzle for bolting and so on.
• FW1: nozzle for lifting under various axles
