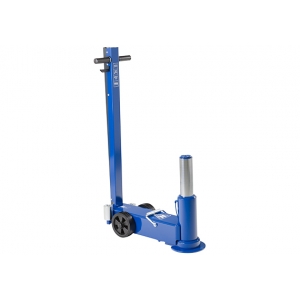

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 25-1H

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 25-1H

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

One-step, high lift pneumatic-hydraulic jack for agricultural, construction equipment, truck trailers and other high-foundation machines

Description:

• Minimum height of 360 mm
• Maximum height of 610 mm
• Solid chrome plated cylinder for durability
• Integrated safety relief valve
• Manual emergency control for optimum safety during lifting and lowering
• Supplied with two extensions (50/100 mm)
• Ergonomic handle with control buttons
• Warranty: 3 years

Technical parameters:

• Lifting capacity: 25 tonnes
• Minimum height: 360 mm
• Maximum height: 610 mm
• Body length: 820 mm
• Handle length: 1160 mm
• Width: 230 mm
• Width (with wheels): 310 mm
• Required compressed air pressure: 9 - 12 bar
• Required compressed air flow: 350 L / min
• Weight: 71 kg

Additional equipment:

• F250: extension, 250 mm
• FW: nozzle for bolting and so on.
• FW1: nozzle for lifting under various axles
