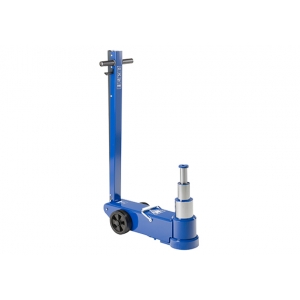

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 50-3H

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 50-3H

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Three-step pneumatic-hydraulic jack for high ground vehicles

Description:

• Minimum height 220 mm, maximum height 560 mm
• Designed for heavy, heavy commercial use
• Integrated safety relief valve
• Manual emergency control for optimum safety during lifting and lowering
• Manufacturer: Denmark
• Warranty: 3 years

Technical parameters:

• Lifting capacity: 50/25/10 tonnes
• Minimum height: 220 mm
• Max height: 340/450/560 mm
• Body length: 810 mm
• Handle length: 1355 mm
• Width: 200 mm
• Width (with wheels): 310 mm
• Required compressed air pressure: 9 - 12 bar
• Required compressed air flow: 350 L / min
• Weight: 73 kg

Additional equipment:

• F250: extension, 250 mm
• FW: nozzle for bolting and so on.
• FW1: nozzle for lifting under various axles
