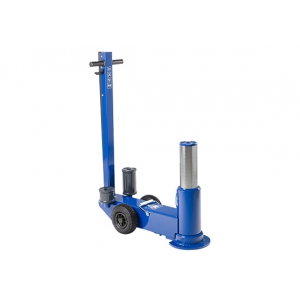

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 65-1H

Pneumatic-hydraulic jack for high-base machines AC Hydraulic 65-1H

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Pneumatic-hydraulic jack for heavy construction equipment with a high base

Description:

• Minimum height 425 mm
• Maximum height 725 mm with extensions up to 1025 mm
• Designed for heavy, heavy commercial use
• Solid chrome plated cylinder for durability
• Integrated safety relief valve
• Manual emergency control for optimum safety during lifting and lowering
• Supplied with 2 extensions (100/200 mm)
• Manufacturer: Denmark
• Warranty: 3 years

Technical parameters:

• Lifting capacity: 65 tonnes
• Minimum height: 425 mm
• Maximum height: 725 mm
• Body length: 980 mm
• Handle length: 1160 mm
• Width: 300 mm
• Width (with wheels): 390 mm
• Required compressed air pressure: 9 - 12 bar
• Required compressed air flow: 350 L / min
• Weight: 138 kg

Additional equipment:

• F250: extension, 250 mm
• FW: nozzle for bolting and so on.
• FW1: nozzle for lifting under various axles
