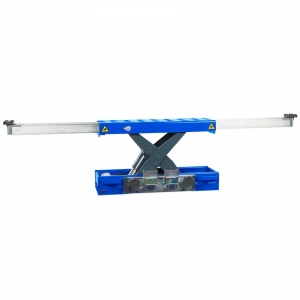

Pneumo-hydraulic axle lifter AC Hydraulic SD20PHL-W 2.0t

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Features:

• The support beam can be extended up to 1865 mm
• Only 190 mm minimum height, optimal for vehicles with low ground clearance
• Fast and reliable lifting thanks to a faster and more efficient pump
• Unique adjustable height mounting bracket system to fit any lift
• Two-handed lowering operation with quick release
• Complete with 3 extension kits (10/40/85mm) and a rubber pad to protect the car body
• New Pump - The new axle lifter has an improved pump that provides even greater reliability as well as over 50% faster lifting and lowering.
• A unique height-adjustable mounting bracket system that ensures a perfect connection to any lift - regardless of manufacturer
• Ensures that electric vehicles can be lifted without damaging the battery

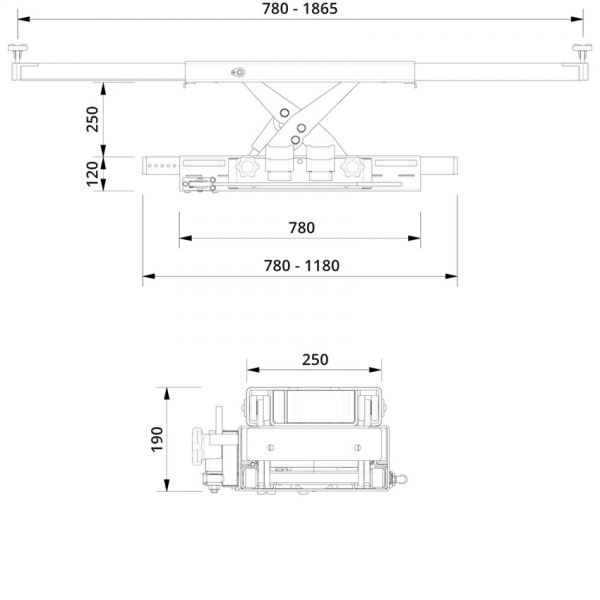

Technical data:

• Lifting capacity: 2.0 t
• Lifting stroke: 250 mm
• Minimum height: 190 mm
• Length of supports: 780 - 1865 mm
• Lift width: 780 - 1180 mm
• Construction height: 120 mm
• Construction depth: 250 mm
• Required compressed air pressure: 8-10 bar
• Required compressed air flow: 400 - 700 l/min
• Weight: 120 kg
