Professional diagnostic equipment Autel MaxiSYS MS909 S2

Professional diagnostic tool AUTEL MaxiSYS MS909 S2

Manufacturer: AUTEL. Warranty period – 24 months.

Advanced wireless automotive diagnostic system for professional use in automotive workshops.

AUTEL MaxiSYS MS909 S2 is a new-generation professional diagnostic tool designed for automotive workshops and diagnostic technicians working with modern US, Asian and European vehicles from 1996 onwards. It is built for complex electronics, diagnostics, programming and service tasks that require high speed, accuracy and near-manufacturer-level functionality. Powerful hardware, the Android 13 platform and advanced diagnostic technologies ensure efficient operation both in everyday service work and complex electronic troubleshooting.

Why choose AUTEL MaxiSYS MS909 S2?

• Near-manufacturer-level OE diagnostics.
• Reading, testing, coding and adapting all systems for professional service work.
• Topology 3.0 network map.
• Clear display of control unit connections and fast fault detection across multiple vehicle networks.
• Ultra-high performance.
• 2.7 GHz octa-core processor ensures fast and stable operation, even during complex diagnostic tasks.
• Advanced live data analysis.
• Live Data Fusion, PID grouping and graphs for more complex fault analysis.
• Fully wireless operation.
• Convenient movement around the service area without cable restrictions.
• Future-ready service capability.
• ECU programming, coding, ADAS capability, remote expert assistance and expansion options in one device.

Features:

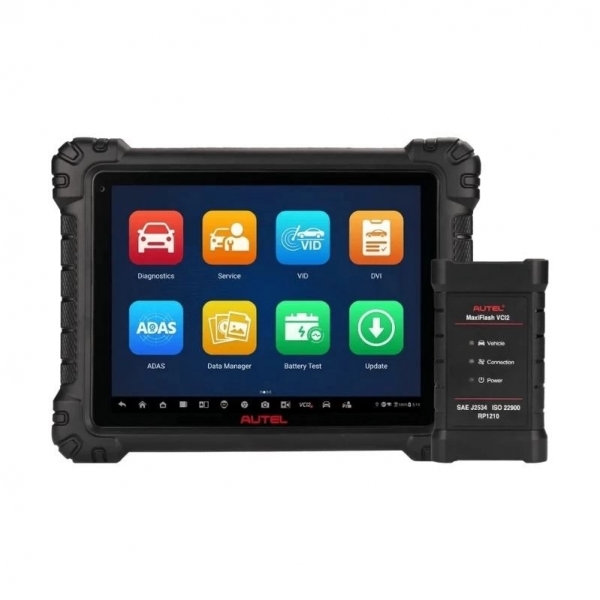

• 11-inch next-generation professional diagnostic tablet with Android operating system, advanced wireless MaxiFlash VCI2 and J2534 pass-thru programming support.
• Wide US, Asian and European vehicle support, all-system diagnostics, pre- and post-repair reports, bi-directional testing, hidden and special functions, coding and adaptations.
• Topology 3.0 dynamic network analysis with the ability to test and monitor individual control unit connections across multiple networks, as well as advanced live data analysis.
• Integrated multi-point digital vehicle inspection, MAX voice-controlled virtual assistant and one year of free MOTOR TruSpeed repair information.
• One-click access to more than 45 maintenance and reset functions.
• Industry-leading Security Gateway access, including Mercedes-Benz, Nissan, VW/Audi and Stellantis. AutoAuth account required; VW/Audi functions may require an additional subscription key.
• 2.7 GHz 8-core processor, Android 13 operating system, 256 GB internal storage, Wi-Fi 6.0, advanced MaxiFlash VCI2 with multi-protocol support and J2534 pass-thru capability.
• Advanced PID analysis with Live Data Fusion, benchmark sampling and real-time parameter graph display.
• Accessory expansion options: ADAS calibration with software update and targets, MV108S / MV105S video endoscope, BT506 battery tester.

Technical specifications:

• Operating system: Android 13.0;
• Processor: octa-core;
• Memory: 12 GB RAM and 256 GB internal storage;

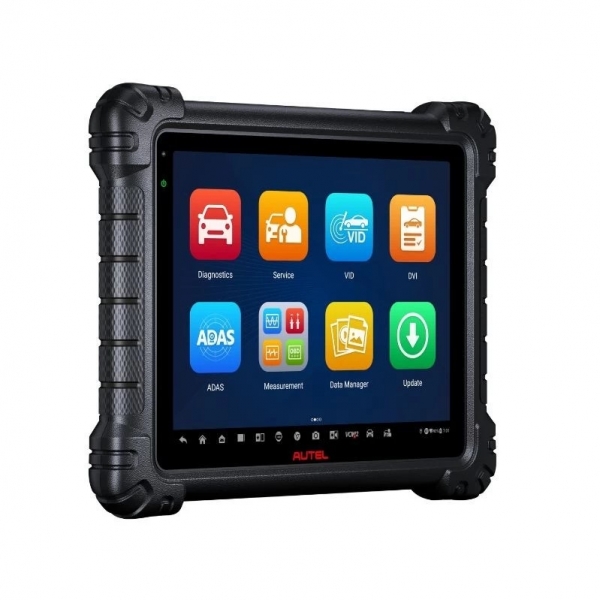

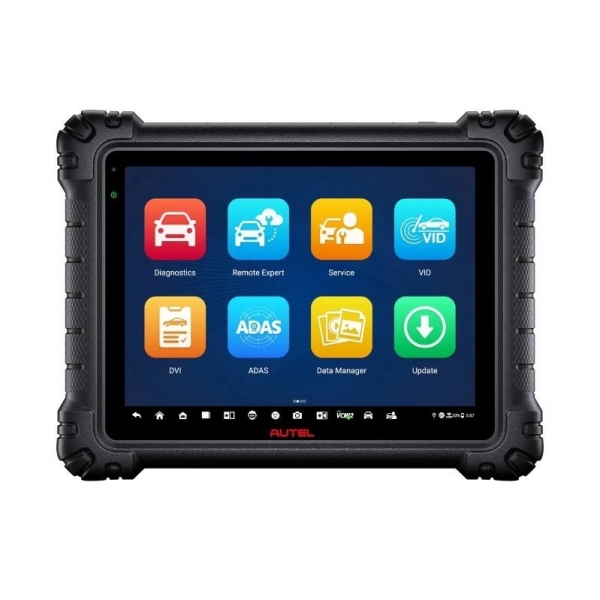

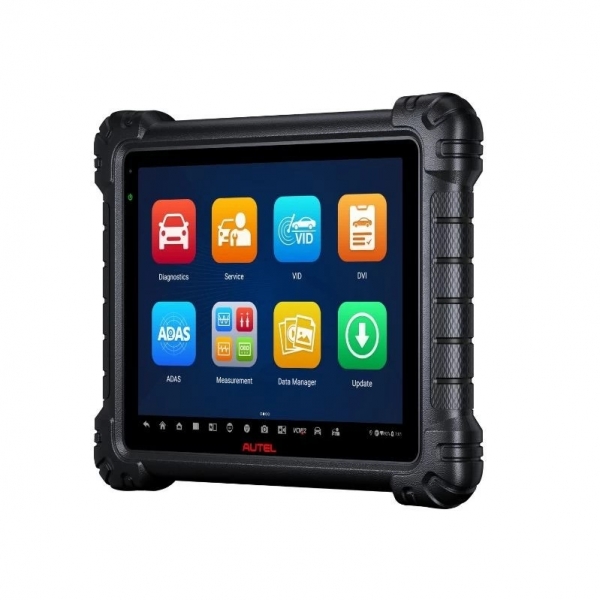

• Display: 11-inch anti-glare screen with 2176 × 1600 resolution;
• Wi-Fi: 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO;
• Bluetooth: 5.2 + EDR;
• GPS: built-in;
• USB 2.0: 2 × USB Type-A ports;
• USB Type-C: for tablet charging or data transfer to a computer;
• HDMI: HDMI 2.0;
• SD card: support up to 256 GB;
• Rear camera: 16 MP with autofocus and flash;
• Front camera: 16 MP;
• Sensors: gravity accelerometer and ambient light sensor;
• Audio input/output: microphone, two speakers, 3.5 mm headphone jack;
• Charging: with 12 V / 6 A DC adapter;
• USB Type-C fast charging: 45 W, 15 V / 3 A PD, requires a PD-enabled adapter;
• Battery: 15,000 mAh, 3.85 V lithium-polymer battery;
• DC input: 12 V / 6 A;
• USB-C input: up to 15 V / 3 A, also supports 9 V / 3 A and 5 V / 3 A;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -10 °C to +60 °C;
• Dimensions: 315.4 × 240.3 × 39.0 mm;
• Weight: 1.67 kg.

Supported protocols:

• PLC J2497;
• ISO-15765;
• SAE-J1939;
• ISO-14229 UDS;
• SAE-J2411 Single Wire CAN / GMLAN;
• ISO-11898-2;
• ISO-11898-3;
• SAE-J2819 TP20;
• TP16;
• ISO-9141;
• ISO-14230;
• SAE-J2610 Chrysler SCI;
• UART Echo Byte;
• SAE-J2809 Honda Diag-H;
• SAE-J2740 GM ALDL;
• SAE-J1567 CCD bus;
• Ford UBP;
• Nissan DDL UART with clock signal;
• BMW DS2;
• BMW DS1;
• SAE J2819 VAG KW81;
• KW82;
• SAE J1708;
• SAE-J1850 PWM / Ford SCP;
• SAE-J1850 VPW / GM Class 2;
• ISO 13400;
• CAN FD.

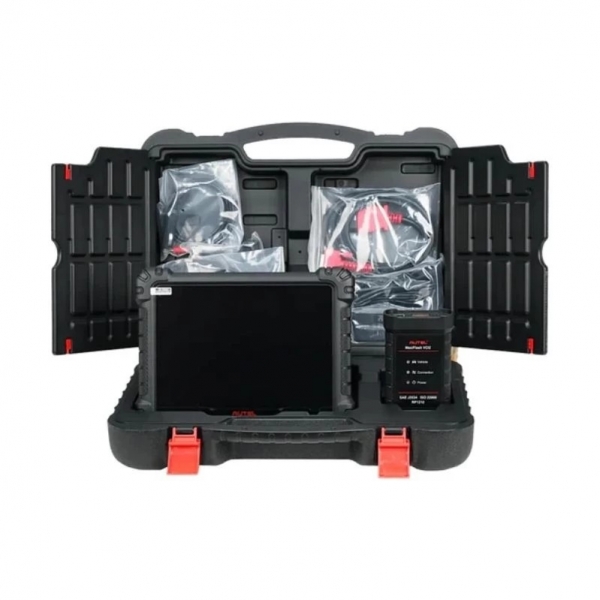

What is included:

• Main diagnostic unit / tablet – 1 pc.;

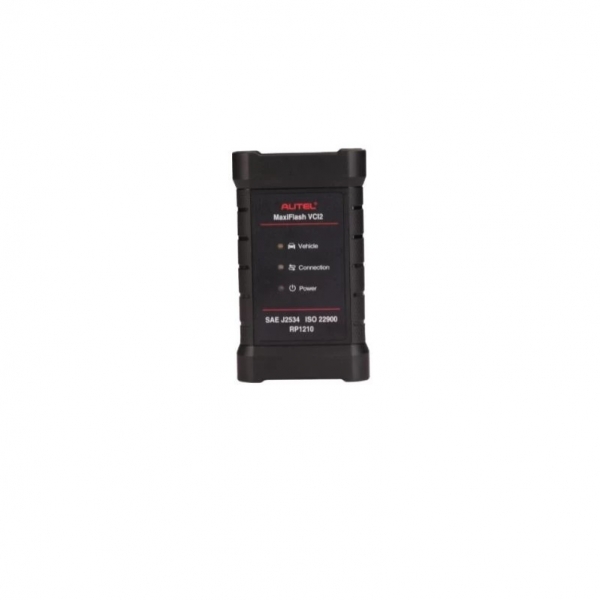

• MaxiFlash VCI2 diagnostic module – 1 pc.;
• 12 V AC/DC adapter – 1 pc.;
• Main OBD connection cable V2.0 – 1 pc.;
• USB 2.0 cable V2 – 1 pc.;
• 6 × 30 mm fuse – 2 pcs.;
• Clipper cable – 1 pc.;
• Vehicle charger for cigarette lighter socket – 1 pc.;
• Quick start guide – 1 pc.;
• Packing list – 1 pc.;
• Soft cleaning cloth – 1 pc.;
• Transport case 504 × 133 × 360 mm – 1 pc.

Who is this device for?

• AUTEL MaxiSYS MS909 S2 is designed for professional automotive workshops, independent diagnostic specialists, service centres and technicians working with multiple vehicle brands who are looking for one versatile and reliable solution for complex diagnostics, programming and service work.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Take your service to the next level!

• AUTEL MaxiSYS MS909 S2 is an investment in faster diagnostics, greater accuracy and a higher level of service. Contact us – we will help you choose the most suitable solution for your service needs.
