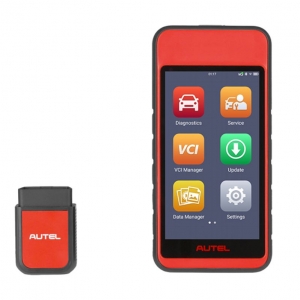

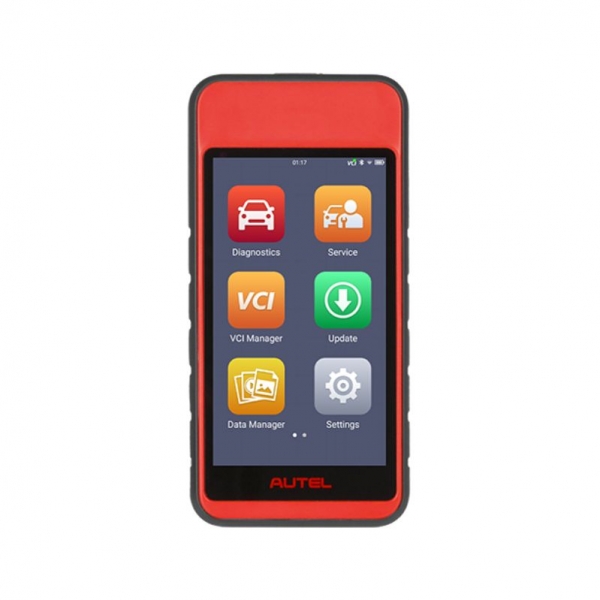

Professional diagnostic tool Autel MaxiDiag MD909 Pro

Professional diagnostic tool AUTEL MaxiDiag MD909 Pro

A universal solution for car workshops and independent diagnostic specialists.

Manufacturer: AUTEL. Warranty period – 24 months.

The MaxiDiag MD909 Pro is a professional handheld diagnostic tool designed for advanced and fast full-system vehicle diagnostics. The device is equipped with the latest technology, allowing access to all control modules and performing essential maintenance functions, including oil reset, brake bleeding, battery management system functions and DPF system service. It features an intuitive user interface, wide vehicle coverage and updatable software.

Why choose the MaxiDiag MD909 Pro?

• Full-system diagnostics – detects faults in all modules, reads and clears trouble codes and displays live data.
• 11 professional service functions – from oil reset to brake bleeding or DPF regeneration.
• Bluetooth VCI connectivity – enables convenient handheld operation without cable restrictions.
• CAN FD protocol support – compatible with the latest-generation vehicles.
• Access to manufacturers’ security gateways – work with FCA, SFD and other secure vehicle systems.
• Powerful battery and Android platform – smooth performance, long runtime and familiar interface.
• Lifetime OTA updates – free software updates for the entire device usage period.

Functions:

• Extensive vehicle coverage for current-year vehicles from U.S., Asian and European manufacturers, with access to all modules in all systems.
• Enhanced Mode 6 diagnostics, full-system AutoScan DTC detection, code reading and clearing, live data and freeze frame data viewing for all systems.
• 11 service functions: oil reset (OIL RESET), brake bleeding (BRAKE BLEEDING), injector programming (INJECTOR), steering angle sensor calibration (SAS), throttle adaptation (THROTTLE), electronic parking brake (EPB), battery management system (BMS), tire pressure monitoring system (TPMS), diesel particulate filter (DPF), AFS headlamp, air/fuel ratio adaptation (A/F).
• Supports all OBD II protocols and 10 OBD II test modes, I/M readiness and emissions test function.
• 5.5-inch screen, 64 GB memory, Android system and user-friendly interface.
• 5000 mAh battery – long operating time.
• Bluetooth VCI connection – more convenient handheld use.
• CAN FD protocol support – compatibility with advanced vehicle systems.
• Security gateway access – FCA, SFD, etc.
• Expandable battery testing function using the BT506 device.
• Free lifetime OTA software updates.

*For more details on gateway availability, please contact your local distributor.

Technical specifications:

• VCI: V150 Lite;
• Operating system: Android 9;
• Battery: 5000 mAh;
• Memory: 64 GB;
• Screen: 5.5-inch;
• Vehicle coverage: latest-year vehicles from Asia, Europe, America and China;
• System coverage: all systems;
• Code reading and clearing: supported;
• Live data viewing and recorded data analysis: supported;
• Security gateways: FCA, SFD, etc.;
• Service functions:
• Oil reset (OIL RESET);
• Brake bleeding (BRAKE BLEEDING);
• Injector programming (INJECTOR);
• Steering angle sensor calibration (SAS);
• Throttle adaptation (THROTTLE);
• Electronic parking brake control (EPB);
• Battery management system reset (BMS);
• Tire pressure monitoring system (TPMS);
• Diesel particulate filter regeneration (DPF);
• Adaptive front-light system configuration (AFS Headlamp);
• Air-fuel ratio adaptation (A/F);
• Extension: battery test, BT506 device required;
• Communication protocol: CAN FD;
• Software: free updates for the lifetime of the device.

Who is this tool for?

• The MaxiDiag MD909 Pro is perfect for automotive service shops, independent diagnostic technicians and maintenance professionals who need a mobile, intelligent and powerful full-system diagnostic solution. It is a cost-effective tool for both daily tasks and advanced operations.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• Original AUTEL devices purchased from an official representative provide full warranty, support and professional service.
• Original AUTEL diagnostic devices purchased from us are adapted for the European region and professional workshop use.
• Our clients receive warranty and aftersales support.
• In the event of device failure, we provide replacement devices if repair takes longer.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Do not be misled by unknown-origin clones – their functionality may be limited and the devices may become blocked.

Choose reliable equipment – save time and money!

• Order the MaxiDiag MD909 Pro today or contact us to try the device in real-world conditions!
