Professional EV diagnostic tool Autel MaxiSys MS909EV

Professional EV diagnostic tool AUTEL MaxiSYS MS909EV

All-in-one diagnostic solution with high-voltage EV battery analysis.

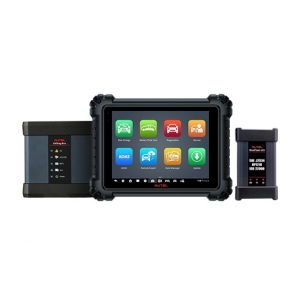

AUTEL MaxiSYS MS909EV is a next-generation diagnostic device designed for modern vehicles, including electric, hybrid, gasoline and diesel models. This advanced tablet combines the functionality of AUTEL MS909 with additional capabilities for evaluating, diagnosing and analyzing high-voltage EV battery systems in real time. It is a solution for automotive workshops that want to be ready for all vehicle types without limitations.

Why choose AUTEL MaxiSYS MS909EV?

• Diagnostics for all vehicle types.
• One device for electric, hybrid, gasoline and diesel vehicles from 1996 onwards.
• High-voltage EV battery analysis.
• Ability to check battery charge, voltage, health and module performance via OBD or direct connection with special cables.
• Clear on-screen data display.
• Detailed graphs, instructions and safe testing guidance help work efficiently even with complex systems.
• OE-level diagnostics and programming.
• ECU coding, active tests, system calibration, real-time updates and other professional functions in one platform.
• Cloud solutions and remote support.
• Customer, vehicle and technician records are stored in the cloud, while AUTEL experts can provide remote support.
• Complete service workflow management in one tablet.
• A unified workspace for managing customers, reports, services and tasks without additional software.

Features:

• Fast high-voltage EV battery system analysis with fault code reading and clearing, as well as live data viewing.
• Battery charge and health analysis to determine the actual technical condition of the battery.
• Battery analysis can be performed via OBD or through direct connection using the included special cables and adapters.
• Detailed graphs and step-by-step instructions are displayed on screen for safe testing.
• Automatic system and software updates with instant notifications.
• Interactive data logging sessions allow communication with AUTEL consultants.
• Multifunctional workspace for file, customer information and vehicle record management.
• Cloud-based data management with full history by VIN code.
• ADAS calibration software available on request.

Technical specifications:

• Operating system: Android 10.0;
• Processor: Qualcomm 660 octa-core processor, 2.2 GHz × 4 A73 + 1.8 GHz × 4 A53;
• Memory: 4 GB RAM and 128 GB internal storage;
• Display: 9.7" TFT-LCD touchscreen with 1536 × 2048 resolution;
• Connectivity: Wi-Fi, Bluetooth, GPS, USB 2.0, HDMI 2.0, SD card with support up to 256 GB;
• Cameras: 16 MP front camera and 16 MP rear camera with LED flash;
• Sensors: gravity accelerometer, ambient light sensor;
• Audio: microphone and dual speakers;
• Battery: 15,000 mAh, 3.8 V lithium-polymer battery;
• Input voltage: 12 V / 1.3 A;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -20 °C to +60 °C;
• Dimensions / weight: 304.4 × 227.8 × 42.5 mm / 1.66 kg;
• Supported protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS and more.

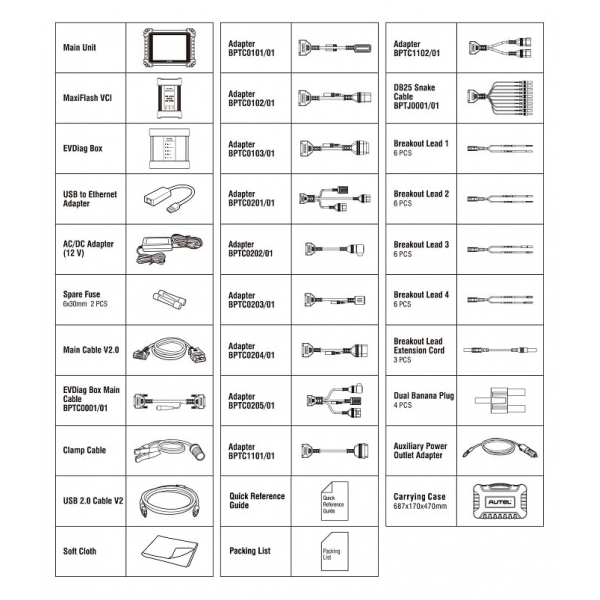

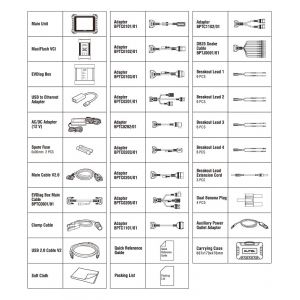

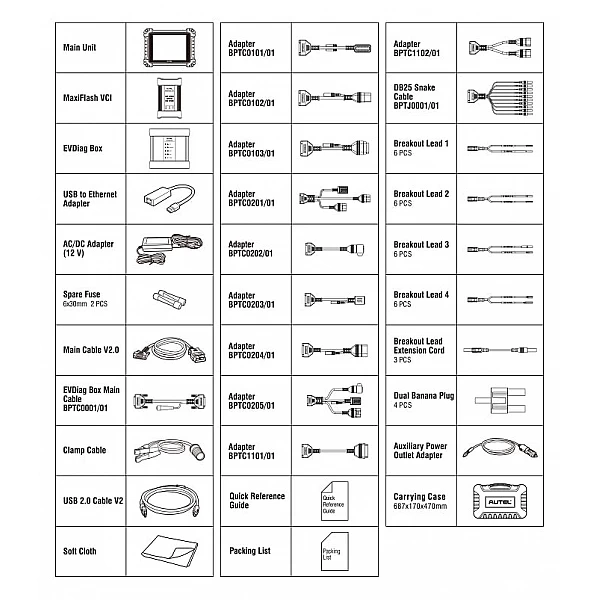

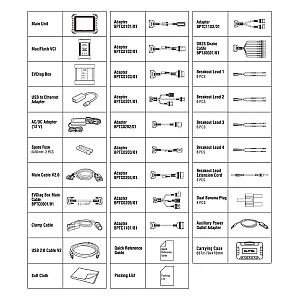

What is included:

• AUTEL MaxiSYS MS909EV diagnostic tool;
• MaxiFlash VCI;
• EVDiag Box;
• USB adapter;
• AC/DC 12 V adapter;
• 2 spare fuses;
• Main OBD cable;
• Main EVDiag Box cable;
• Battery clamp cables;
• USB 2.0 V2 cable;
• Screen cleaning cloth;
• Adapter BPTC0101/01;
• Adapter BPTC0102/01;
• Adapter BPTC0103/01;
• Adapter BPTC0201/01;
• Adapter BPTC0202/01;
• Adapter BPTC0203/01;
• Adapter BPTC0204/01;
• Adapter BPTC0205/01;
• Adapter BPTC1101/01;
• Adapter BPTC1102/01;
• DB25 BPTJ0001/01 cable;
• 6 pcs. Lead 1 connectors;
• 6 pcs. Lead 2 connectors;
• 6 pcs. Lead 3 connectors;
• 6 pcs. Lead 4 connectors;
• 4 pcs. double plugs;
• User manual;
• Packing list;
• Vehicle power adapter;

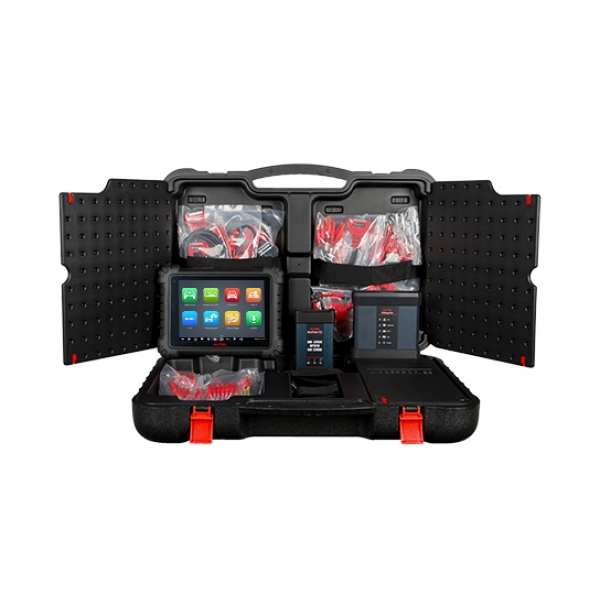

• Carrying case.

Who is this device for?

• AUTEL MaxiSYS MS909EV is designed for professional automotive workshops, independent technicians and diagnostic specialists servicing not only internal combustion engine vehicles, but also electric and hybrid vehicles. It is a solution that meets modern market needs and is especially important for services that want to be ready for future mobility.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Turn EV maintenance into your service advantage!

• Try AUTEL MaxiSYS MS909EV today — contact us to receive an offer tailored to your service needs.
