RAM-EXAM Hybrid™ 890000-RH Shape Measurement System

RAM-EXAM Hybrid™ 890000-RH Shape Measurement System

HERKULES RAM-EXAM™

• Measurement of all frame shape deviations
• Precise and easy to use
• Full laser control
• Computer program support

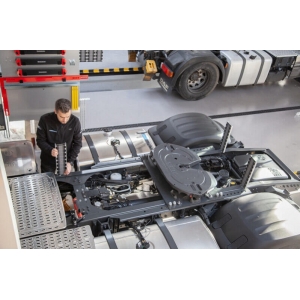

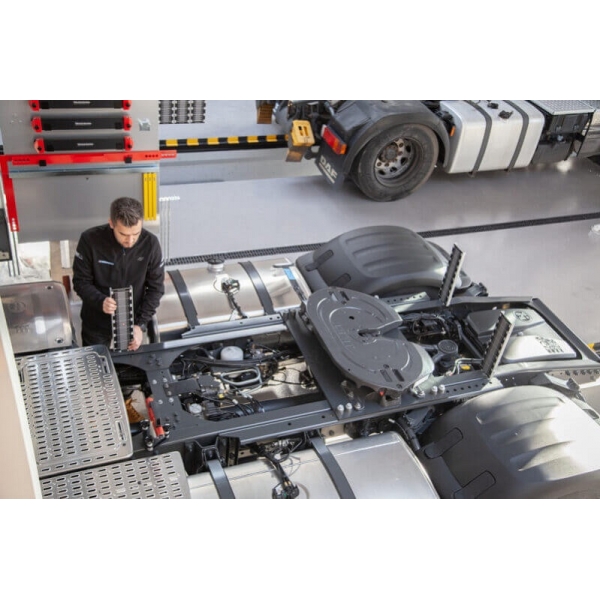

RAM-EXAM™ is a complete and ergonomic measurement system designed primarily for full shape inspection of commercial vehicle frames. Most of the components have a quick-mounting system based on magnetic mounts, which use modern and reliable neodymium magnets. The measurements are supported by specialized TRUCK-REPORT™ software.

RAM-EXAM™ is a laser-based device for measuring the shape geometry of commercial vehicle frames. It enables shape inspection and can be used both as a diagnostic device and as a system that allows continuous inspection while conducting vehicle repairs.

RAM-EXAM™ works with TRUCK REPORT software. Optionally, the results are plotted on the measurement protocol sheets by the measurement supervisor. The parameters that can be measured with the RAM-EXAM™ system are: BEAMS LINEARITY, AXIALITY, FLATNESS and ANGULARITY.

Technical data:

• Length: 1850 mm
• Height: 1000 mm
• Width: 800 mm
• Weight: 75 kg

Measuring system RAM-EXAM™

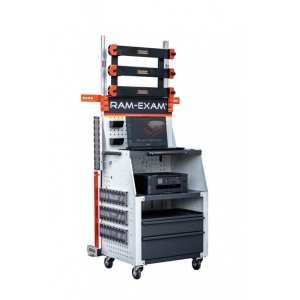

Equipment:

• Troley
• Measuring head
• Head magnetic holder
• Synchronous ruler
• Adjustable side screen
• Wheel head holder
• Try square
• Control ruler
• Control post, magnetic
• Magnetic Screen
• Synchronous ruler hanger “600”
• Adapter for aluminum rims
• Screen strip
• PC charger
• Screen
• Computer TRUCK-REPORT™
• Alu rim adapter
• Printer
• Magnetic holders “100”
• Magnetic holders “300”
• Ruler corner hanger
