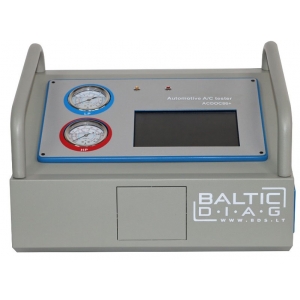

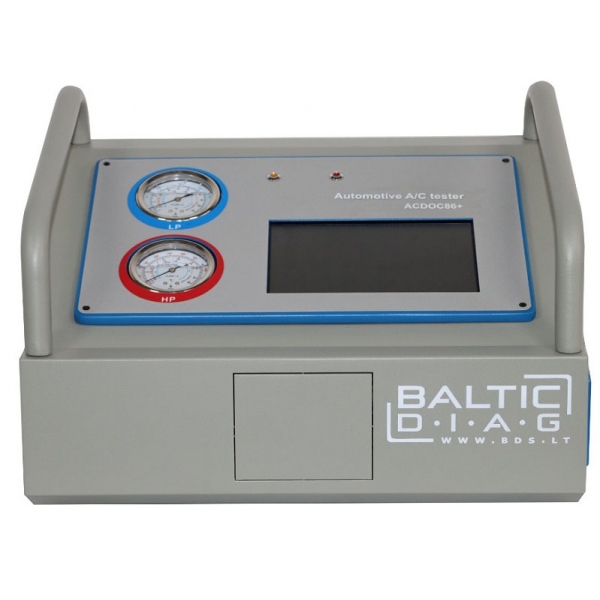

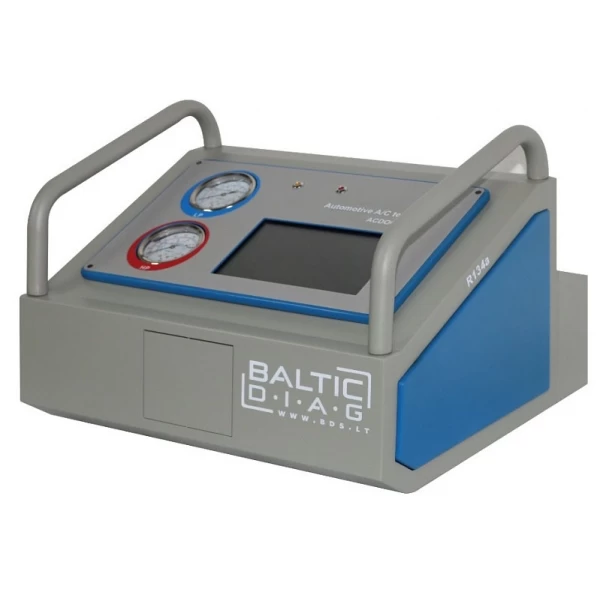

R134a refrigerant analyzer and A/C diagnostic unit BD86

R134a refrigerant analyzer and A/C diagnostic unit BD86

Country of origin: China, warranty period - 24 months

The BD86 is a modern and precise air conditioning system diagnostic device designed for vehicles using R-134a refrigerant. It combines refrigerant identification, pressure measurements, temperature and humidity sensors, and NDIR leak detection functionality. The device enables comprehensive A/C system diagnostics and generates a digital report, helping workshops professionally inform customers about the system’s condition. BD86 is ideal for modern service centers aiming for transparency and operational efficiency.

Features

• Refrigerant identification in vehicles or storage cylinders
• Outlet air temperature measurement using a wireless sensor (Wi-Fi, battery-powered)
• Comprehensive A/C system diagnostics with a digital report for the customer
• NDIR leak detection (accuracy up to 5 g/year, within 10–15 min)
• Ambient temperature and humidity analysis for optimal results
• Automatic pressure and temperature analysis

Technical specifications

• Power supply: 230 V / 50 Hz / 1 phase or 12 V DC
• Refrigerant identification accuracy: 0.1 %
• Identification time: 120 sec
• Optimal ambient temperature range: 20 – 50 °C
• Working pressure: from -1 to 30 bar
• Pressure measurement accuracy: ±0.1 bar
• Outlet air temperature range: 0 – 100 °C
• Outlet air temperature accuracy: ±0.1 °C
• Leak detection sensitivity: 5 g/year
• Total test duration: 6 min
• Estimated leak detection time per vehicle: 10 – 15 min
• Refrigerant type: R-134a
• Weight: 9.9 kg
• Dimensions: 410 × 383 × 280 mm
• Package dimensions: 475 × 440 × 345 mm
