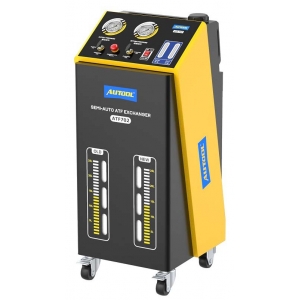

Semi automatic transmission fluid exchange station Autool ATF702

Semi-Automatic Transmission Fluid Exchange Station Autool ATF702

Country of origin: China, warranty period – 24 months

The Autool ATF702 is a reliable and efficient semi-automatic fluid exchange station designed for draining, refilling, and cleaning the fluid in automatic transmissions, torque converters, and other related components. This device enables quick (approximately 20 minutes) and nearly 100% fluid replacement without disassembling transmission parts. Thanks to its advanced oil circulation technology, the old fluid is extracted while fresh fluid is simultaneously filled, ensuring system cleanliness and fluid consistency. The unit comes with a wide range of compatible adapters and 360° swivel casters, making it highly mobile and easy to operate.

Features:

• Simultaneous extraction of old and filling of new transmission fluid
• Almost 100% fluid replacement – fast and efficient
• Cleans the system of metal shavings and contaminants without disassembly
• Adjustable fluid pressure and flow rate – adaptable to different vehicle models

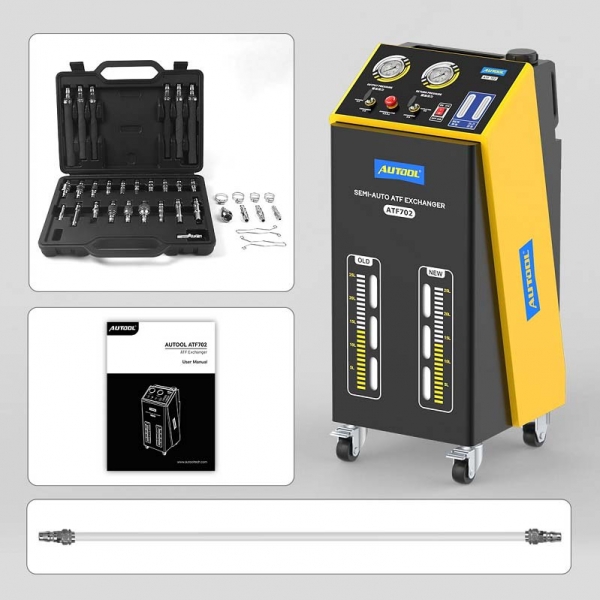

• Includes a variety of adapters – compatible with many car brands
• Quick-connect fittings – simple connection to the transmission oil cooler
• Ergonomic handles and four 360° swivel casters (2 with brakes) for easy mobility

Technical Specifications:

• Power supply: 12 V DC
• Maximum power: 150 W
• Pressure gauge: up to 10 kg/cm²
• Fluid extraction hose length: 2500 mm
• Fluid filling hose length: 2500 mm
• Oil tank capacity: 20 liters
• Operating temperature: from -10 to +40 °C
• Noise level: < 70 dB

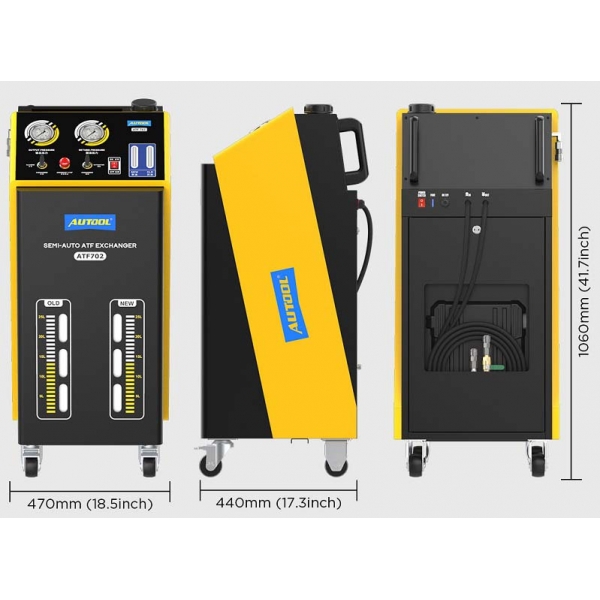

• Dimensions: 470 x 440 x 1060 mm
• Working humidity: < 85 %
