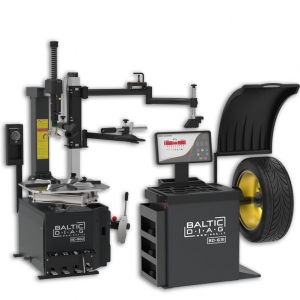

Tire changer BD-860 + BD-215 and automatic wheel balancer BD-631 set

Tire changer BD-860 + BD-215 and automatic wheel balancer BD-631 set

Country of origin: China, warranty period – 24 months

This set is designed for professional automotive workshops, ensuring fast and precise tire mounting and wheel balancing. The BD-860 + BD-215 tire mounting machine features a powerful pneumatic mechanism, a two-speed motor, and an auxiliary mounting arm, making it easier to handle complex tires. The BD-631 automatic wheel balancing machine is equipped with modern features such as LED lighting, a laser marker, and automatic wheel stopping, ensuring a precise balancing process.

Tire Mounting Machine BD-860 + BD-215

Features:

• Steel tire mounting head – ensures durability and includes replaceable plastic protectors to prevent rim scratches.
• Rim clamping jaws – self-centering rim clamps use two pneumatic cylinders to ensure secure and reliable rim fixation.
• Tire inflation system – an independent tire inflation system equipped with a pressure gauge, inflation hose, and inflation button.
• Pneumatically adjustable mounting head position – using a foot pedal, the mounting head can be tilted back or positioned as needed. Once the optimal position is found, it can be locked in place with a single button press.
• Filter and pressure regulator kit – high-quality pressure regulator with a water separator and lubrication system.
• Auxiliary tire mounting arm – an extremely durable auxiliary arm equipped with bead pressing rollers, a tire lifting disc, and a bead pressing head.

Technical Specifications:

• Clamping inner rim diameter: 15" – 28"
• Clamping outer rim diameter: 13" – 26"
• Maximum wheel diameter: 1200 mm
• Maximum wheel width: 3" – 15" | 76 – 380 mm
• Bead breaker force: 2700 kg (27000 N)
• Operating pressure: 8 – 10 bar
• Two-speed mounting operation
• Electric motor power: 1 kW
• Power supply: 380 V / 50 Hz / 3-phase

Standard Accessories:

• Tire mounting paste bucket x 1 unit
• Tire mounting paste brush x 1 unit
• Plastic protector for mounting finger x 1 unit
• Plastic protector for bead breaker blade x 1 unit
• Plastic protectors for clamping jaws x 4 units
• Mounting lever x 1 unit

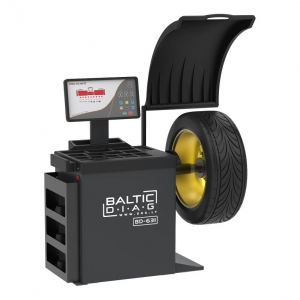

Automatic Wheel Balancing Machine BD-631

Features:

• Work area lighting – LED lighting facilitates work, making it easier to inspect the rim, clean it, and properly attach balancing weights.
• Laser marker – allows for quick and precise identification of the exact location where the balancing weight should be placed.
• Automatic wheel stopping – the machine automatically stops the wheel at the position where the balancing weight should be attached.
• Main wheel balancing shaft – 40 mm diameter shaft with longitudinal surface grinding and high-quality thermal treatment. The aluminum drive pulley is corrosion-resistant, ensuring safe and reliable use for years.
• 2D measuring ruler – made of aluminum alloy with highly precise measurement parameters, providing highly accurate measurement results. It also allows for automatic input of wheel diameter and distance.
• Control panel – equipped with an LED screen and dedicated buttons for entering required data and selecting the balancing program. Additional LED indicators display wheel imbalance parameters, results, and balancing positions.
• Side storage compartments – convenient for keeping various machine accessories easily accessible.
• Protective wheel cover – used to control the start and stop operations of the balancing machine.
• Balancing operations – includes all necessary balancing functions such as dynamic balancing, static balancing, three ALU rim balancing modes, and an adjustable OPT function.

Technical Specifications:

• Balancing rim diameter: 10" – 28"
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5" – 20" | 38 – 510 mm
• Rotation speed during balancing: 200 rpm
• Maximum wheel weight: 70 kg
• Balancing accuracy: ±1 g
• Electric motor power: 0.25 kW

Standard Accessories:

• Balancing cones of different sizes x 4 units
• Wheel width measuring ruler x 1 unit
• Quick-release clamping nut x 1 unit
• 100 g calibration weight x 1 unit
• Pliers for working with balancing weights x 1 unit
• Mounting adapter with spindle protection x 1 unit
