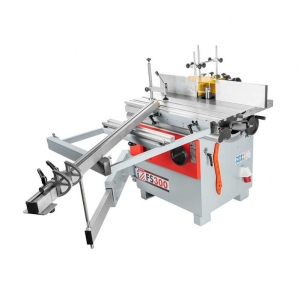

Spindle moulder Holzmann FS300

Spindle Moulder Holzmann FS300

Country of origin: Austria, warranty period - 24 months

The Holzmann FS300 is a professional spindle moulder with a robust design, equipped with a sliding and outrigger table, designed for precise woodworking tasks. The machine features four spindle speed settings, an adjustable spindle angle, and a high-quality protective hood with adjustable hold-down and fine fence adjustment. It is ideal for both complex shaping operations and serial production.

Features:

• Robust, high-quality construction

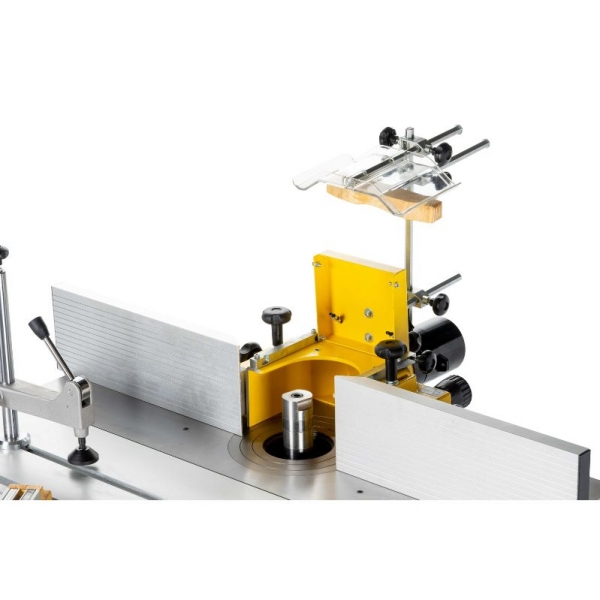

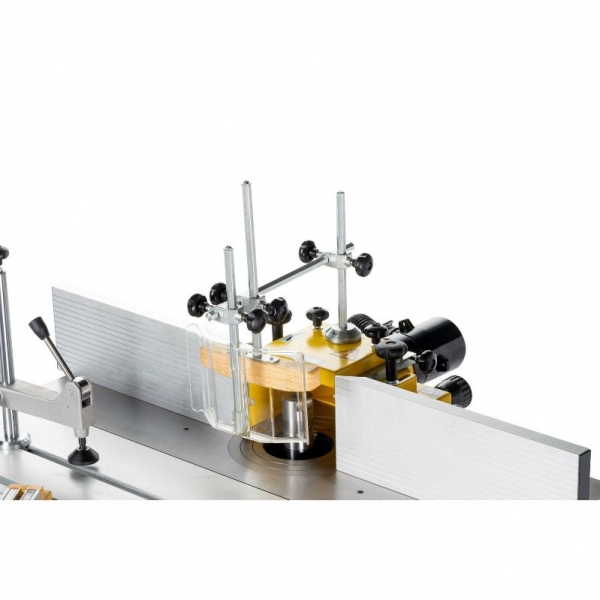

• High-grade protective hood with hold-down and fine fence adjustment
• Four spindle speed settings
• Spindle tilt adjustment via handwheel
• Dust extraction located below the sliding table
• Included: sliding table with outrigger table, cross-cut fence, and spindle moulder hood

Technical specifications:

• Motor power S1: 3000 W
• Motor power S6: 4000 W
• Voltage: 400 V / 3 / 50 Hz
• Table dimensions: 1000 x 350 mm
• Table height: 890 mm
• Sliding table dimensions: 1000 x 310 mm
• Dust extraction port: Ø 100 mm
• Spindle diameter: 30 mm
• Spindle speeds: 1400 / 3500 / 6000 / 8000 rpm
• Spindle stroke: 130 mm
• Max. milling diameter: 175 mm
• Spindle tilt: (-5)0–45°
• Max. clamping height: 140 mm
• Table opening: 178 mm
• Max. tool diameter below table: 170 mm (90°), 100 mm (45°)
• Max. tool diameter above table: 200 mm
• Mitre fence dimensions: 450 x 160 mm (left + right)
• Sound power level: 96.8 dB(A)
• Sound pressure level: 80.7 dB(A)
• Net weight: 280 kg
• Gross weight: 343.5 kg
• Packaging width: 1150 mm
• Packaging length: 900 mm
• Packaging height: 1078 mm
