FAM SILVER 7200 Spray Booth

FAM SILVER 7200 Paint Booth

Country of origin: Italy; warranty period: 24 months

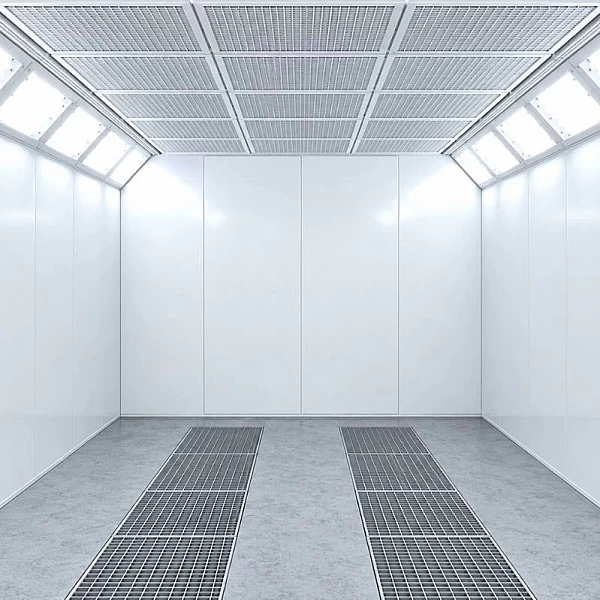

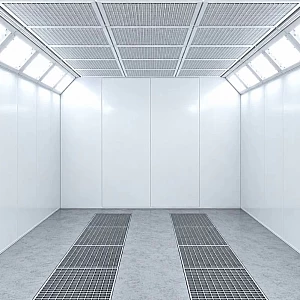

FAM SILVER 7200—a professional painting and drying booth designed for painting cars and other vehicles. An internal working space of 7200 × 4000 × 2800 mm, an airflow rate of 20,000 m³/h, and separate air supply and exhaust systems help ensure controlled air circulation during painting. A 200-kW two-stage RIELLO diesel burner allows temperatures of up to 60 °C to be reached during the drying process, while the ceiling filtration system and floor grates help remove particles generated during painting and maintain proper working conditions.

Technical specifications:

• Internal dimensions: 7200 × 4000 × 2800 mm
• Airflow: 20,000 m³/h
• Number of air supply units: 1
• Air supply unit dimensions: 1,400 × 1,200 × 2,250 mm
• Air supply motor: 1 × 7.5 kW
• Air supply filtration: white and blue primary filter
• Number of exhaust units: 1
• Air exhaust unit dimensions: 1150 × 1200 × 1000 mm
• Exhaust fan motor: 1 × 7.5 kW
• Drive system: belt drive
• Heating type: two-stage diesel burner
• Thermal output: 200 kW
• Burner manufacturer: RIELLO
• Painting temperature: 20 °C
• Drying temperature: 60 °C
• Temperature difference ΔT: 30 °C
• Supply voltage: 400 V, 3-phase + N, 50 Hz
• Required electrical power: 18 kW
• Rated current: 44 A
• Control system: electromechanical control panel
• Noise level: <80 dB(A) at maximum ventilation
• Cooling and humidity control system: not included
• Front door type: folding, manually operated
• Front door dimensions: 3000 × 2750 mm
• Number of door segments: 3
• Glass dimensions: 615 × 1695 mm
• Number of floor grates: 12
• Grating layout: 2 rows of 6
• Load capacity per grate: 680 kg per wheel
• Insulation of modular walls: 50 mm polyurethane foam
• Filtration plenum height: 500 mm
• Number of top LED lights: 12, arranged in 6 + 6
• Power of a single LED light: 4 × 10 W

The FAM SILVER 7200 is a professional solution for auto repair shops and paint shops that require a large workspace, controlled ventilation, and an efficient drying system for painted surfaces. An airflow of 20,000 m³/h, a 200 kW RIELLO heating system, efficient filtration, and a robust modular design ensure high-performance, reliable operation tailored for long-term professional use.
