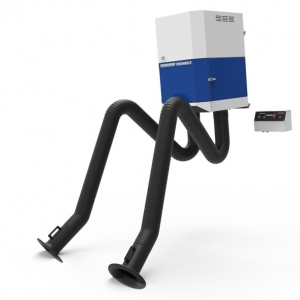

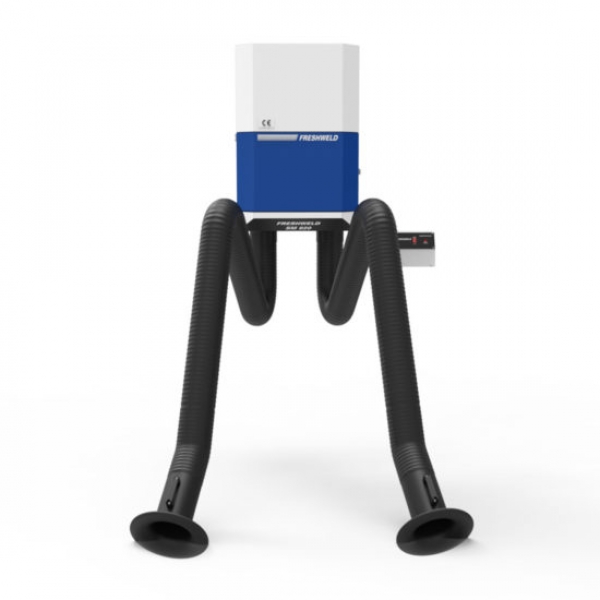

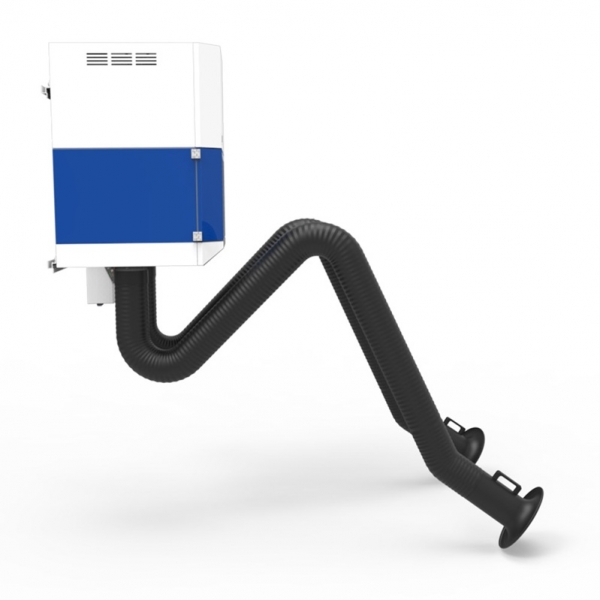

Stationary fume extraction unit with disposable filter SM/920 FRESHWELD

Stationary Fume Extraction Unit with Disposable Filter SM/920 FRESHWELD

Country of origin: Turkey, warranty period – 24 months

The SM/920 is a stationary fume and fine dust extraction unit designed for use with a disposable cartridge filter and two flexible extraction arms. This unit is ideal for workshops with limited space and is suitable for welding applications and working with mild or slightly alloyed steel. Its compact design allows for efficient filtration of low to medium intensity fumes and dust, ensuring a clean and safe working environment. Filter contamination indicators help minimize unnecessary maintenance downtime, while the external control panel ensures easy access and operation.

Features:

• Compact design – perfect for small workshops
• Dual flexible acrobatic extraction arms provide access to the required work area
• Compliant with European Machinery Safety Regulations
• Filter contamination indicators – maintenance only when necessary
• Aluminum spark arrestor reduces fire risk
• Protection against incorrect phase sequence or missing phase – the unit will not start
• Warning lamp activates if the fan rotates in the wrong direction
• External control panel for convenient operation

Technical Specifications:

• Filter: disposable cartridge type, F9 class (ePM1 90%)
• Airflow rate: 1000–2200 m³/h (depending on arm length)
• Motor power: 1.5 kW
• Filtration stages: G2 mesh, G4 coarse filter, F9 filter – total 25 m²
• Noise level: 72 dB
• Extraction arms: dual, flexible, available in lengths up to 4 m
• Power supply: 3x400V / 50Hz
• Dimensions (W x D x H): 650 x 750 x 1125 mm
• Weight: from 119 kg (depending on arm length)
• Application:
• Designed for the removal of welding fumes, fine dust, and toxic gases generated during the processing of unalloyed and low-alloy steel.
