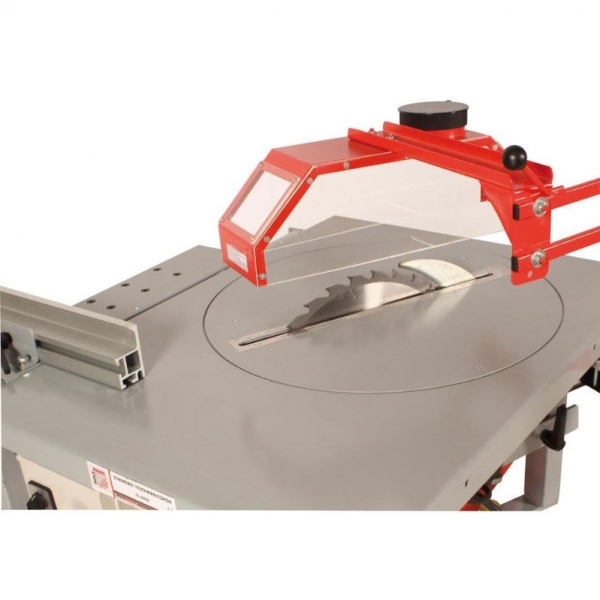

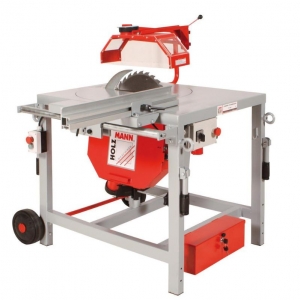

Table saw for carpenters Holzmann TS400Z_400V

Table Saw for Carpenters Holzmann TS400Z_400V

Country of origin: Austria, warranty period - 24 months

The Holzmann TS400Z_400V is a robust table saw designed for carpenter workshops. This saw allows for various types of cuts: straight, mitre, bevel, and compound. With an adjustable saw blade angle and user-friendly design, it is ideal for cutting gutters, wedge planks, grooves, and rabbets. A dust extraction system can be connected either at the saw unit or the blade guide, ensuring clean working conditions.

Features:

• Sturdy and stable saw unit ideal for carpentry workshops
• Rotatable table up to 90° and saw blade adjustable up to 45°
• Suitable for cutting gutters, wedge planks, grooves, and rabbets
• Option to connect dust extractor at the saw unit or blade guide
• Compatible with optional infeed and outfeed roller stands for handling large workpieces
• Standard transport wheels ensure mobility
• Integrated tool storage box

Technical specifications:

• Motor power S6: 4200 W
• Motor power S1: 2800 W
• Voltage: 400 V
• Overall dimensions: 1350 x 1100 x 1180 mm
• Table dimensions: 715 x 945 mm
• Table height: 845 mm
• Dust extraction ports: 2 x 100 mm
• Max. cutting height at 90°: 120 mm
• Max. cutting height at 45°: 90 mm
• Saw blade diameter: 400 mm
• Saw blade speed: 2800 rpm
• Saw blade tilt: 0°–45°
• Net weight: 130 kg
• Gross weight: 162.5 kg
• Packaging height: 970 mm
• Packaging width: 910 mm
• Packaging length: 1100 mm
