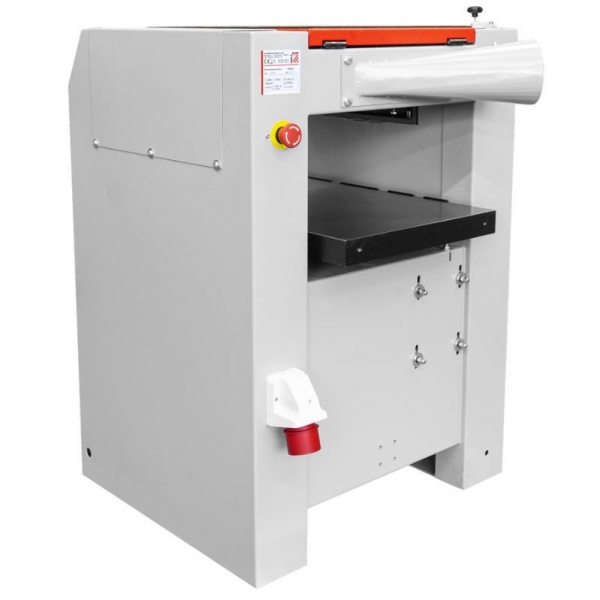

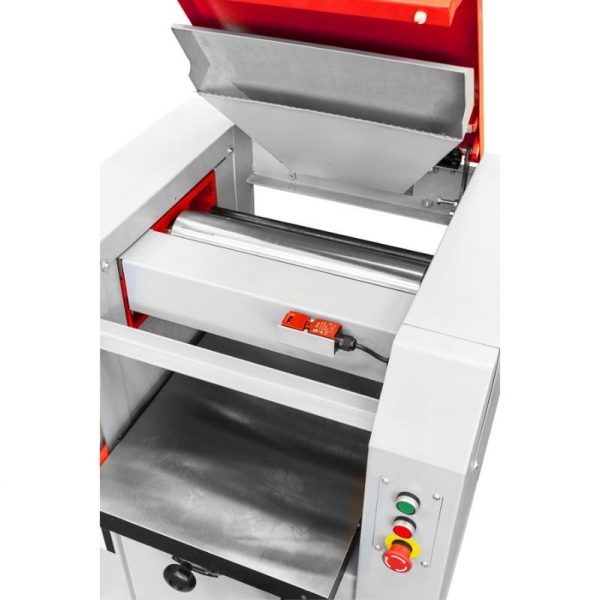

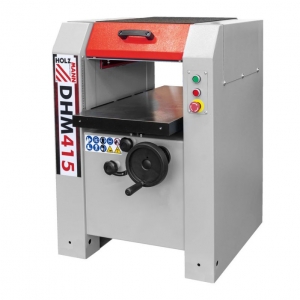

Thickness planer Holzmann DHM415_400V

Thickness planer Holzmann DHM415_400V

Country of origin: Austria, warranty period - 24 months

The Holzmann DHM415_400V thickness planer is an ergonomic, reliable, and high-performance machine system designed for professional planing of boards and beams. The equipment features a powerful chain feed mechanism, a precise three-knife cutter block, and a ground table that reduces friction and ensures smooth material feed. It is ideal for both woodworking shops and industrial use.

Functions:

• Ground thicknessing table – reduced friction
• Workpiece height adjustment via handwheel

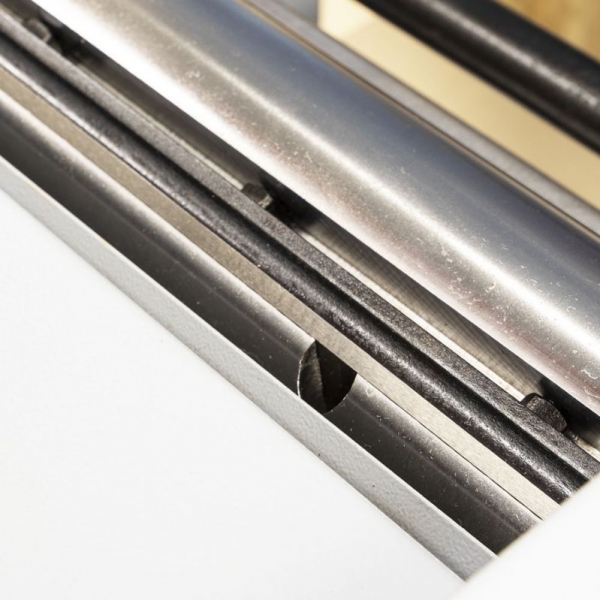

• Precisely mounted 3-knife cutter block – high-quality processing
• Powerful chain feed mechanism
• Dust extraction port diameter: 120 mm
• Modern and ergonomic design
• Maximum thicknessing width: 405 mm
• Included: mounted knives (410 x 3 x 30 mm), knife setting gauge

Technical specifications:

• Voltage: 400 V / 3-phase / 50 Hz
• Feed speed: 6.5 m/min
• Motor power (S6): 4000 W
• Dust extraction port diameter: 120 mm
• Overall dimensions: 985 x 968 x 955 mm
• Table dimensions: 750 x 408 mm
• Maximum cutting depth: 5 mm
• Maximum thicknessing height: 220 mm
• Cutter block diameter: 95 mm
• Cutter block speed: 4200 rpm
• Number of knives: 3
• Sound power level: 108 dB(A)
• Sound pressure level: 100.1 dB(A)
• Net weight: 233 kg
• Gross weight: 272 kg
• Packaging dimensions: 815 x 740 x 1140 mm (L x W x H)
