Three phase battery charger GYSFLASH 158.12 CNT FV

Three-Phase Battery Charger GYSFLASH 158.12 CNT FV

Country of Origin: France, warranty period - 24 months

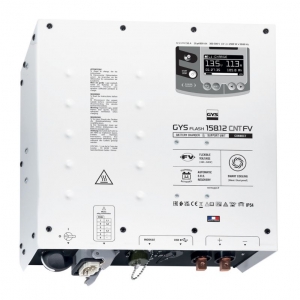

The GYSFLASH 158.12 CNT FV is a high-power three-phase battery charger, designed for industrial applications, particularly automotive manufacturing lines and integrated systems. It provides a maximum charging current of up to 150 A and a continuous current of 120 A, enabling the efficient charging of 12V lead-acid and lithium batteries.

This device complies with IP54 protection standards, making it resistant to dust and water splashes, while its natural convection cooling system ensures long-term operation without the need for an additional fan.

Functions:

Design for Industrial Integration:

• Three-phase charger with Flanksis® voltage technology, operating in a 320–520 V power network
• IP54 protection class – resistant to dust and water exposure

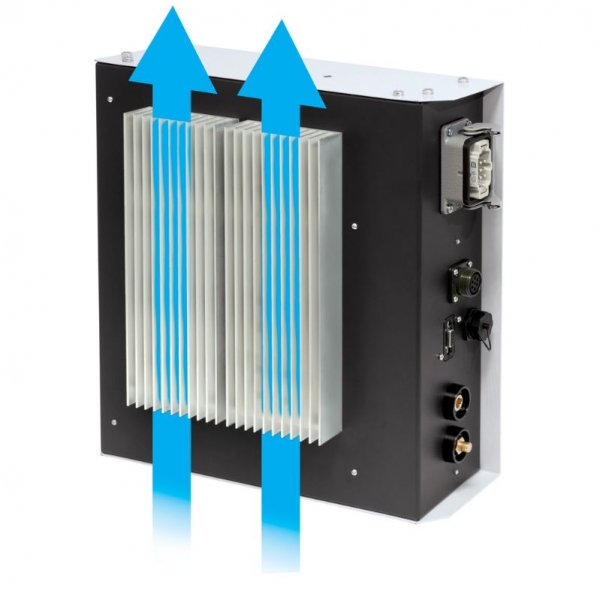

• Natural convection cooling – durability and reliability without an additional fan

Two operating modes based on usage:

• 12V mode: For lead-acid batteries (from 20 Ah to 1800 Ah)
• For lithium batteries (LFP): From 20 Ah to 800 Ah
• Adjustable charging current: From 2 A to 150 A

Smart Connections & Internet-Based Control:

USB connection, used for:

• Firmware updates
• Importing pre-configured charging curves
• Creating and modifying custom profiles
• Retrieving charging data for analysis
• Smart Module Connection (SMC): Allows integration of CNT modules (buttons, barcode scanners, indicator lights) into production lines
• Auxiliary connection – enables remote control of the charger using a dry contact relay

Automatic Charging:

• 8-step charging curve for lead-acid batteries
• 9-step charging curve for lithium iron phosphate (LFP) batteries

Advanced Technologies & Features:

• Automatic detection function – starts charging immediately upon battery connection
• Automatic startup function – retains charging settings in case of power failure
• Battery condition testing function – enables battery diagnostics
• UVP Wake-Up function – allows the revival of deeply discharged lithium batteries

Safety Features:

• Protection against short circuits, reverse polarity, and overvoltage
• Anti-spark protection
• Temperature sensor prevents overheating

Technical Specifications:

• Input voltage: 320-520 V AC (three-phase)
• Power: 2500 W
• Maximum charging current: 150 A
• Charging voltage: 12 V
• Battery capacity: 20-1800 Ah
• Voltage stability: <0.2 Ah/month
• Ripple (voltage fluctuations): <150 mV RMS
• Charging curves: 8-step (Pb) / 9-step (LFP)
• Maximum current at 40°C: 115 A
• Maximum current at 25°C: 120 A
• Dimensions: 376 x 145 x 380 mm
• Weight: 10 kg
• Protection class: IP54
• Initial current limit: Automatic >1V
• Maximum startup current: 175 A
