Tilting lift table trolley 150 kg HanseLifter NHT150

New

HanseLifter NHT150 Tilting Lifting Table, 150 kg

Based on 0 reviews. - Write a review

SKU: BD71680
SKU:: GE0023794

939.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

HanseLifter NHT150 Tilting Lifting Table, 150 kg

Country of origin: Germany; warranty period: 24 months

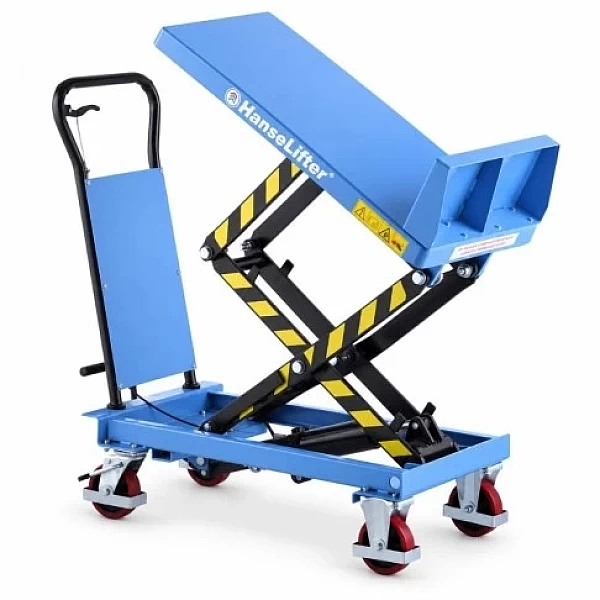

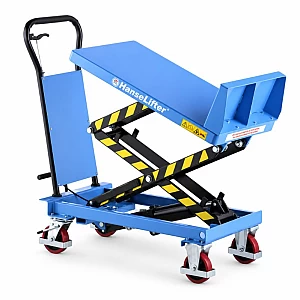

The HanseLifter NHT150 is a professional, mobile tilting lift table designed for convenient lifting, transporting, and working at an ergonomic height in warehouses, production facilities, workshops, logistics centers, and industrial facilities. With a lifting capacity of 150 kg, it reliably transports boxes, tools, manufacturing components, and other loads, while the 415–880 mm lifting range allows the platform height to be adjusted according to the task at hand. A unique advantage of this model is the platform, which can be tilted at an angle of up to 45°, allowing for easier access to parts and materials stored in transport boxes and containers. When the platform is tilted, its upper edge can reach a height of up to 1,400 mm. The double-scissor design ensures stable lifting and tilting, while the foot-operated hydraulic pump and the lowering lever integrated into the control handle allow for precise control of the load’s position. The sturdy steel construction, durable polyurethane casters, and integrated parking brake ensure convenient and efficient daily use.

Technical Specifications:

Lifting capacity: 150 kg
Drive type: manual
Lifting mechanism: hydraulic scissor lift
Scissor design type: double
Lifting control: foot pedal
Lowering control: lever on the control handle
Lifting range: 415–880 mm
Maximum platform height in horizontal position: 880 mm
Minimum platform height: 415 mm
Platform lift stroke: 465 mm
Maximum height of the top edge of the platform when tilted: 1,400 mm
Maximum platform tilt angle: 45°
Platform length: 748 mm
Platform width: 500 mm
Platform safety rail: included
Handle height: 1100 mm
Wheelbase: 756 mm
Front wheel size: 125 × 42 mm
Rear wheel size: 125 × 42 mm
Number of wheels, front/rear: 2 / 2
Front track width: 392 mm
Rear track width: 386 mm
Wheel material: polyurethane (PU)
Braking system: mechanical parking brake
Brake location: right-hand steering wheel
Frame material: steel
Surface finish: powder coating
Control: manual hydraulic
Delivery: partially assembled

The HanseLifter NHT150 150 kg is the right choice for companies that need a reliable, ergonomic, and user-friendly tilting lift table designed for efficient material handling. The double-scissor design, a lifting range of 415–880 mm, and the ability to tilt the platform up to a 45° angle allow for more efficient part picking, order picking, packing, and assembly tasks. The adjustable platform height and tilt function help reduce physical strain on employees and make repetitive tasks easier. The sturdy steel construction, durable polyurethane casters, and convenient hydraulic controls ensure stable, efficient, and long-lasting use in warehousing, manufacturing, and industrial settings.

Manual Lifting, Transporting, and Tilting of Cargo
A lifting capacity of 150 kg allows for the lifting and transport of various warehouse, retail, and industrial loads
The lifting range from 415 to 880 mm allows the platform height to be adjusted to suit work requirements
The integrated tilting function allows the platform to be tilted up to a 45° angle
The tilting mechanism facilitates the removal of parts, components, and other materials from transport boxes and containers
When the platform is tilted, its upper edge can reach a height of up to 1,400 mm
The combination of lifting and tilting functions makes it easier to reach parts at the bottom of boxes and reduces the need for employees to bend over
The double-scissor lifting mechanism ensures stable and smooth platform lifting
The foot-operated hydraulic pump allows for convenient lifting of the load without using your hands
The high-quality hydraulic pump is designed for reliable daily use
The lowering lever integrated into the control handle allows for precise control of the platform’s descent
Smooth lowering helps position delicate loads more safely and precisely
The 748 x 500 mm platform is suitable for transport crates, tools, manufacturing parts, and other components
The platform’s safety rail helps keep the load secure during tilting
Adjustable platform height and tilt angle help adapt the workstation to different manufacturing and assembly processes
An ergonomic control handle makes it easy to push and maneuver the lifting table
The 1100 mm-high control handle ensures convenient transport of the table
The sturdy steel construction is designed for intensive daily use
The double-scissor design ensures platform stability when lifting and tilting loads
The high-quality powder-coated finish helps protect the structure from corrosion and mechanical damage
Polyurethane casters feature quiet rolling, wear resistance, and are suitable for smooth industrial floors
Swivel casters facilitate maneuvering the lift table in warehouses and production facilities
A parking brake on the right-hand steering wheel helps prevent the table from moving unintentionally during loading and unloading
The compact design is suitable for use in narrow warehouse aisles and confined spaces
The mobile tilting lift table can be used as an ergonomic work platform for assembly, packaging, and order-picking tasks
The manual hydraulic mechanism requires no electricity or battery charging
Suitable for use in warehouses, production lines, workshops, retail locations, and logistics centers

Length: 1010 mm
Width: 500 mm
Height: 1,100 mm
Weight: 92 kg

HanseLifter NHT150 x 1 Tilting Lifting Table
Integrated tilting load platform with safety rail x 1
Dual hydraulic scissor lift mechanism x 1
Foot-operated lift pedal x 1
Control handle with lowering lever x 1
Set of polyurethane casters x 1
Integrated parking brake x 1
