Tire Conveyor Martins Industries TC-15-E

Tire Conveyor Martins Industries TC-15-E

Manufacturer: Martins Industries (Canada), warranty period – 24 months

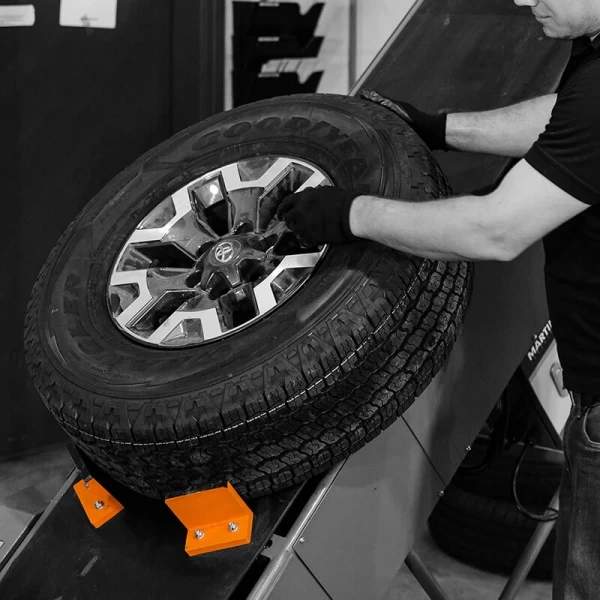

Electric tire conveyor designed for transporting passenger car and truck tires between higher or lower levels at an incline of up to 60°. The unit features control panels at both ends and a steel anchor plate for added stability. Easy to install and connects to a 230 V power supply.

Technical specifications:

• Dimensions: 4572 x 533 x 280 mm
• Width: 533 mm
• Conveyor speed: ~12 tires/min or 17.7 m/min
• Load capacity: 230 kg
• Belt: 457 x 9.5 mm, 2-ply (8 mm)
• Motor: 1 HP
• Power supply: 230 V / single-phase / 50 Hz / 7 A / 750 W

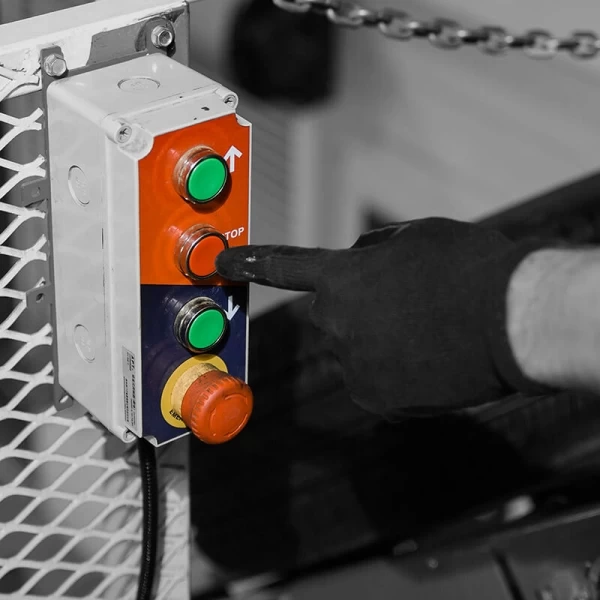

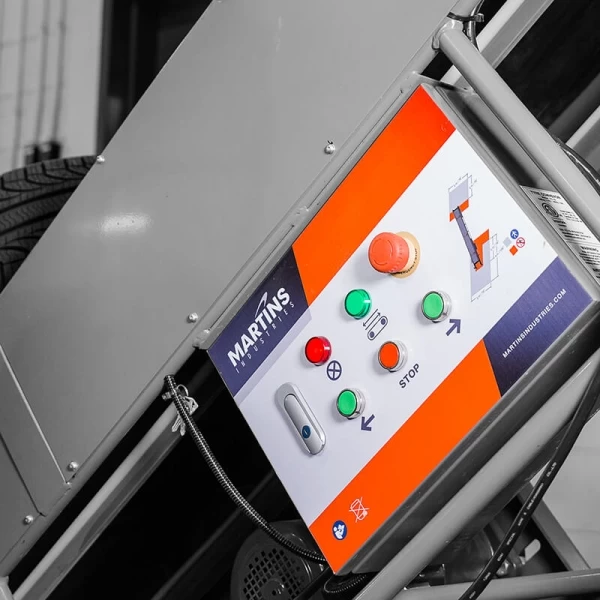

• Controls: on/off, forward/reverse (both ends)
• Weight: 341 kg
• Color: orange, powder-coated
