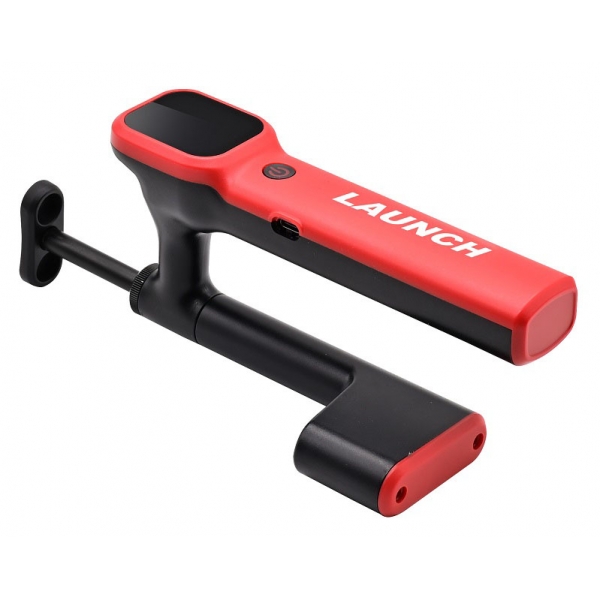

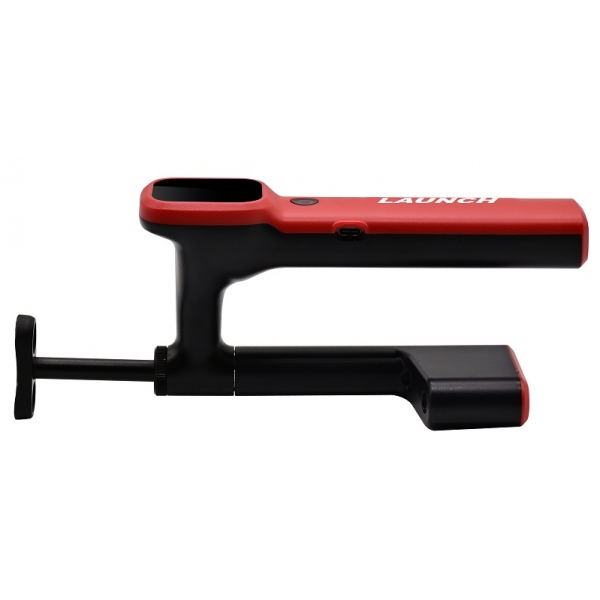

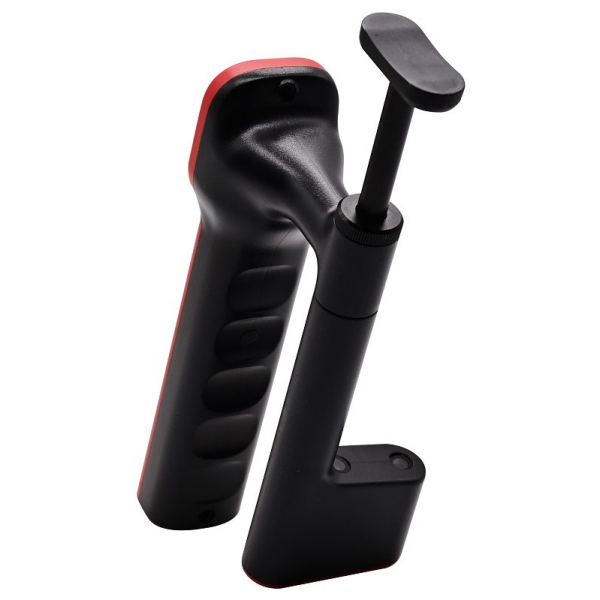

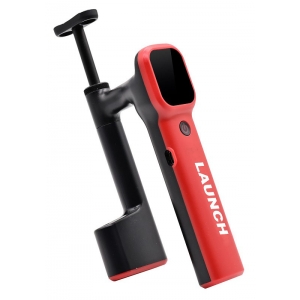

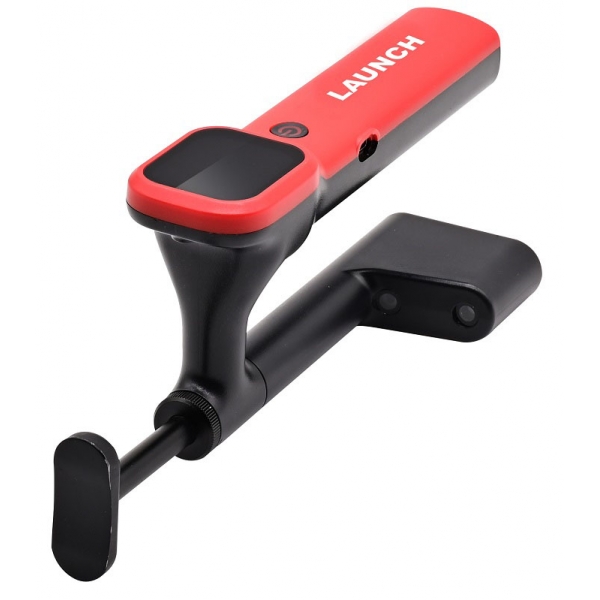

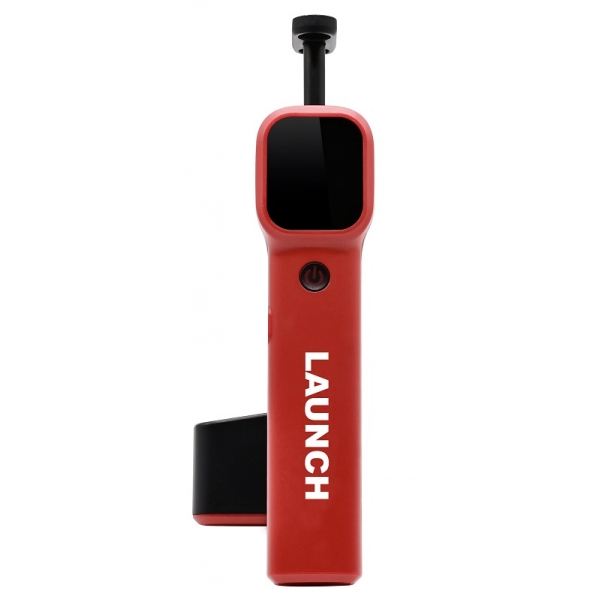

Launch TTM113 tyre tread depth measuring device

Launch TTM113 tyre tread depth measuring device

Manufacturer: Launch, 24 months warranty

The Launch TTM113 is an advanced hand-held tyre tread depth measuring device for fast, accurate and comprehensive tyre condition assessment. It scans the entire tread in just 3 seconds and provides measurement results to an accuracy of 0.1 mm. Thanks to the integrated 1.7" LCD touchscreen, the user can view measurements, wear analysis and get detailed tyre maintenance or replacement recommendations in real time. The TTM113 allows measurements to be taken without moving the wheel or lifting the vehicle, making it ideal for professional workshops and mobile maintenance services.

Features:

• Laser measurement with 0.1 mm accuracy
• Full tyre tread scan in 3 seconds
• Measurement without removing the wheel
• Visualisation and analysis on the LCD display
• Detects uneven, uneven or abnormal tyre wear
• Provides recommendations for tyre replacement or repair
• Data transmission via Wi-Fi, generation of QR codes for sharing results
• Convenient reports on tyre condition and wear

Technical specifications:

• Measuring accuracy: 0.1 mm
• Laser width: 180 mm
• Battery capacity: 3000 mAh
• Charging port: USB Type-C
• Processor: ARM Cortex A53
• Power supply: 5 V / 1 A
• RAM / ROM: 2 GB / 8 GB
• Display: 1.7", 240x280 pixels, touchscreen
• Operating temperature: 0 ~ 45 °C
• Storage temperature: -20 ~ 60 °C
• Camera: 2 MP, 30 fps
• Wi-Fi: 2.4 GHz
• Dimensions: 224 × 97 × 70 mm
• Weight: 0,9 kg
