Two column lifter ATH Matrix 2.65

Two-post lift ATH Matrix 2.65

Country of origin: Germany, warranty period – 24 months

Powerful professional electrohydraulic two-post lift with advanced synchronization and safety features. Designed for intensive use in workshops, it allows safe and precise lifting of vehicles up to 6500 kg. The special hydro-synchronization system does not use any synchronization cables, while electronic synchronization and electromagnetic safety locks ensure maximum safety during operation.

Functions:

• Electrohydraulic lifting with fast raising and automatically adjusted lowering speed depending on load
• Stepless hydro-synchronization system without synchronization cables
• Electronic synchronization control
• Electromagnetic safety locks
• Four roller bearings for optimal load distribution

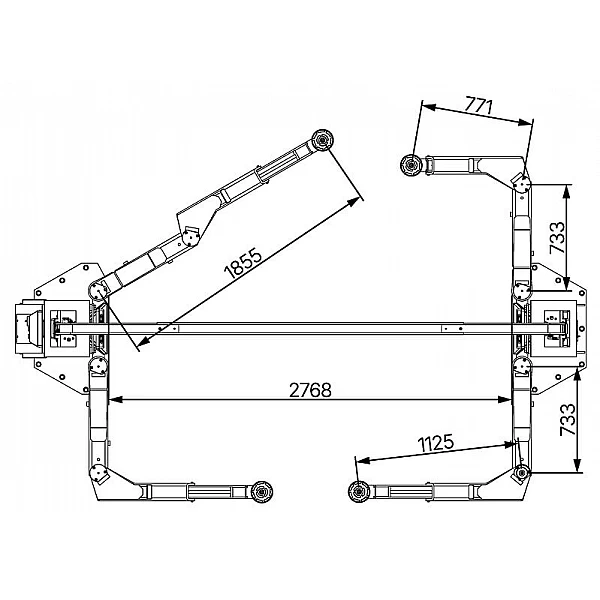

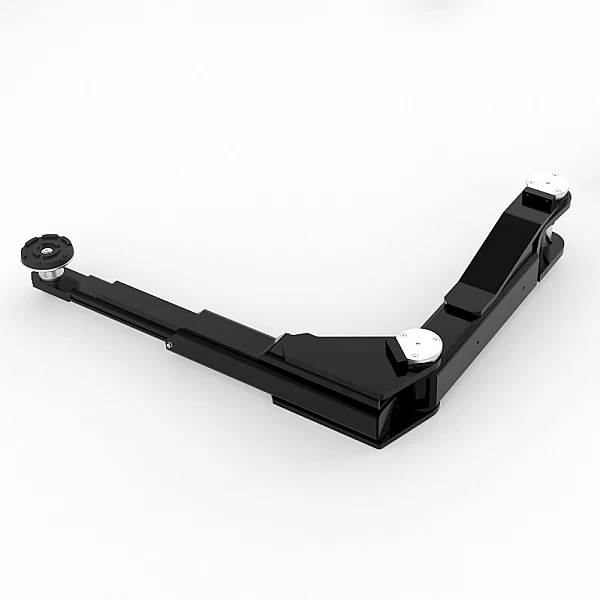

• Double articulated telescopic arms with multifunctional adjustment
• Robust lifting carriage construction

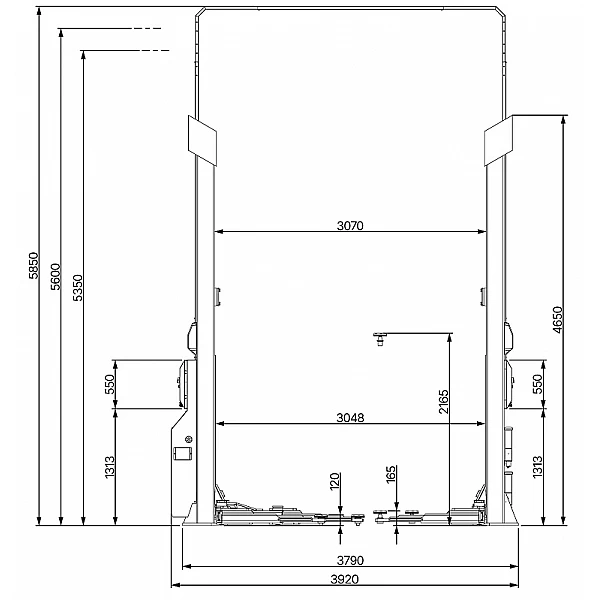

Technical specifications:

• Lifting capacity: 6500 kg
• Maximum lifting height: 2165 mm
• Drive-through width: 2800 mm
• Total width: 3920 mm
• Total height: 5850 mm
• Support arms: 3
• Motor power: 3 kW
• Lifting / lowering time: ~50 s
• Power supply: 400 V / 50 Hz / 3 phases / C16A
• Required concrete strength: min. C25 / 30
• Required concrete foundation dimensions: 6000 x 4000 x 250 mm
