Two post lift for minibuses, 5T BD-5000VM

Two-post van lift with top synchronization, 5T BD-5000VM

Warranty period – 24 months

Professional two-post lift designed for lifting vans and other larger vehicles. Synchronization is done over the top beam, and the robust design with self-lubricating sliders and brass bushings ensures long service life and low maintenance. Reinforced arm carriage and double safety unlocking mechanism provide additional safety during operation.

Functions:

• Top synchronization
• Compact design with reduced wear
• Hydraulic cylinders according to ANSI standards
• UHMW polyethylene sliders and brass bushings

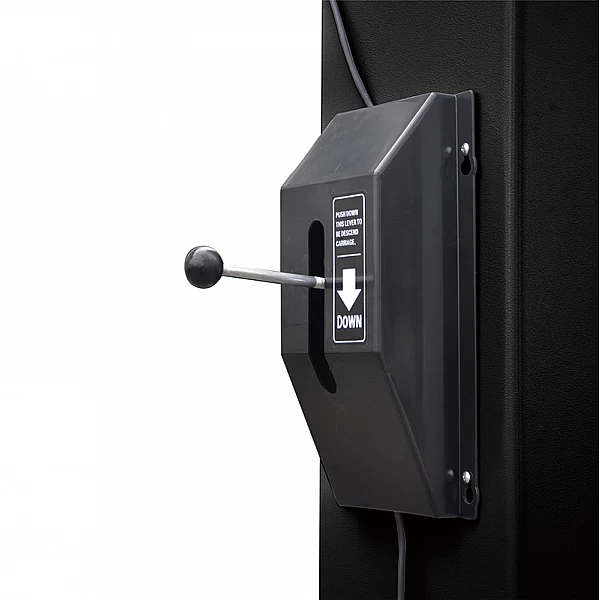

• Double safety unlocking mechanism

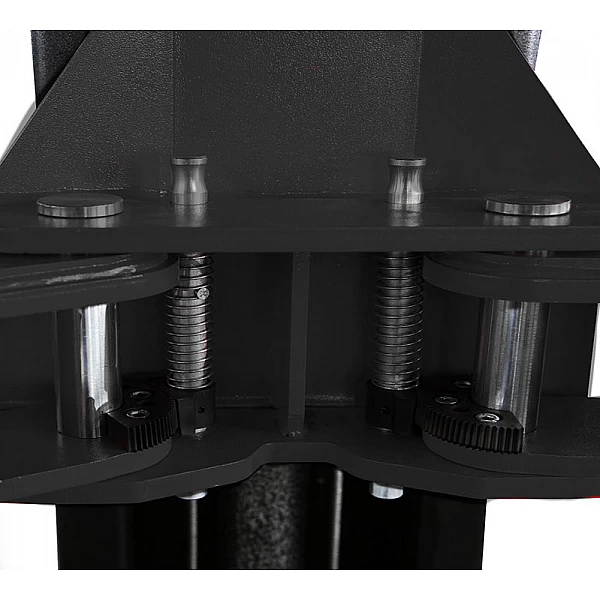

• Reinforced arm carriage
• Manual arm unlocking on one side
• CE certified

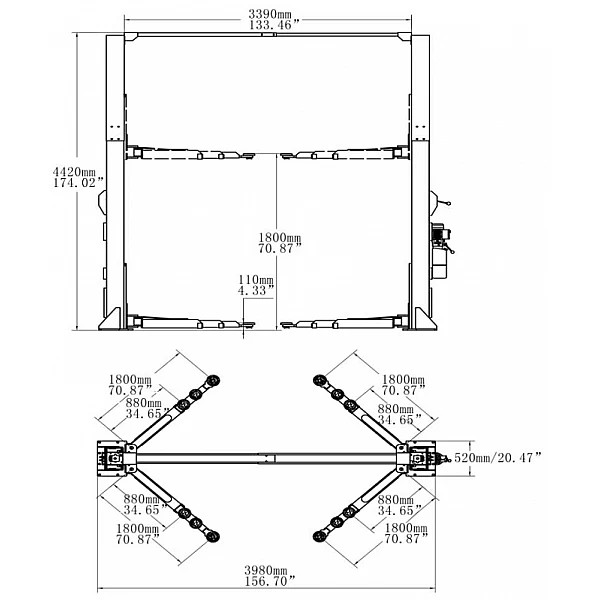

Technical specifications:

• Lifting capacity: 5000 kg
• Lifting time: 60–65 s
• Lifting height: 1800 mm
• Total width: 3980 mm
• Total height: 4420 mm
• Distance between columns: 3390 mm
• Maximum vehicle width: 3050 mm
• Minimum pad height: 110 mm
• Lift weight: 916 kg

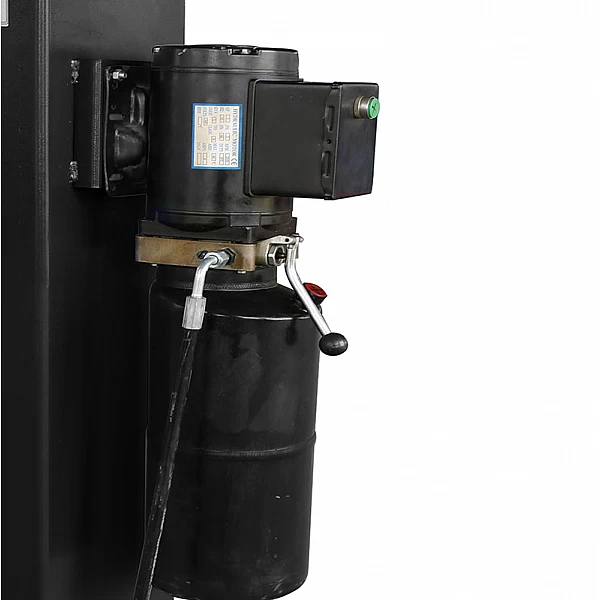

• Motor power: 3 kW
• Power supply: 380 V / 50 Hz / 3 phases
• Color code: RAL7021

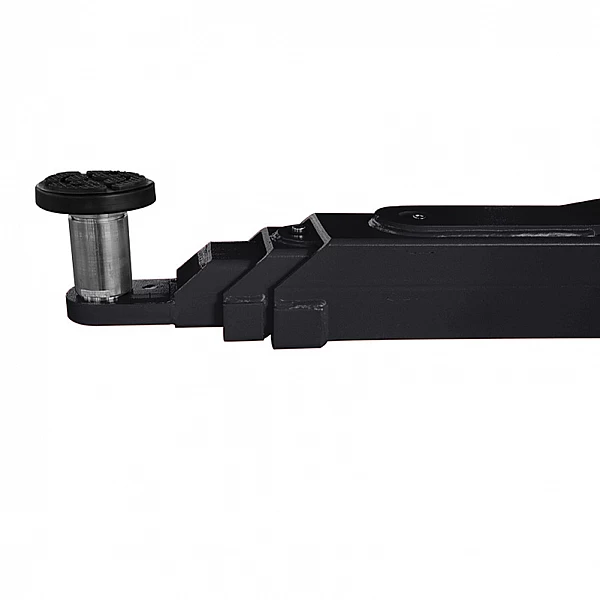

• 3-stage arm length: 880–1800 mm
• Noise level: < 80 dB(A)
